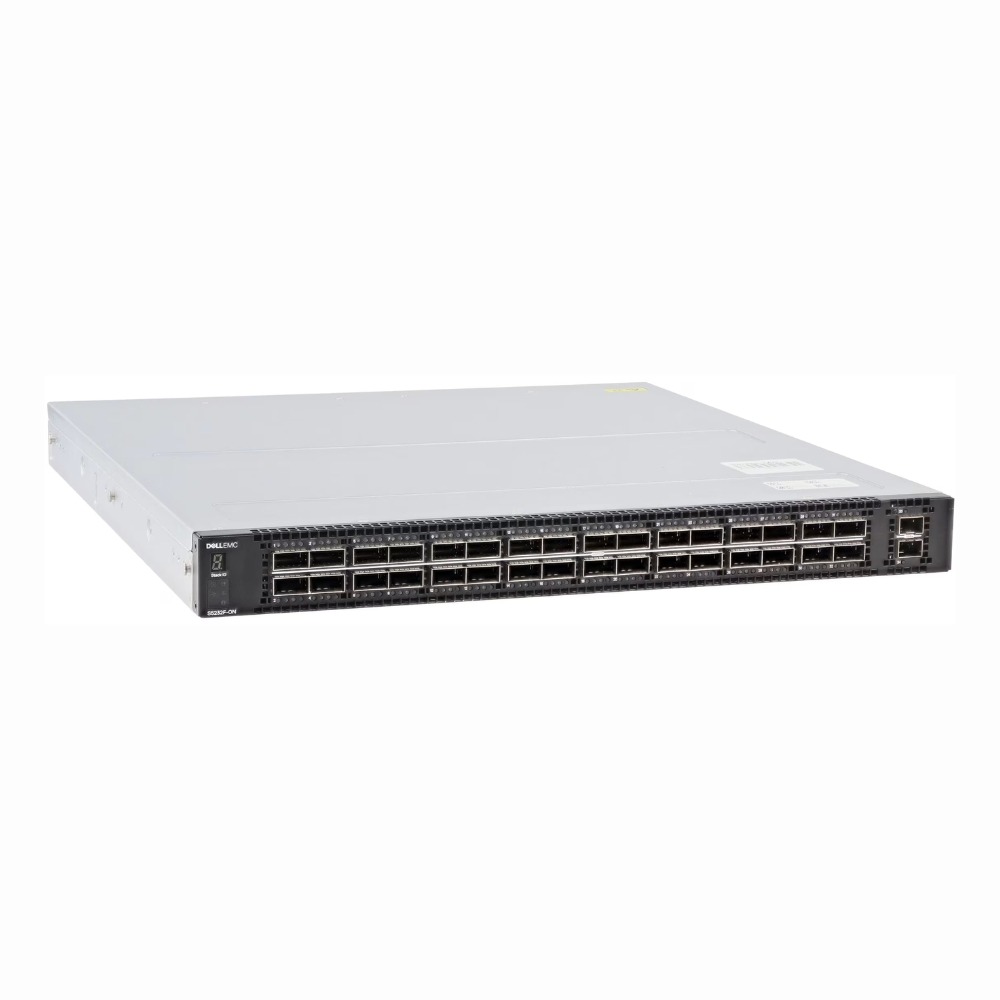

S5232F-ON

The Dell Networking S5232F-ON is a high-performance switch designed to meet the demands of modern data center environments. Featuring 32 x 100GbE QSFP28 ports and 2 x 10GbE SFP+ ports, this switch provides exceptional speed and connectivity for bandwidth-intensive applications. With a switching capacity of 3.2 Tbps and a forwarding rate of 2.4 billion packets per second (BPPS), it efficiently handles large volumes of data traffic.

Security is a top priority, with features that include VLANs, Quality of Service (QoS), Access Control Lists (ACLs), and support for RADIUS and TACACS+ authentication. The switch is equipped with 16GB of DRAM and 64GB SSD flash memory, providing ample resources for efficient operation and management.

The S5232F-ON supports various routing protocols such as OSPF, BGP, and VRF, making it suitable for diverse networking environments. With the ability to support up to 4,000 VLANs, it offers robust segmentation and management of network traffic.

Key Features:

• Switch Ports: 32 x 100GbE QSFP28 ports and 2 x 10GbE SFP+ ports for flexible connectivity.
• Switching Capacity: 3.2 Tbps, enabling efficient data processing.
• Switch Forwarding Rate: 2.4 BPPS for high-speed data handling.
• IPv4 Routing Entries: Supports up to 128K entries for scalable networking.
• IPv6 Routing Entries: Supports up to 64K entries, enhancing flexibility.
• Switch Jumbo Frame: Handles frames up to 9216 bytes for improved data transfers.
• Security Features: Includes VLANs, QoS, ACLs, and RADIUS/TACACS+ support.
• DRAM: 16GB for efficient data management.
• Switch Flash Memory: 64GB SSD for reliable storage.
• Switch Routing Protocol: Supports OSPF, BGP, and VRF for versatile routing options.
• Switch MAC Address: Supports advanced networking configurations.
• VLAN IDs: Manages up to 4,000 VLANs for effective traffic segmentation.
• Switch Power: Maximum consumption of 635W; typical consumption of 360W for energy efficiency.
• Fans: Hot-swappable, redundant fans ensure continuous operation.
• Connector Type: QSFP28 for 100GbE ports; SFP+ for 10GbE ports.

The Dell Networking S5232F-ON switch is an excellent solution for organizations seeking high-speed connectivity, robust performance, and advanced security features in their networking infrastructure.
