| Product Overview |
|---|

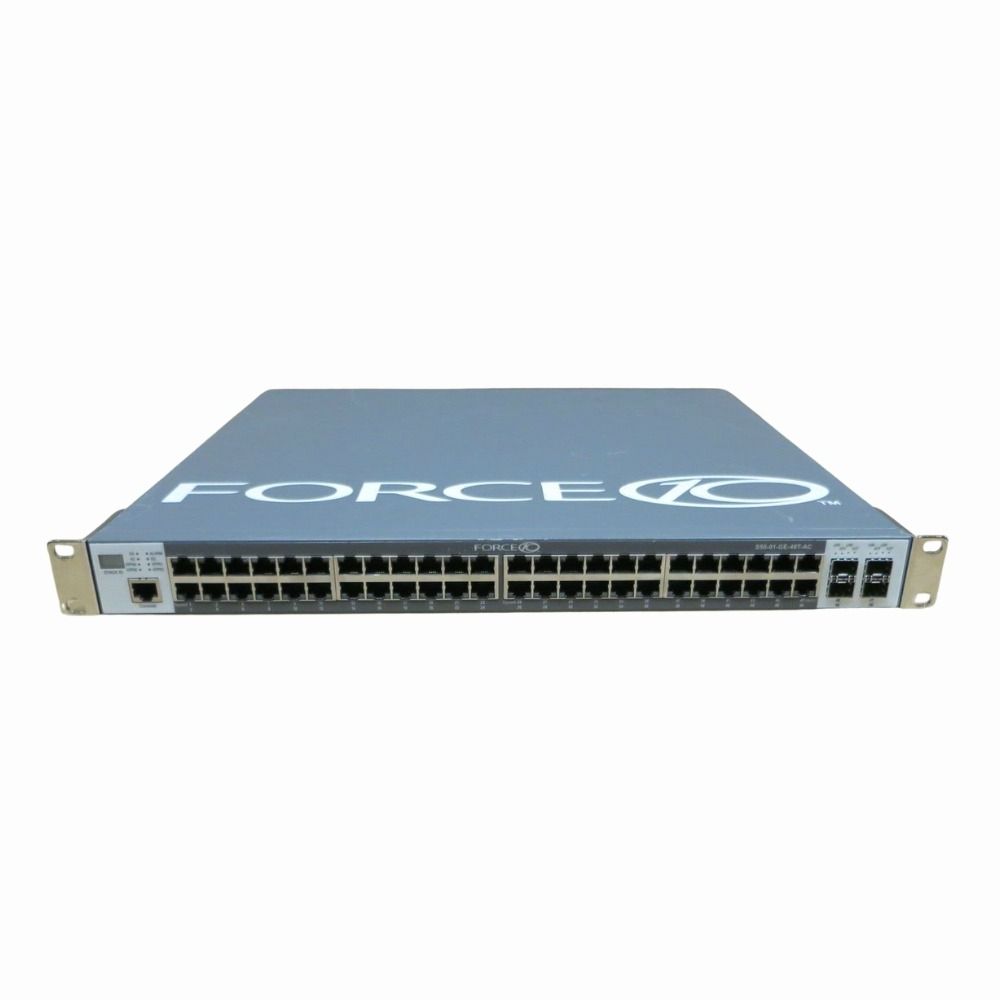

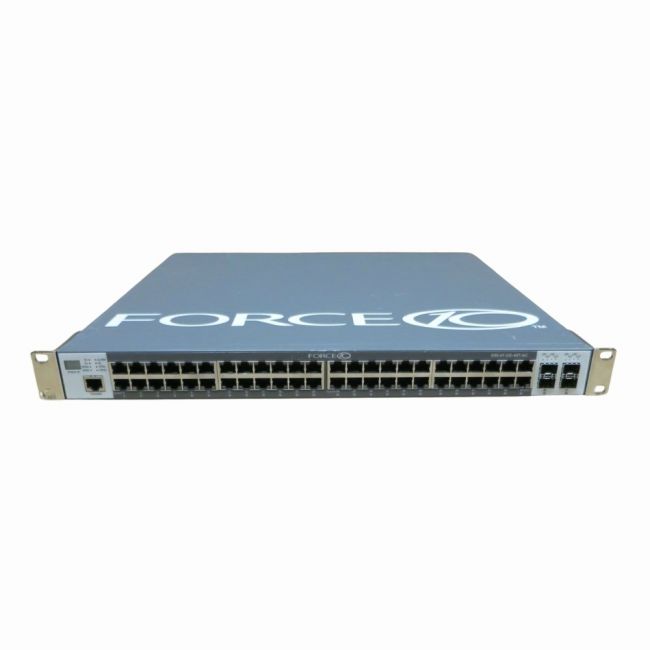

The Force 10 Networks S50-01-GE-48T-AC combines a high port count and Layer-3 routing in one data center switch. It's designed to connect many devices at gigabit speeds while providing routing functions that help manage traffic within enterprise and data center networks. This makes it a practical choice for environments where both density and routing flexibility are required. |
| General Information | |
|---|---|
| Part Number | S50-01-GE-48T-AC |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48,4 |
| Number of Ports | 48-Ports |
| Port Speed | 10/100/1000Base-T,10 Gigabit (SFP+) |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 343.75 Mpps |
| Max VLANs Supported | 1-4094 |
| Connector Type | RJ45 (48), SFP+ (4) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Management Type | CLI,Web UI,SNMPv1/v2/v3,SSH,Telnet |
| Security | 802.1x,ACLs,RADIUS,TACACS+,DHCP Snooping,IP Source Guard |
| Remote Management Protocol | SNMP,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | OSPF,BGP,RIP,VRRP,IGMP,PIM |
| Power & Cooling | |
|---|---|
| Fans | 2 (hot-swappable) |
| Power Supply | AC |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1q, IEEE 802.1p, IEEE 802.3x |
| Product Description |
|---|
The Force 10 Networks S50-01-GE-48T-AC is a Layer-3 data center switch built to handle demanding network traffic with reliable performance. It is commonly used in data centers and enterprise networks where a solid mix of port density and routing features is needed. Often found in server rooms and network closets, this switch supports a full suite of routing protocols to help manage both internal and external traffic effectively. IT professionals and network engineers benefit from its balance of speed and routing functionality. Key Features
This switch is typically deployed in core or aggregation layers of data center networks, supporting virtualization and large scale server farms. Its routing capabilities contribute to efficient data flow, which is essential for maintaining smooth and stable operations in complex IT infrastructures. |
