Product Overview |
|---|

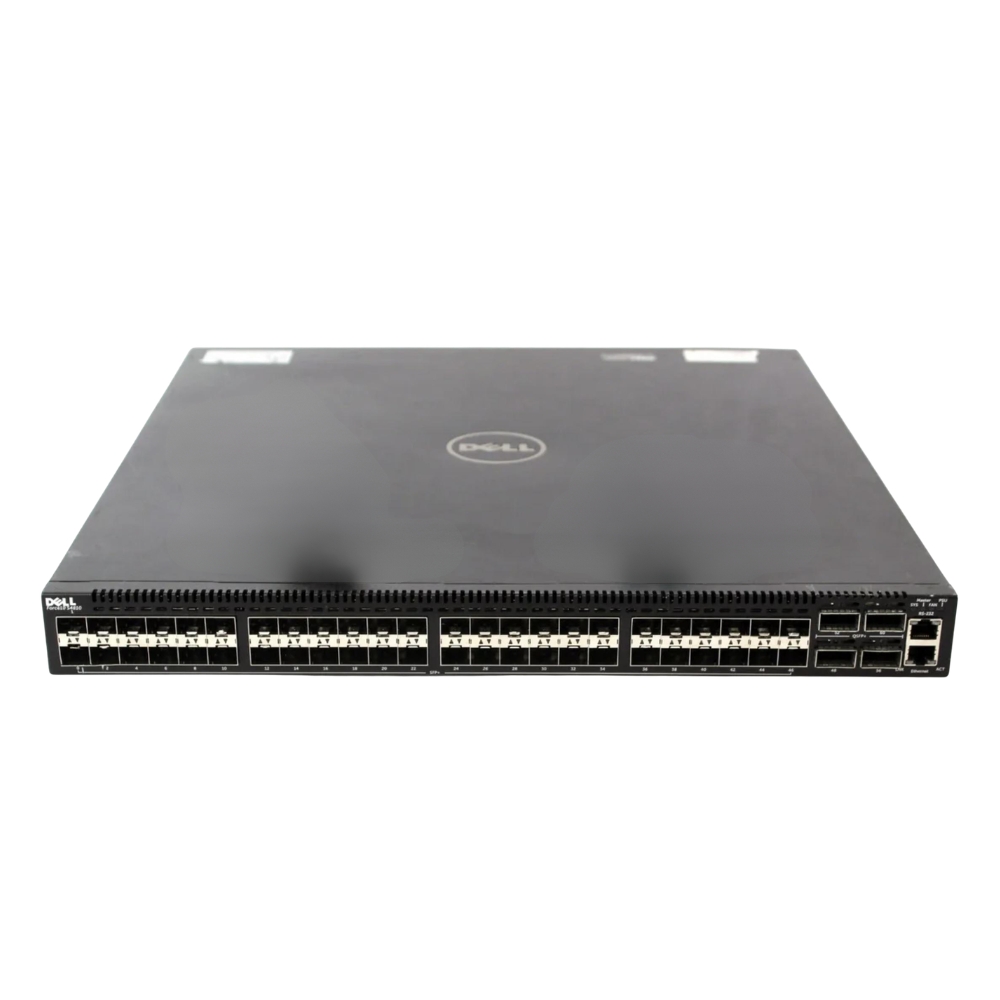

The S4810-ON switch offers high-density 10GbE port availability combined with 40GbE uplink capabilities, fitting well into data center racks and enterprise network layers. It balances port count and speed to meet the demands of growing network traffic and diverse connectivity needs. |
General Information |
|
|---|---|
| Brand | Dell |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 x 10GbE SFP+ ports, 4 x 40GbE QSFP+ ports |
| Number of Ports | 48-Ports |
| Port Type | 10G SFP+, 40G QSFP+, RJ-45, USB Console, Serial Console (RJ-45) |
| Port Speed | 10Gbps,40Gbps |
| UpLink Ports | 4 x 40GbE QSFP+ |
| POE Support | No |
| Switching Capacity | 1.28 Tbps (1280 Gbps) |
| Switch Forwarding Rate | 2,500 Mpps (64-byte packets, theoretical) |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Optional |
| Layer Support | Layer 3 |
| Connector Type | SFP+,QSFP+,RJ-45 (management),USB Console,Serial Console (RJ-45) |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | Console (RJ-45), USB Console, Out-of-band management (RJ-45), SSH, Web GUI, SNMP |
| Security Features | 802.1X, ACLs, SSH, SSL, RADIUS, TACACS+ |
| Management Type | CLI, Web GUI, SNMP, Out-of-band management |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMP |
| Routing Protocol | Static, RIP, OSPF, BGP, VRRP, PIM, IGMP |
Power & Cooling |
|
|---|---|
| Fans | Hot-swappable redundant fans (front-to-back) |
| Power | AC: 100-240 VAC (hot-pluggable redundant power supplies supported) |
| Power Supply | Hot-plug redundant AC power supply (field-replaceable) |
Physical Characteristics |
|
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
Miscellaneous |
|
|---|---|
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ae |
Product Description |
|---|
The S4810-ON is a network switch that delivers dense 10GbE connectivity alongside 40GbE uplink options, suitable for modern data centers and enterprise environments. It is often found in setups requiring robust throughput and flexibility across multiple network layers. Built for IT professionals and network architects, this switch supports scalable network designs and integrates seamlessly into existing infrastructures. It is commonly used in environments demanding high port density and efficient traffic management. Key Features
This switch plays a crucial role in maintaining seamless network operations by combining reliability with performance. Its design addresses the needs for scalable connectivity and straightforward maintenance, ensuring steady data flow within complex network architectures. With its balance of features and form factor, the S4810-ON supports networks that require consistent performance without compromising space or power efficiency. |
Use Cases |
|---|
The S4810-ON is typically deployed in data centers and enterprise networks that require dense 10GbE connectivity with flexible uplink options. Network engineers and administrators benefit from its scalability and performance in environments handling significant data traffic. How It's Used:
By offering reliable, high-speed connectivity, the S4810-ON aids in streamlining network traffic and improving operational efficiency. Its deployment helps maintain scalable and manageable network infrastructures suitable for evolving IT demands. |
