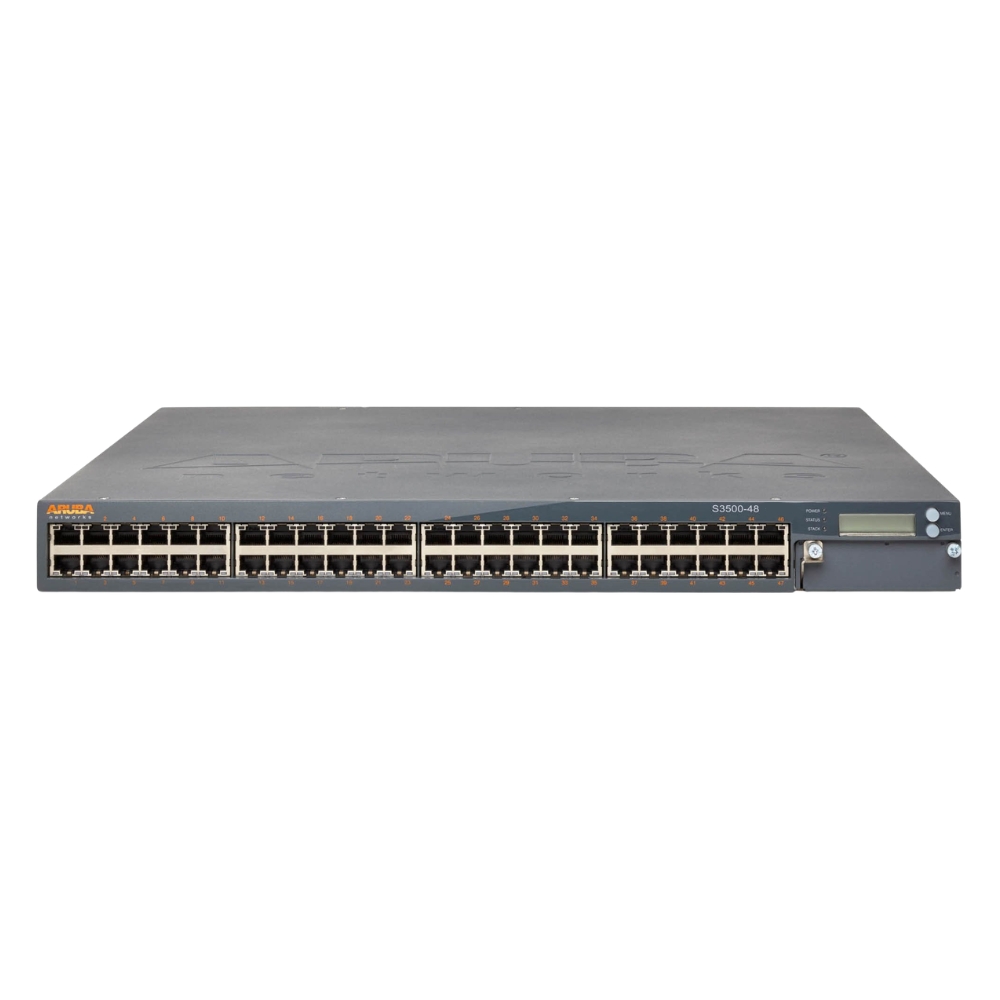

Name: S3500-48P-US Aruba 48-Port PoE+ RJ-45 Layer 2 Managed Switch
Brand: Aruba
SKU: S3500-48P-US
Price: 429.56 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The S3500-48P-US is a PoE+ Ethernet switch delivering data and power through 48 RJ-45 ports. It's designed for networks requiring dependable Layer 2 switching with integrated power management, fitting well within enterprise and campus infrastructures that need to support multiple powered devices efficiently.

General Information
Brand	Aruba
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
DRAM	512 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32768

Management and Configuration
Routing Protocols	Static, RIP, OSPF, VRRP, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (Console/SSH),SNMP,RMON,REST API
Security Features	ACLs,802.1X,Port Security,MAC Authentication,DHCP Snooping,IP Source Guard,ARP Inspection,Storm Control,BPDU Guard,SSH,SSL
Management Type	Managed Switch
Remote Management Protocol	HTTP,HTTPS,SSH,Telnet,SNMPv1/v2/v3
Routing Protocol	Static,RIP,OSPF,VRRP

Power & Cooling
Fans	Yes (internal)
Power	Max PoE budget 740W; AC input 100-240VAC
Power Supply	Internal AC (100-240VAC, 50/60Hz)

Physical Characteristics
Dimensions	1.73 x 17.32 x 16.93 in (H x W x D)
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Product Description
The S3500-48P-US is a 48-port PoE+ switch designed to provide reliable connectivity and power to network devices. It is commonly used in enterprise and campus networks where numerous endpoints require both data and power over a single cable. Built for IT professionals managing mid-sized to large networks, this switch supports efficient traffic handling and ensures network stability through advanced features. Its design suits environments that demand consistent performance and scalability. Key Features Delivers Power over Ethernet Plus on all 48 ports, enabling device power and data over one connection Offers Layer 2 switching capabilities for effective local network segmentation Includes QoS and security features to maintain optimal network performance Supports energy-efficient operation, reducing power consumption without sacrificing throughput Equipped with a fan system designed to balance cooling and noise levels This switch plays an essential role in maintaining reliable network infrastructure by combining power delivery with data switching. Its consistent operation and feature set support network growth and adaptability without compromising performance.

Use Cases
The S3500-48P-US switch is typically found in network environments where high port density and PoE+ capabilities are essential. IT managers and network engineers benefit from its ability to streamline device connectivity and power delivery in mid-sized to large installations. How It's Used: Deployed in enterprise office networks to power VoIP phones and wireless access points Utilized in campus network closets to provide centralized connectivity for multiple departments Integrated into surveillance systems to supply power and data to IP cameras Implemented in data center edge switches to support rack-level device connectivity Used in branch office setups requiring streamlined network and power management This switch supports operational efficiency by combining power delivery with robust switching features. Its scalability and dependable performance help maintain network stability in dynamic environments.
