| Product Overview |
|---|

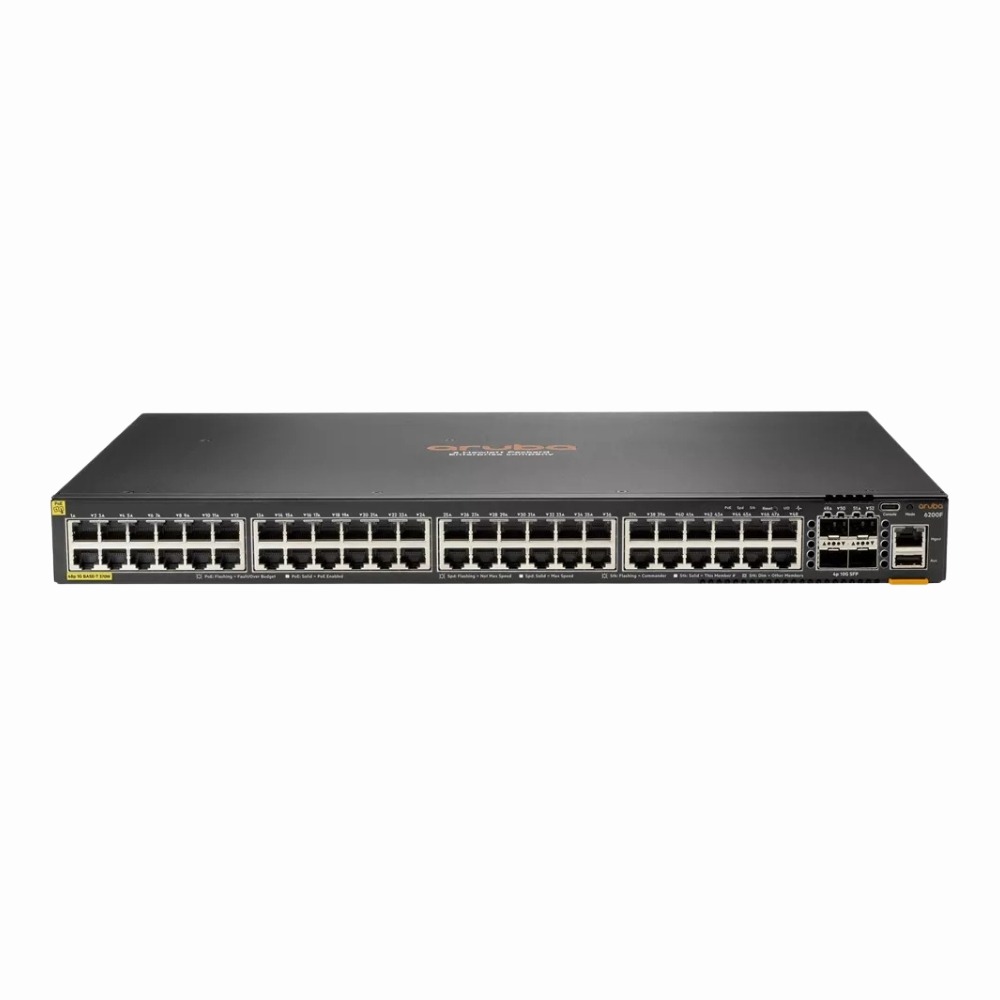

The HP CX 6200F Series 6200F switch combines high port count with Layer 3 management and flexible fiber options, making it a versatile choice for network environments. It fits into rack setups where airflow and stacking are important, offering dependable gigabit connectivity for both copper and fiber connections. |
| General Information | |
|---|---|
| Brand | HP |
| Part Number | S0M83A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x SFP |
| POE Support | No |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 203.125 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP |
| Remote Protocols | Yes |
| Management Interfaces | Web (GUI), CLI (SSH/Telnet), SNMP, RMON |
| Security Features | 802.1X, ACLs, SSH, SSL, RADIUS, TACACS+ |
| Remote Management Protocol | SNMPv1,v2c,v3,SSH,Telnet,HTTP,HTTPS |
| Routing Protocol | Static,RIP,OSPF,VRRP |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Product Description |
|---|
The HP CX 6200F Series 48G 4SFP switch is built for network environments requiring reliable gigabit connectivity with flexible fiber options. It is commonly used in enterprise and data center settings where high port density and Layer 3 management improve network efficiency and control. Often found in medium to large-scale networks, this switch fits well where both copper and fiber connections are needed and where rack space is limited. IT professionals managing complex networks benefit from its stacking and routing capabilities. Key Features
This switch is typically deployed in wiring closets or network racks where space and airflow direction matter. It plays a key role in managing traffic within campus or branch office networks, providing both performance and adaptability without complex setup. |
