| Product Overview |
|---|

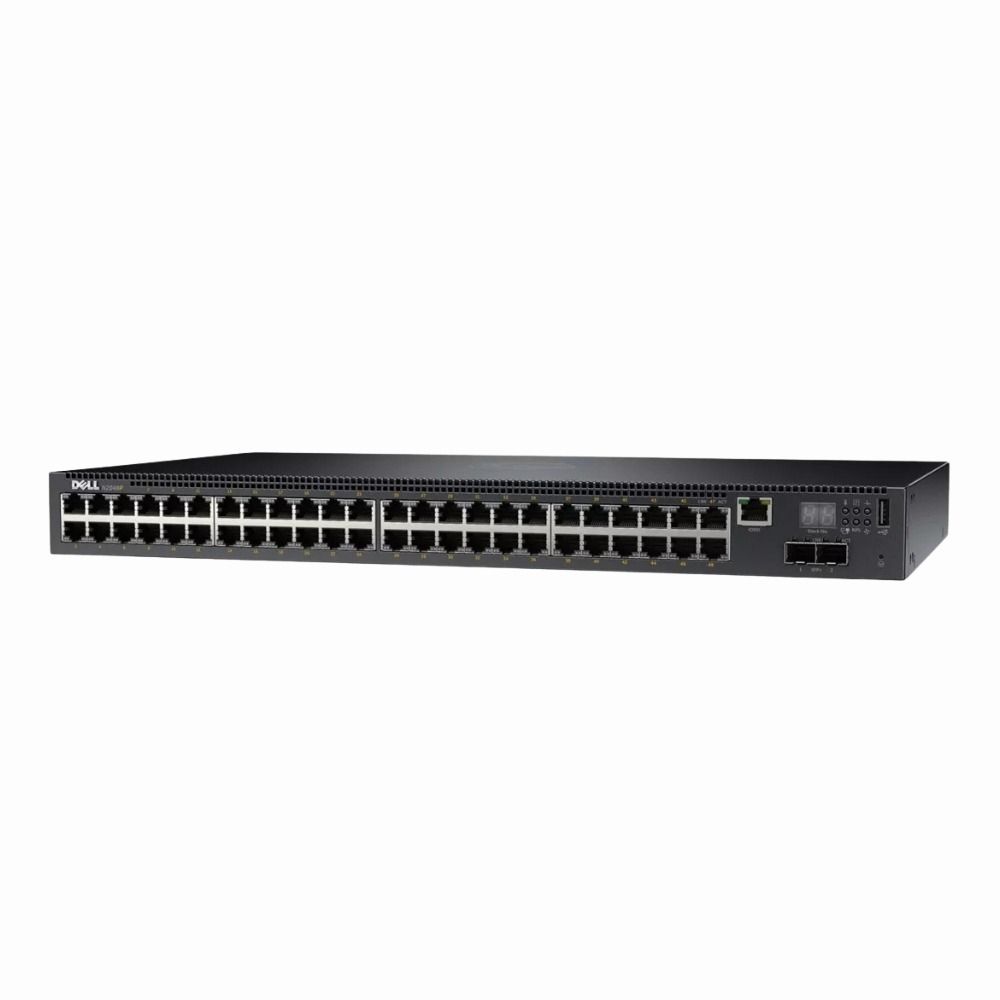

The Dell PowerSwitch N2000 N2048P combines 48 PoE+ gigabit ports and 10G uplinks in a Layer 3 managed switch designed for reliable network access and power delivery. It fits well in office and campus environments where both connectivity and device power are required from a single solution. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | RHVDV |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48-Ports |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 2 x 10G SFP+ (10GBase-X) |
| POE Support | PoE+ |
| Switching Capacity | 136 Gbps |
| Switch Forwarding Rate | 265.63 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (console), Web GUI (HTTP/HTTPS), SNMP v1/v2/v3, SSH, Telnet, RMON, Syslog |
| Security | SSH, SSL, 802.1X, ACLs |
| Remote Management Protocol | SNMP, SSH, HTTPS, Telnet |
| Routing Protocol | Static,RIP,OSPF |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable variable-speed fans (2) |
| Power | AC 100-240V, 50/60 Hz; Max PoE budget 740W (system dependent) |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The Dell PowerSwitch N2000 N2048P is built for environments needing reliable, high-speed wired connections with power over Ethernet capabilities. Often found in office networks, campuses, and retail installations, it provides both data and power to devices like IP phones, cameras, and wireless access points through its 48 PoE+ ports. This Layer 3 switch is frequently used by network administrators who require advanced management features and routing capabilities within their infrastructure. Its combination of gigabit ports and 10Gbps uplinks ensures smooth traffic flow and scalability. Key Features
This switch is typically deployed in medium-sized enterprise networks or branch offices where both data and power needs must be met efficiently. It plays a key role in consolidating network infrastructure while providing flexibility for future upgrades. |
