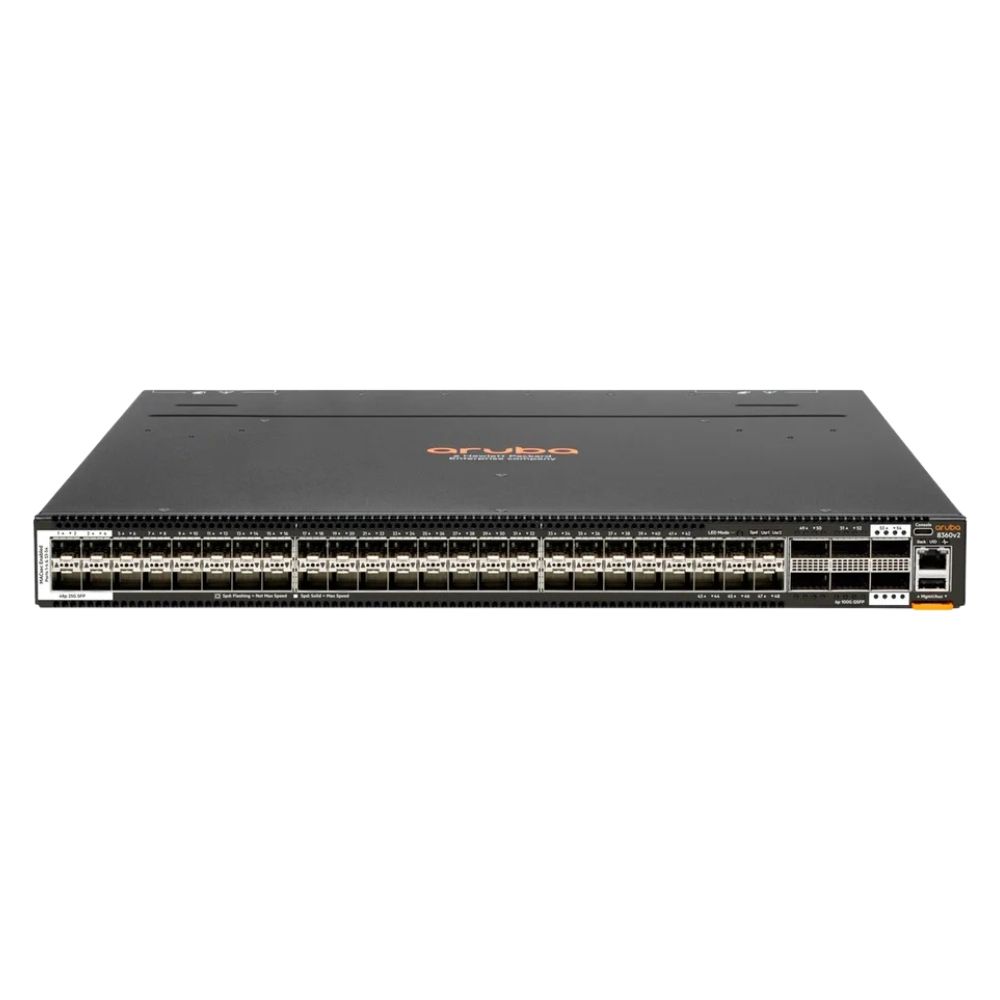

R9G22A#ABA HP Aruba CX 8360-48Y6C V2 48 SFP28 25G + 6 QSFP28 100G Layer 3 Switch
SKU:
R9G22A#ABA
Weight: 3.00 lbs
Condition: Refurbished
- 48 SFP28 ports delivering 25GBase-X connectivity for high-speed data transfer
- 6 QSFP28 ports supporting 100GBase-X for uplink or aggregation purposes
- Layer 3 managed switch with advanced routing and network segmentation capabilities
- Compact 1U rack-mountable design suitable for dense network environments
| Product Overview |
|---|
The HP Aruba CX 8360 Series 8360-48Y6C V2 switch provides high-density 25G and 100G port configuration suitable for modern data center and enterprise networks. It combines Layer 3 routing with compact rack design, fitting into network infrastructures that demand both speed and advanced management features without occupying excessive rack space. |
| General Information | |
|---|---|
| Brand | HP |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Type | Layer 3, Managed Switch, Stackable Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 25G SFP28, 100G QSFP28, USB Console, Serial Console (RJ-45) |
| Port Speed | 25G,100G |
| UpLink Ports | 6 x QSFP28 (100GBase-X) |
| POE Support | No |
| Switching Capacity | 3.6 Tbps |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | SFP28,QSFP28,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 131072 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (ArubaOS-CX),Command-Line Interface (CLI),SNMP,REST API |
| Security Features | 802.1X,ACLs,MACsec,SSH,IP Source Guard,Dynamic ARP Inspection |
| Management Type | In-band and Out-of-band |
| Remote Management Protocol | SSH,HTTPS,REST,SNMP |
| Power & Cooling | |
|---|---|
| Fans | Hot-swappable redundant fans (front-to-back airflow) |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Assembly Required | No |
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ae,IEEE 802.3ba,IEEE 802.3X |
| Product Description |
|---|
The HP Aruba CX 8360 Series 8360-48Y6C V2 is a powerful network switch designed to handle demanding data center and enterprise networking needs. It is often found in environments requiring high-density 25G and 100G connectivity with robust Layer 3 features for routing and network management. Built for network engineers and IT professionals responsible for scalable and reliable infrastructure, this switch supports complex network topologies and traffic loads. Its rack-mountable 1U form factor enables efficient use of space in network closets or data centers. Key Features
This switch plays a critical role as a backbone component in complex network setups, where sustained performance and configuration flexibility are essential. Its reliable hardware design and software features ensure consistent network operation under demanding conditions. |
| Use Cases |
|---|
This switch is commonly deployed in data centers and enterprise core or aggregation layers where high throughput and low latency are crucial. It benefits network administrators looking to manage large traffic volumes with flexible Layer 3 features and scalable port options. How It's Used:
By providing consistent performance and extensive protocol support, this switch helps maintain operational efficiency and network scalability. Its design accommodates evolving network demands while reducing complexity in rack deployments. |
