| Product Overview |
|---|

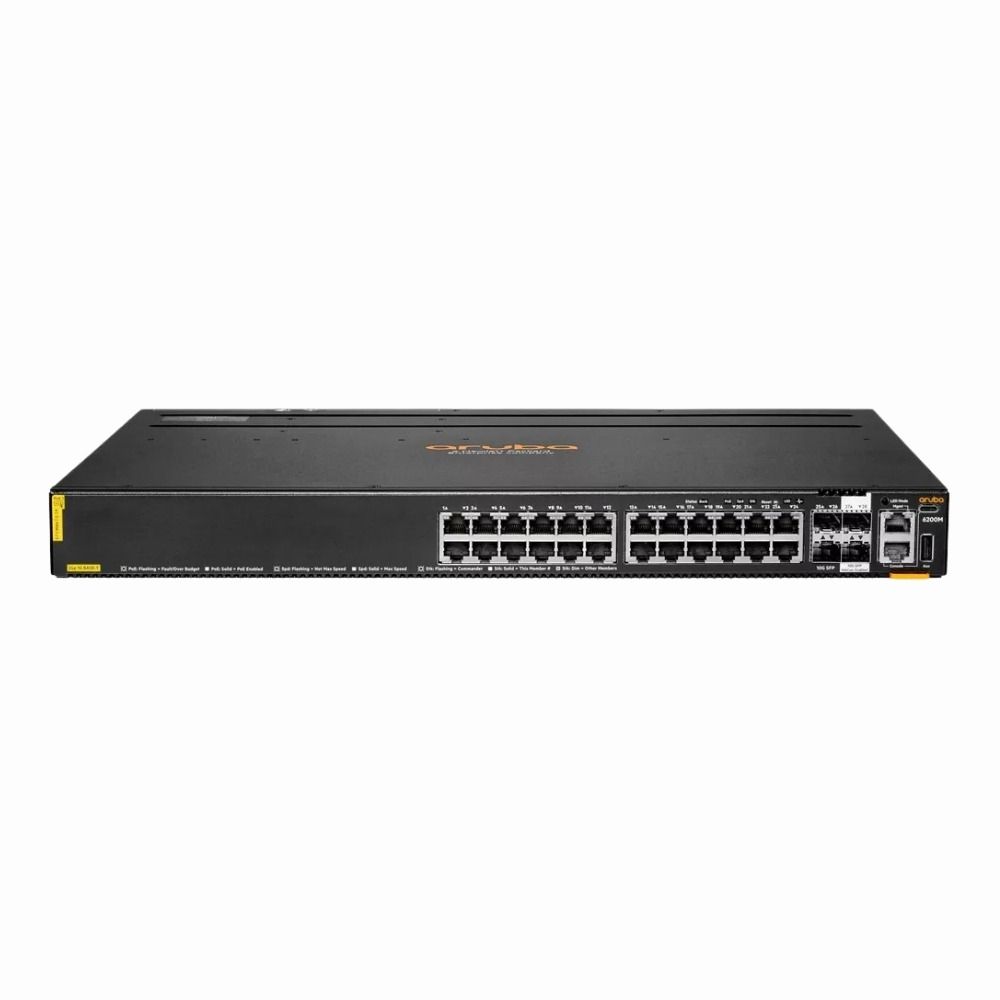

The HP Aruba CX 6200M Series 24-port switch combines gigabit Ethernet connectivity with PoE Class 4 power, making it a solid choice for powering network devices while maintaining high-speed data transfer. Its inclusion of 10G SFP+ uplink ports allows it to fit smoothly into both access and aggregation layers of a network, supporting a range of enterprise applications. |
| General Information | |
|---|---|
| Brand | Aruba Networks |
| Part Number | R8Q68A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, RJ-45 |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | PoE+ |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, OSPF, BGP, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, CLI (SSH/Console), SNMP, REST API, Aruba Central |
| Security Features | 802.1X, ACLs, MAC authentication, Port security, IP Source Guard, Storm control, DoS protection |
| Management Type | Local (CLI/Web) and Cloud (Aruba Central) |
| Remote Management Protocol | SNMPv1/v2c/v3, SSH, HTTPS, RESTful API |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP Aruba CX 6200M Series switch serves as a reliable network backbone by providing versatile connectivity and power over Ethernet capabilities. It is commonly found in medium-sized enterprise networks, branch offices, and campus environments where efficient data transfer and device powering are essential. Built for network administrators who require scalability and robust performance, this switch offers straightforward management with Aruba’s modern operating system. It's often used to connect IP phones, wireless access points, and security cameras while handling high data throughput with minimal latency. Key Features
These switches are typically deployed in office environments and data centers where reliable connectivity and device power are critical. They provide the essential support needed for growing network demands without unnecessary complexity. |
