| Product Overview |
|---|

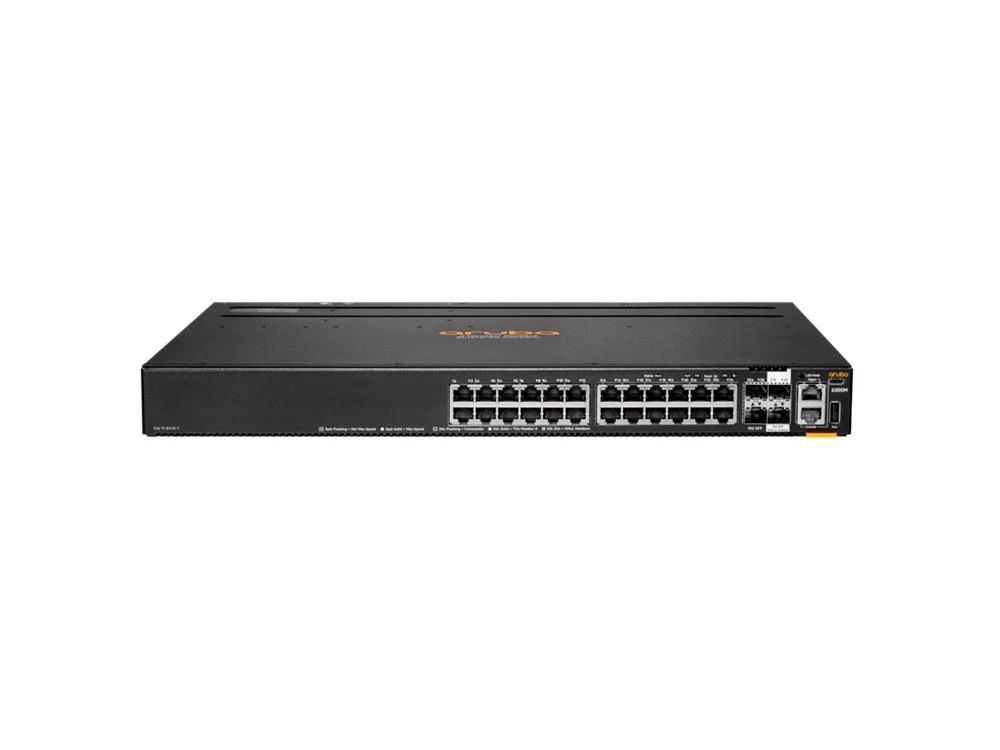

The HP Aruba CX 6200M Series 24-Port Switch combines gigabit copper access with 10G fiber uplinks, making it suitable for campus or branch network environments. It fits well where network administrators need a dependable switch that supports modern management and scaling options without added complexity. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | R8Q67-61001 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+, RJ-45 |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | No |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 250 Mpps |
| DRAM | 1 GB |
| Flash Memory | 512 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | CLI (console/SSH), Web GUI, SNMP, REST API, Telnet |
| Remote Management Protocol | SSH,HTTPS,HTTP,SNMP,REST API,Telnet |
| Routing Protocol | Static,OSPF,OSPFv3,RIP,BGP,VRRP,HSRP |
| Power & Cooling | |
|---|---|
| Power | Maximum ~60 W (typical, non-PoE) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 10.00 in |
| Weight | 5.00 |
| Operating Temperature | 0 to 45 C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.1D, IEEE 802.1w, IEEE 802.3ad |
| Product Description |
|---|
The HP Aruba CX 6200M Series Switch provides flexible, high-performance network connectivity suitable for modern enterprise environments. Often found in wiring closets or network aggregation points, it delivers a combination of copper and fiber ports to support diverse device connections. Built for IT professionals managing campus or branch networks, this switch streamlines network operations with Aruba's modern operating system and advanced management capabilities. It’s typically used where reliable gigabit access and higher-speed uplinks are needed. Key Features
This switch is commonly deployed in enterprise access layers or smaller campus networks where a balance of copper and fiber ports is needed. It helps simplify network management and ensures reliable connectivity across user devices and uplinks. By combining solid hardware with intelligent software, it supports day-to-day networking tasks and can adapt as network demands evolve. |
