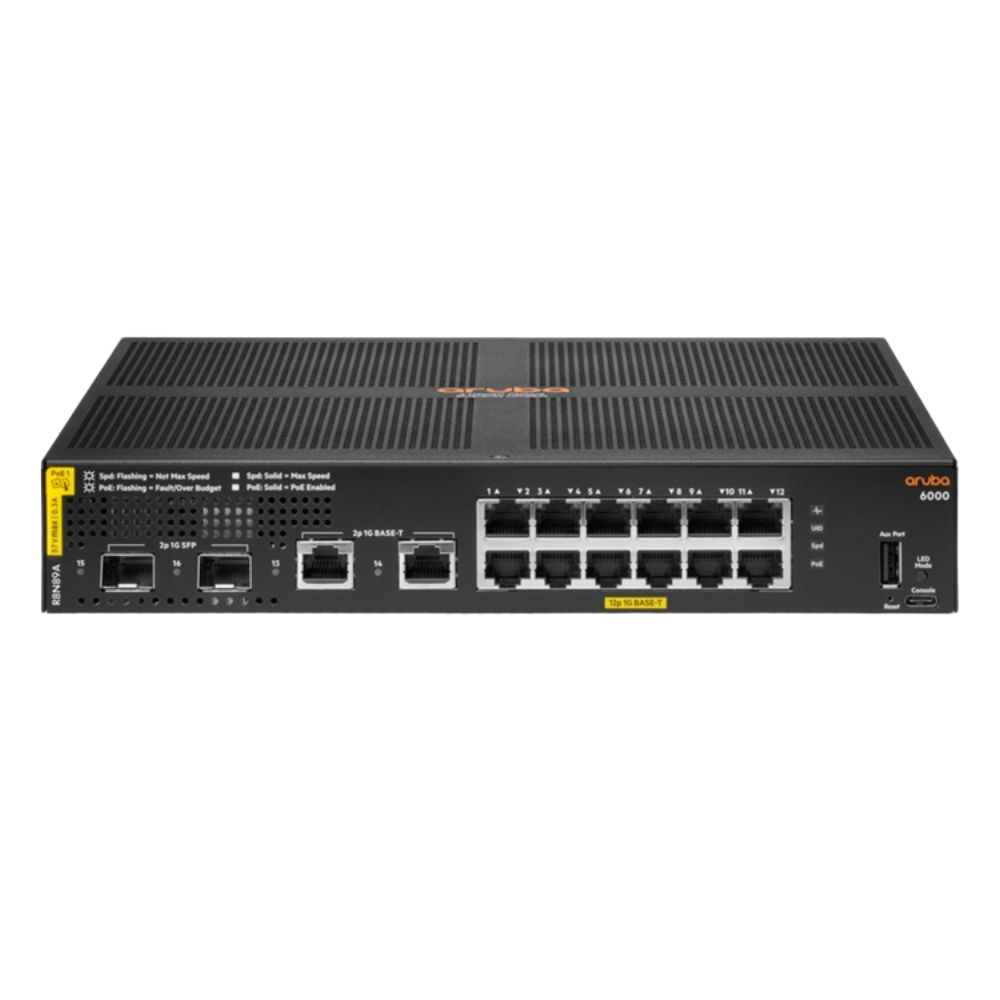

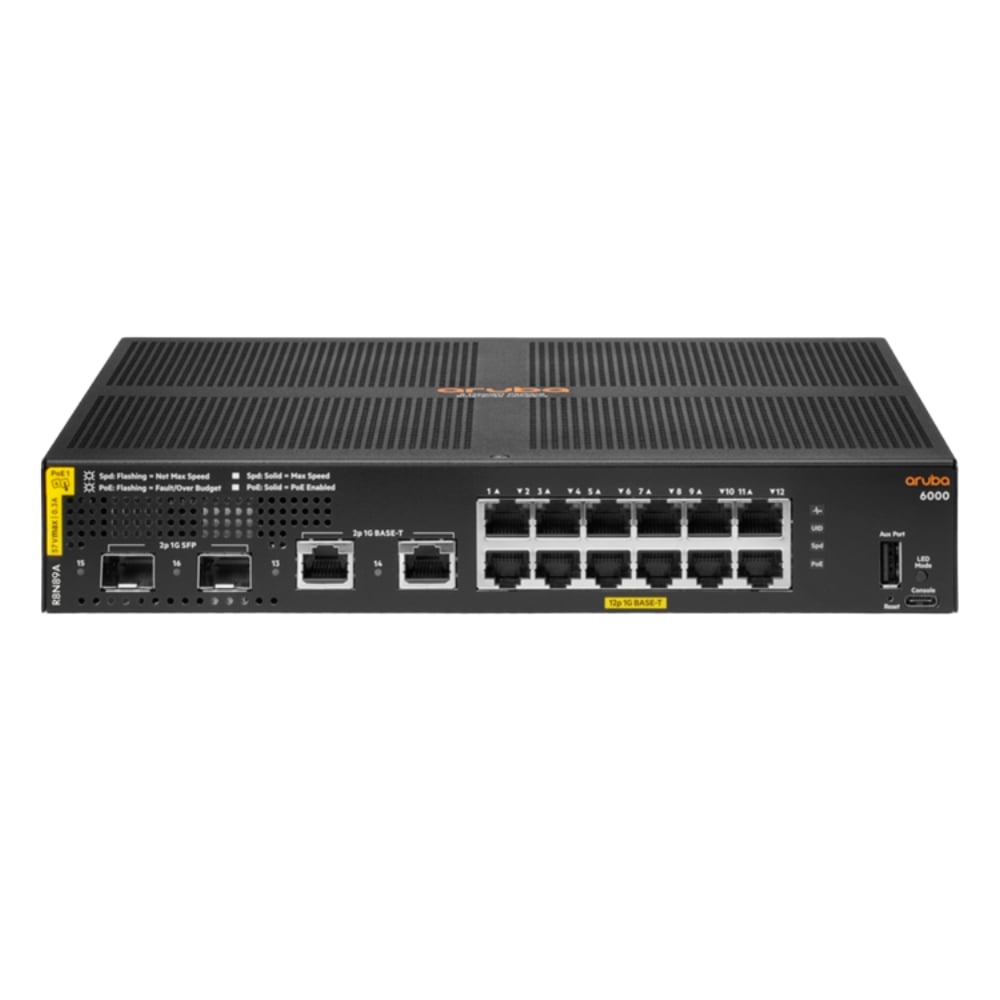

Name: R8N89B HPE Aruba CX 6000 12-Port Gigabit Class 4 PoE Switch
Brand: HPE
SKU: R8N89B
Price: 640.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The R8N89B HPE Aruba Networking CX 6000 switch provides 12 Gigabit Ethernet ports with Class 4 Power over Ethernet and 2 1GbE SFP ports. It is a managed switch designed to support enterprise network environments requiring flexible connectivity and centralized network management.

General Information
Brand	HPE
Condition	Refurbished

Technical Information
Switch Type	Layer 2, Managed Switch, PoE Switch, Gigabit Switch
Form Factor	Desktop
Mount Type	Desktop
Switch Ports	12-Ports
Number of Ports	12-Ports
Port Type	10/100/1000Base-T, 1000Base-X, USB Console, Serial Console (RJ-45)
Port Speed	1 Gbps
UpLink Ports	2-Ports
POE Support	PoE+
Switching Capacity	24 Gbps
Switch Forwarding Rate	46.9 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	Supported up to 4094
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8192

Management and Configuration
Remote Protocols	Yes
Management Interfaces	Web GUI, Command Line (SSH), SNMPv2/v3, REST API, Aruba Central (cloud)
Security Features	Access Control Lists (ACLs), 802.1X Network Access Control, MAC Authentication, Port Security, RADIUS, TACACS+, DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, Storm Control, BPDU Guard
Management Type	Managed, Cloud-Managed (Aruba Central)
Security	802.1X,RADIUS,TACACS+,ACLs
Remote Management Protocol	SSH,HTTPS,SNMPv2/v3,REST API

Power & Cooling
Fans	Fanless
Power	370W PoE budget (internal AC)
Power Supply	Internal 100-240VAC, 50/60 Hz

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3at (PoE+)

Product Description
The HPE Aruba Networking CX 6000 R8N89B is a managed switch designed to provide reliable connectivity with Power over Ethernet (PoE) capabilities. It features 12 Gigabit Ethernet ports supporting Class 4 PoE and 2 1GbE SFP ports for flexible fiber connections. This switch is typically used in enterprise environments where network management and PoE power delivery are essential. Network administrators and IT professionals benefit from its managed capabilities, enabling detailed configuration and monitoring within campus or branch office deployments. Key Features 12 Gigabit Ethernet ports with Class 4 PoE to power connected devices 2 1GbE SFP ports for uplink or fiber connectivity options Managed switch functionality for advanced network control Part of the Aruba Networking CX 6000 series Supports deployment in enterprise networking environments This switch serves as a key component in network infrastructure, supporting both data and power delivery over Ethernet. Its managed features allow integration into existing network management frameworks, providing operational flexibility for IT teams.

Use Cases
The R8N89B switch is typically deployed in enterprise and campus networks where both data connectivity and PoE power delivery are required. It suits environments needing advanced network management and secure uplink options. How It's Used: Powering IP phones, wireless access points, and cameras via Class 4 PoE Providing uplink fiber connections through 1GbE SFP ports Integrating into managed network environments for centralized control Supporting device connectivity in campus or branch office networks Serving as an access layer switch in enterprise LAN architectures This switch plays a vital role in delivering both power and data connectivity while enabling IT departments to manage network traffic and security effectively. It fits well into structured networks requiring PoE and fiber uplink capabilities.

FAQ's
What does Class 4 PoE mean on the R8N89B switch? Class 4 PoE indicates the switch can deliver up to 30 watts of power per port to connected devices, suitable for powering devices like IP phones and wireless access points. How many SFP ports does the R8N89B have for fiber connections? The switch provides 2 1GbE SFP ports, allowing for fiber uplink or connection flexibility in the network. Is the R8N89B suitable for managed network environments? Yes, the R8N89B is a managed switch, enabling detailed configuration and monitoring suitable for enterprise networks. Can the R8N89B power wireless access points? Yes, with its Class 4 PoE support, the switch can supply sufficient power to wireless access points compliant with PoE standards. What type of network is the R8N89B intended for? This switch is designed for enterprise and campus networks requiring both data connectivity and PoE power delivery for endpoint devices. Does the R8N89B support fiber uplinks? Yes, it includes 2 1GbE SFP ports that support fiber uplinks for network expansion and flexibility.
