| Product Overview |
|---|

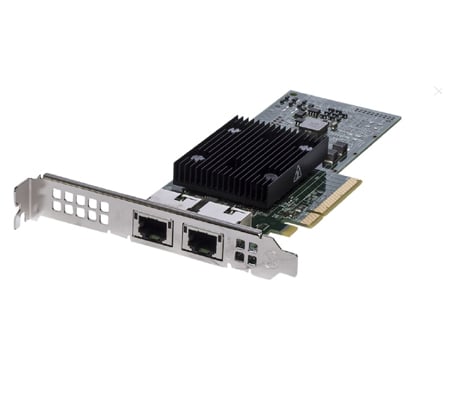

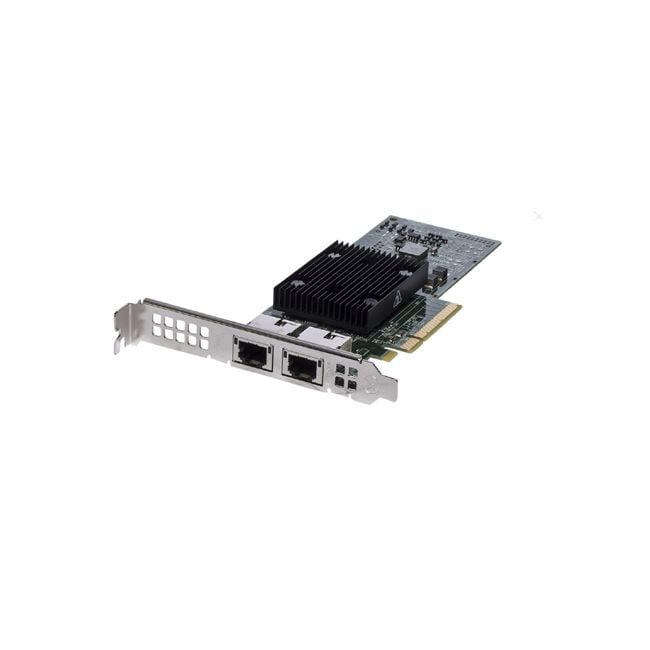

The R6006 Dell Broadcom 57406 network card equips systems with two 10GBase-T RJ-45 ports through a PCI Express interface. It fits well in server and workstation environments that demand fast, dependable wired networking, providing a straightforward upgrade path for enhanced Ethernet performance. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | R6006 |
| Technical Information | |
|---|---|
| Chipset/Controller | Broadcom BCM57406 (Broadcom 57406) |
| Virtualization Support | SR-IOV, VMDq, VXLAN, NVGRE, Geneve, NetQueue, vNIC |
| Data Rate (Speed) | 10GbE |
| Data Center Bridging | Yes |
| Storage Over Ethernet | iSCSI, FCoE (Fibre Channel over Ethernet) |
| Interface (Bus) | PCIe 3.0 x8 |
| Number of Ports | 2-Port (Dual) |
| OS Compatibility | Windows Server 2022, VMware ESXi 8.0, RHEL |
| Network Management | SNMP, RMON, NC-SI |
| Offload Support | iSCSI, FCoE, PXE Boot, Wake-on-LAN (WoL), TCP Stateless Offload, Jumbo Frames |
| Bracket Height | Both Brackets Included |
| Connectivity & Physical | |
|---|---|
| Form Factor | Standard PCIe Card |
| Port Type | RJ-45 (Copper) |
| Cabling Type | Cat6a |
| Max Power Consumption | Typical ~7-10W (varies with link speed and activity) |
| Weight | 5.00 |
| Condition | Refurbished |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Product Description |
|---|
The R6006 Dell Broadcom 57406 network card delivers dual 10 Gigabit Ethernet ports using RJ-45 connectors, providing robust and fast wired connections. It's commonly used in servers and high-performance workstations that require reliable, low-latency network access. Built for IT professionals and system administrators, this card is often found in data centers and enterprise environments to enhance network throughput and ensure stable communication. Key Features
This card is typically deployed in environments where fast network access is critical, such as virtualization hosts or database servers. Its reliable performance supports smooth data transfer and network-intensive operations, making it a solid choice for professional IT setups. |
