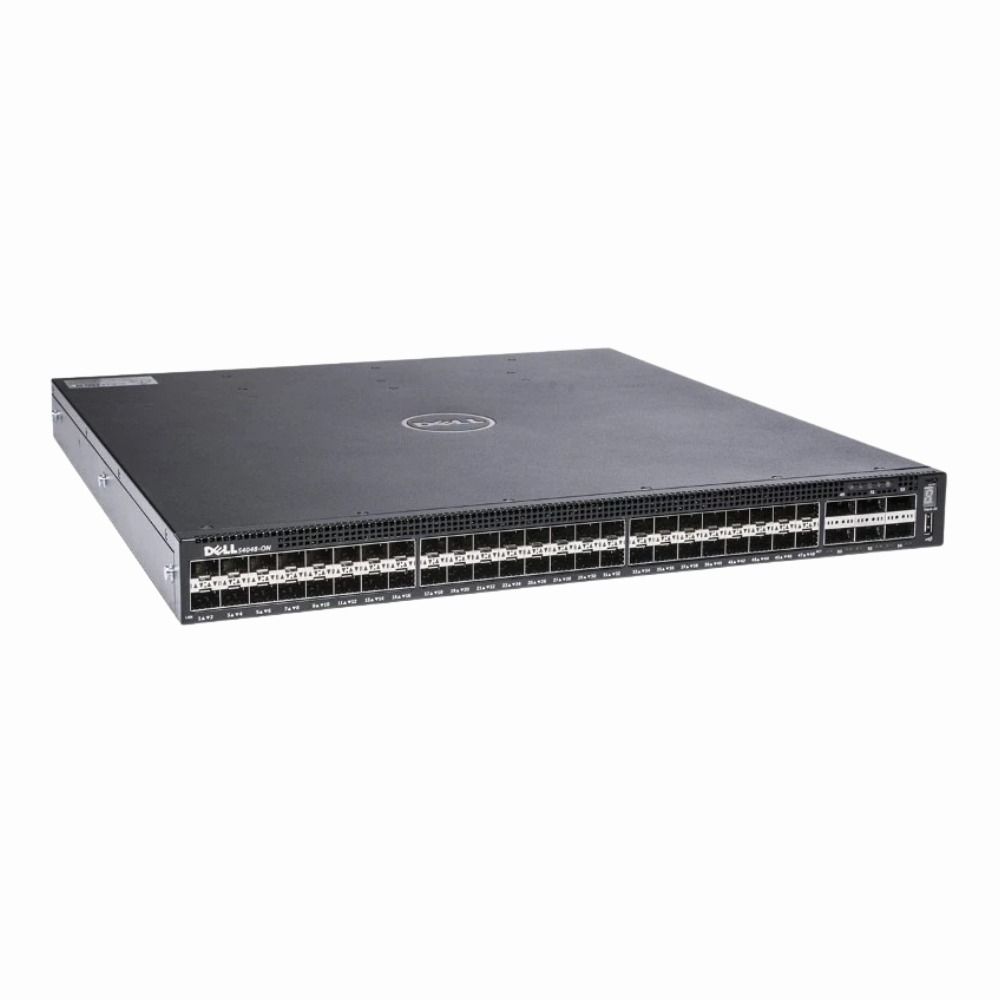

Name: R2T0V Dell PowerSwitch S4048-ON 48x10G SFP+ 6x40G QSFP+ Layer 3 Switch
Brand: Dell
SKU: R2T0V
Price: 1261.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell PowerSwitch S4048-ON combines a dense array of 10GbE ports with Layer 3 routing capabilities, making it a solid choice for network professionals managing medium to large-scale environments. It fits well in data centers needing rack-mounted switches that balance port density with flexible uplink options, offering straightforward management and scalability for evolving network requirements.

General Information
Brand	Dell
Part Number	R2T0V
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10G SFP+, SFP+, QSFP / QSFP+
Port Speed	10Gbps,40Gbps
UpLink Ports	6
POE Support	No
Switching Capacity	1.44 Tbps
Switch Forwarding Rate	1071.4 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	SFP+,QSFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, HSRP, PIM-SM, IGMP, MLD
Remote Protocols	Yes
Management Interfaces	Console (RJ-45),USB Console,SSH,Telnet,Web GUI,SNMPv1/v2/v3
Security Features	802.1X,RADIUS,TACACS+,ACLs,SSH,SSL,Port Security,DHCP Snooping,IP Source Guard
Remote Management Protocol	SSH,Telnet,HTTP,HTTPS,SNMPv1,v2c,v3
Routing Protocol	Static,RIP,OSPF,OSPFv3,BGP,VRRP,HSRP,PIM-SM,IGMP

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X

Product Description
The Dell PowerSwitch S4048-ON is a high-performance network switch built for data centers and enterprise networks. It’s commonly found in environments requiring high-density 10GbE connectivity combined with flexible uplink options. Network engineers and IT teams use this switch to handle demanding traffic loads with reliable Layer 3 management features. Ideal for top-of-rack deployments, the S4048-ON supports a mix of 48 10G SFP+ ports and 6 QSFP+ ports, enabling scalable and efficient network designs. It integrates well into existing infrastructures while providing the versatility needed for evolving network demands. Key Features Offers 48 10GBase-X ports for high-density server connectivity Equipped with 6 QSFP+ ports to support 40GbE uplinks or stacking Includes Layer 3 routing protocols such as OSPF and BGP 1U form factor designed for efficient rack space usage Supports remote management and automation for streamlined operations This switch is typically deployed in data centers, enterprise server rooms, and cloud environments where reliable high-speed networking is crucial. It helps maintain smooth data flow and supports network scalability without compromising performance.

Use Cases
The Dell PowerSwitch S4048-ON is designed for environments requiring high-density 10GbE connectivity combined with advanced Layer 3 routing. It is ideal for data centers and enterprise IT infrastructures where performance, scalability, and compact rack deployment are critical. How It's Used: Supporting virtualization environments by providing high-throughput connections for hypervisor clusters in data centers. Serving as a top-of-rack switch in enterprise data centers to consolidate server and storage traffic efficiently. Enabling high-speed uplink aggregation for campus networks requiring scalable Layer 3 routing capabilities. Facilitating network segmentation and routing in medium to large-scale IT infrastructures for improved traffic management. Integrating with storage clusters to deliver low-latency 10G and 40G connections for SAN environments. This switch enhances operational efficiency through dense port availability and advanced routing features, allowing IT teams to scale network capacity without compromising performance or footprint. It supports evolving data center architectures by balancing speed, management flexibility, and compact deployment.
