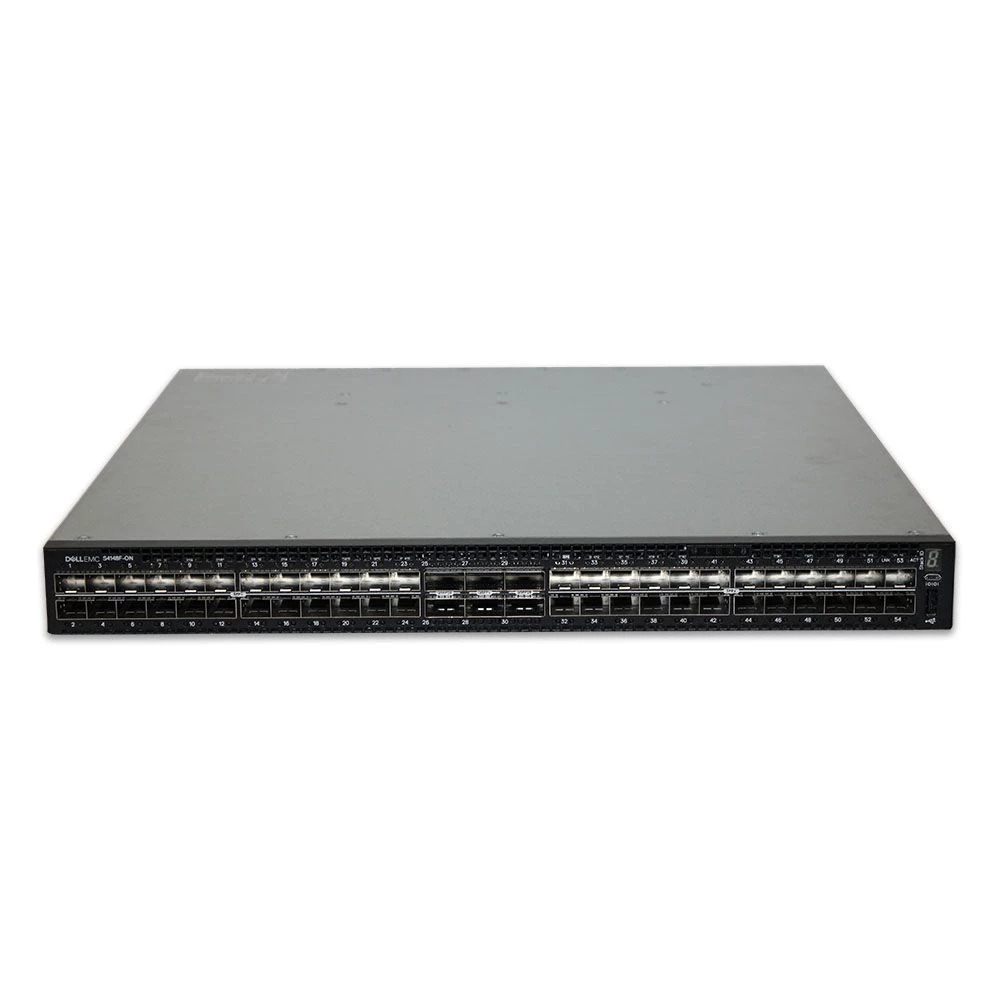

R2RKC Dell Networking S4100-ON Series S4148F-ON 48 x SFP+ Ports 10GBase-X + 2 x QSFP+ Ports 40GbE + 4 x QSFP28 Ports 100GbE Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch

SKU:

R2RKC

Weight: 5.00 lbs
Condition: Refurbished
  • 48 SFP+ ports supporting 10GBase-X connections for high-speed data transfer
  • 2 QSFP+ ports providing 40GbE uplink capabilities
  • 4 QSFP28 ports enabling 100GbE bandwidth for intensive network demands
  • Layer 3 managed switch with advanced routing and traffic management features
In stock

$2,649.00
Product Overview

The Dell Networking S4148F-ON is a compact yet powerful Layer 3 switch delivering high-speed connectivity with a mix of 10G, 40G, and 100G ports. It fits into rack environments and serves as a backbone device in data centers and large campuses, managing traffic and supporting scalable network growth without complication.

General Information
Brand Dell
Part Number R2RKC
Condition Refurbished
Technical Information
Switch Ports 48
Number of Ports 48-Ports
Port Type 10G SFP+, 40G QSFP+, 100G QSFP28, USB Console, Serial Console (RJ-45)
Port Speed 10GbE,40GbE,100GbE
UpLink Ports 2 x QSFP+ (40GbE), 4 x QSFP28 (100GbE)
POE Support No
Switching Capacity 1.92 Tbps
Switch Forwarding Rate 3750 Mpps (theoretical @64B, full duplex)
DRAM 8 GB
Flash Memory 4 GB
VLAN Support Yes
Max VLANs Supported 1-4094
Layer Support Layer 3
Connector Type SFP+,QSFP+,QSFP28
Performance
Latency <2 µs (typical at line rate on 10G ports)
Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 128K (approx.)
Management and Configuration
Routing Protocols Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols Yes
Security Features ACLs, 802.1X, Port security, SSH, RADIUS, TACACS+, Storm control, DHCP snooping, IP Source Guard
Remote Management Protocol SSH,Telnet,HTTPS,HTTP,SNMPv1/v2c/v3
Routing Protocol Yes
Power & Cooling
Fans Hot-swappable redundant fans (4)
Power Typical: ~430 W (platform dependent)
Power Supply Hot-plug redundant AC power supply (field-replaceable, models vary)
Physical Characteristics
Dimensions 1.73 x 17.3 x 18.5 in
Weight 5.00
Operating Temperature 0°C to 40°C
Miscellaneous
Compliance Standards WEEE, RoHS, CE, FCC, UL, TUV, cULus


Product Description

The Dell Networking S4148F-ON is a versatile Layer 3 switch designed for data centers and enterprise networks requiring robust and scalable connectivity. It is built for environments that demand high throughput and low latency, such as cloud infrastructures, storage networks, and large campus backbones. Network administrators and IT professionals often find this switch suitable for managing complex network topologies and high-volume traffic.

Key Features

  • Supports multi-speed interfaces accommodating 10G, 40G, and 100G connections
  • Offers comprehensive Layer 3 capabilities for routing and network segmentation
  • Equipped with a 1U rack-mountable form factor to fit standard data center racks
  • Includes advanced management options for network monitoring and configuration
  • Designed to handle demanding network workloads with stability and efficiency

This switch is commonly deployed in data centers and enterprise core layers where high bandwidth and reliable performance are critical. Its combination of multiple high-speed ports and Layer 3 functionality helps maintain smooth traffic flow and supports diverse application needs. IT teams benefit from its flexibility and ease of integration into existing network architectures.
