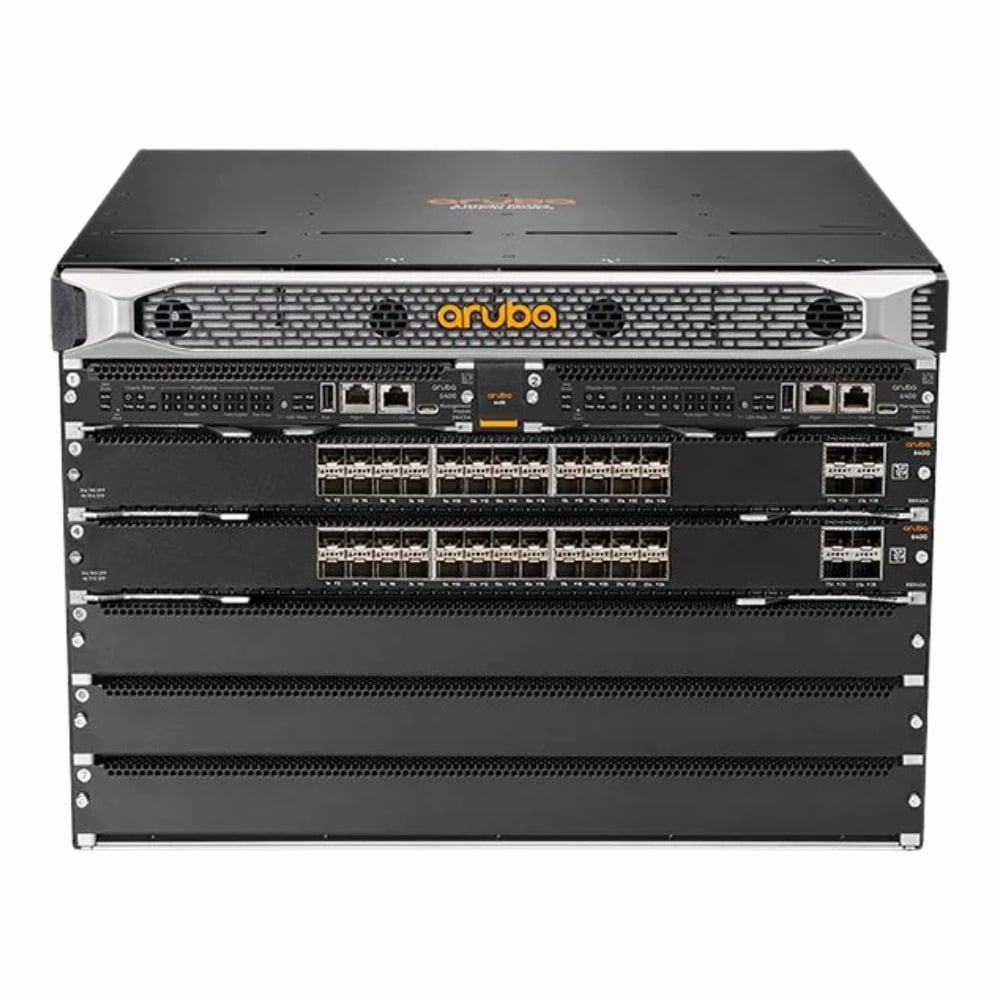

Name: R0X30A HPE Aruba 6405 48x10GbE SFP+ 8x50GbE SFP56 Layer 3 Switch
Brand: HPE
SKU: R0X30A
Price: 9130.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview
The HP Aruba 6405 48 x Ports 10GbE SFP+ + 8 x Ports 50GbE SFP56 is a robust Layer 3 managed switch built to support high-bandwidth connections in data center and enterprise networks. It fits into a 7U rack and combines multiple high-speed ports with advanced routing capabilities, making it a solid choice for complex networking setups.

General Information
Brand	HPE
Part Number	R0X30A
Condition	Refurbished

Technical Information
Switch Ports	48x 10GbE SFP+, 8x 50GbE SFP56 (56 total)
Number of Ports	56-Ports
Port Type	10G SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,50Gbps
UpLink Ports	8 x 50GbE SFP56
POE Support	No
Switching Capacity	1760 Gbps (1.76 Tbps)
Switch Forwarding Rate	3437.5 Mpps
DRAM	16 GB
Flash Memory	16 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 3
Connector Type	SFP+, SFP56, USB Console, Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, IGMP, Policy-Based Routing (PBR), Route Maps
Remote Protocols	Yes
Management Interfaces	CLI (SSH), Web GUI (HTTP/HTTPS), REST API, SNMP, Aruba Central
Security	Yes
Remote Management Protocol	SSH, HTTPS, REST, SNMP
Routing Protocol	Static, OSPF, OSPFv3, BGP, VRRP, RIP

Power & Cooling
Fans	Hot-swappable redundant fans (front-to-back airflow)
Power	Dual hot-swappable AC power supplies (redundant)
Power Supply	Dual AC redundant power supplies

Physical Characteristics
Dimensions	7U height; Rack width 19 in (482.6 mm); depth approx. 20 in (508 mm) (approx. 7U rack-mountable)
Weight	4.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, CCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X

Product Description
The HP Aruba 6405 is designed to handle demanding network environments where speed and reliability are essential. It is commonly used in enterprise data centers and large campus networks to ensure smooth data flow across multiple devices. Built for IT professionals and network administrators, this switch provides the tools needed for effective network management and helps support a wide range of applications. Key Features Delivers 48 SFP+ ports running at 10GbE for flexible device connections Includes 8 SFP56 ports offering 50GbE speeds ideal for uplinks Supports Layer 3 routing protocols for efficient traffic management Equipped with advanced security features to protect network integrity Designed for a 7U rack, fitting well into standard data center racks This switch is typically deployed in environments requiring high throughput and low latency, such as large enterprises or service providers. It plays a central role in maintaining network stability and performance by managing heavy traffic loads effectively.

Use Cases
The HPE Aruba 6405 Layer 3 switch is optimized for environments requiring high-throughput and low-latency connectivity, such as data centers and large enterprise networks. Network architects and IT administrators benefit from its capability to manage complex routing and aggregation tasks in multi-rack deployments. How It's Used: Aggregating traffic in data center leaf-spine architectures to support virtualization and cloud workloads. Providing high-speed uplinks between network closets in large campus networks for enterprise IT environments. Supporting storage area network (SAN) connectivity by enabling low-latency data transfers in storage clusters. Enabling scalable multi-site data center interconnects with 50GbE uplink ports for bandwidth-intensive applications. Facilitating edge computing deployments where rapid data processing and routing are critical for distributed workloads. This switch enhances operational efficiency by consolidating high-speed connectivity with advanced Layer 3 routing, allowing seamless scalability and optimized traffic flow in demanding networking scenarios.
