| Product Overview |
|---|

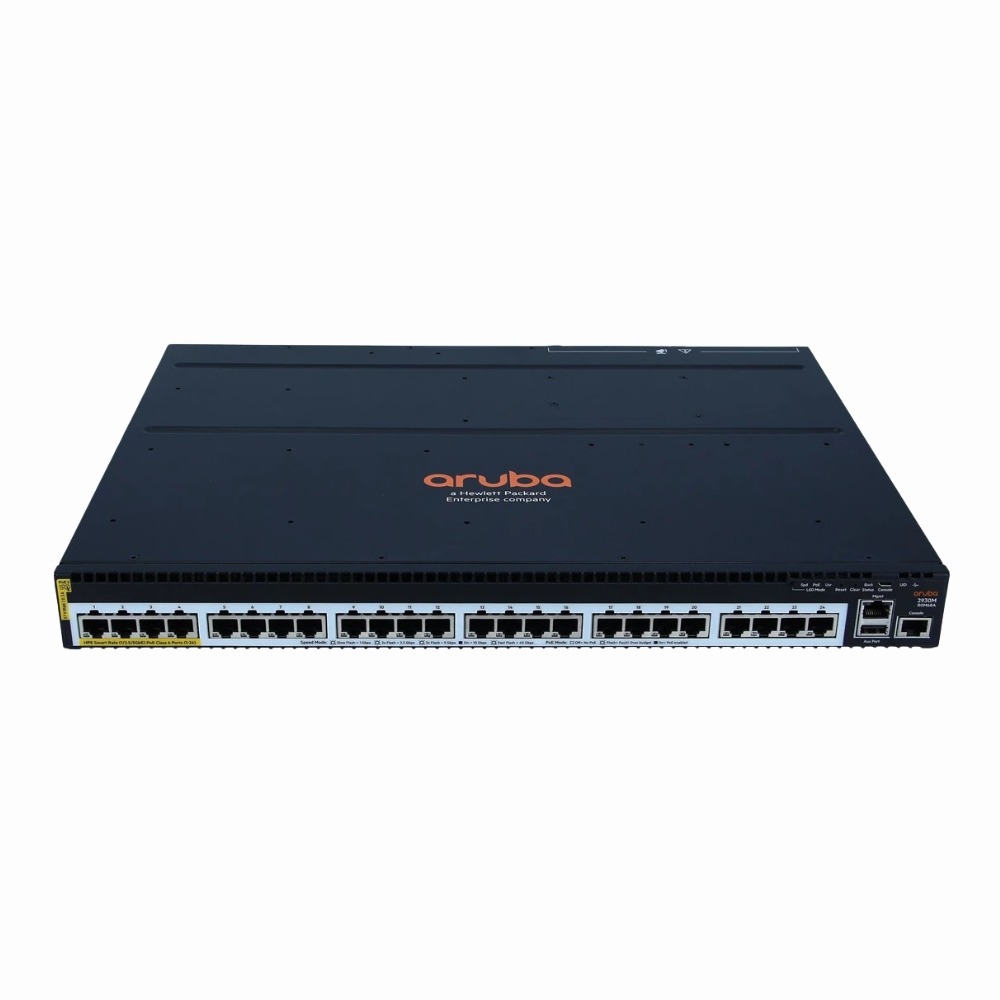

The HP 2930M Series 2930M 24 switch delivers dependable Layer 3 switching with integrated Class 6 PoE, making it a practical choice for networks that need both data and power distribution. It fits well in data centers, communication closets, and enterprise racks, supporting the infrastructure that keeps offices connected and efficient. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | R0M68-61001 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps (1 Gbps) |
| UpLink Ports | 4 x SFP (1G) uplinks |
| POE Support | PoE+ |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 130.95 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| NIM Slot | 1 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Latency | ~1.0–1.5 µs (typical, 64-byte frames) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16,000 (typical, model dependent) |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, HSRP, IGMP, MLD |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (Aruba/HPE), CLI (console/SSH), SNMP v1/v2c/v3, RMON |
| Security Features | 802.1X, ACLs, RADIUS/TACACS+ authentication, Port security/MAC authentication, DHCP Snooping |
| Security | Yes |
| Remote Management Protocol | HTTPS/HTTP,SSH,SNMPv1/v2c/v3,Console |
| Routing Protocol | Static,RIP |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 14.13 in (44 x 440 x 359 mm) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, UL, TUV |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP 2930M Series 2930M 24 is a managed network switch designed to deliver reliable, high-performance connectivity in enterprise environments. It is commonly found in office networks, data centers, and other professional settings where scalable and secure network management is critical. This switch is built for IT teams who need robust control over network traffic and power delivery to connected devices. Key Features
This switch is often deployed in medium to large businesses where multiple devices require both network connectivity and power. Its blend of speed, power delivery, and routing features helps maintain a smooth and reliable network, reducing downtime and simplifying maintenance for IT professionals. |
