| Product Overview |
|---|

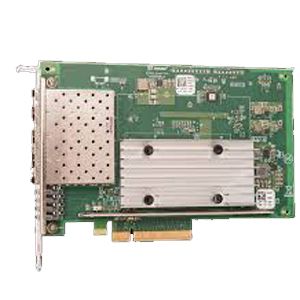

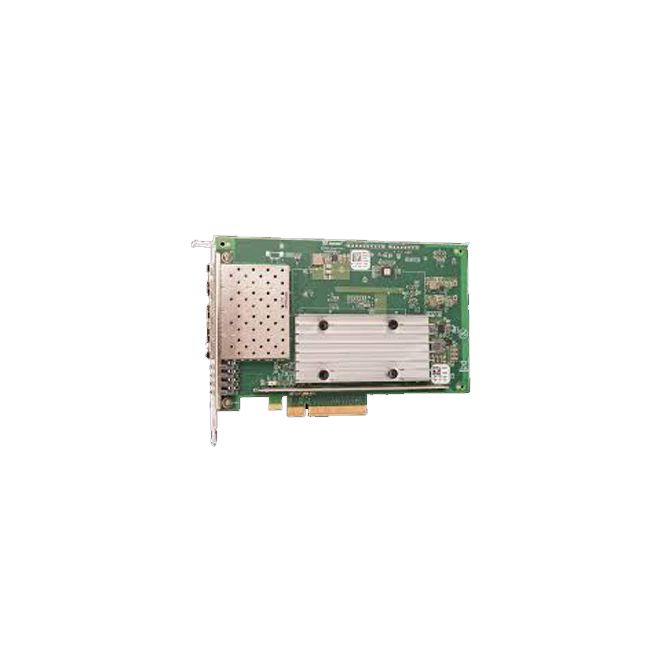

The Dell QL41164HFCU-DE is a quad-port 10 Gigabit Ethernet server adapter designed to enhance network connectivity in enterprise and data center servers. It fits into PCIe slots and offers multiple high-speed ports ideal for handling intense data flows and virtualization tasks. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | QL41164HFCU-DE |
| Technical Information | |
|---|---|
| Chipset/Controller | QLogic FastLinQ 41164 |
| Virtualization Support | SR-IOV, VMDq, VXLAN, NVGRE, Geneve, NetQueue, vNIC |
| Data Rate (Speed) | 10GbE |
| Data Center Bridging | Yes |
| Storage Over Ethernet | iSCSI, FCoE (Fibre Channel over Ethernet) |
| Interface (Bus) | PCIe 3.0 x8 |
| Number of Ports | 4-Port (Quad) |
| OS Compatibility | Windows Server 2022, VMware ESXi 8.0, RHEL, VMware ESXi |
| Network Management | SNMP, RMON, NC-SI, IPMI |
| Offload Support | RDMA, RoCE v2, iSCSI, FCoE, PXE Boot, Wake-on-LAN (WoL), TCP Stateless Offload, Jumbo Frames |
| Bracket Height | Full Height (Standard) |
| Connectivity & Physical | |
|---|---|
| Form Factor | Standard PCIe Card |
| Port Type | SFP+ |
| Cabling Type | AOC |
| Weight | 5.00 |
| Condition | Refurbished |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, UL, TUV, cULus, CSA |
| Product Description |
|---|
This Dell QL41164HFCU-DE server adapter offers four 10 GbE ports, providing robust network throughput for demanding data center and enterprise environments. It's commonly found in servers requiring high bandwidth for virtualization, storage, or heavy network traffic. Built for system administrators and IT professionals, this card helps maximize network efficiency and supports fast, reliable data transfers. Its PCIe connectivity makes it compatible with a wide range of server platforms. Key Features
This adapter is often deployed in data centers, enterprise servers, and virtualization hosts. It helps streamline network traffic and improve overall system responsiveness without overwhelming server resources. By integrating this network card, organizations can better manage their network loads and support growing demands for faster, more reliable connections. |
