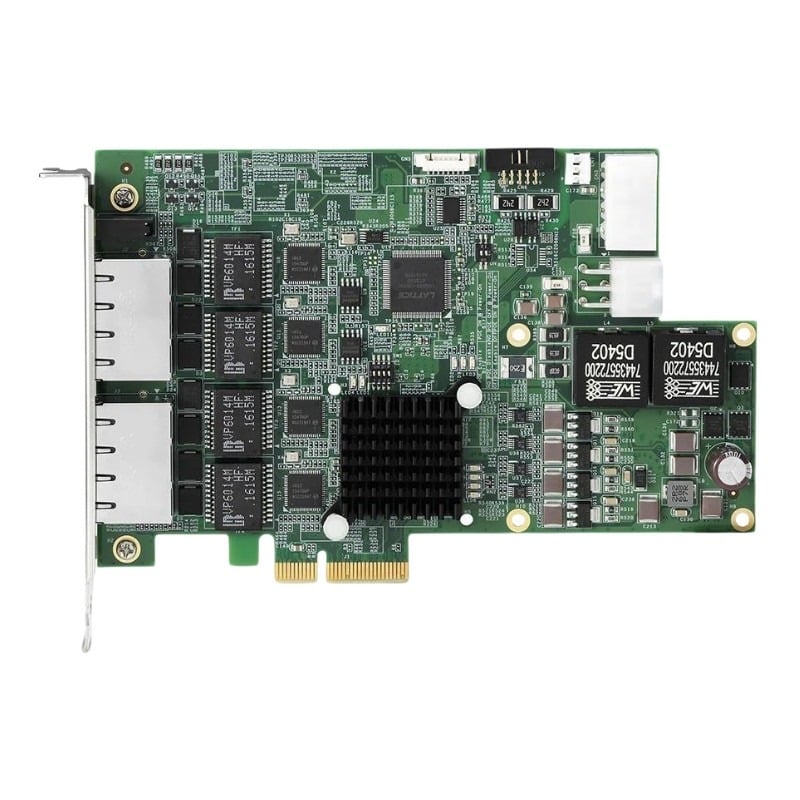

Name: PCIE-GIE74 ADLINK 4-Channel PCI Express GigE Vision PoE+ Frame Grabber
Brand: ADLINK
SKU: PCIE-GIE74
Price: 512.51 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The ADLINK PCIE-GIE74 4-Channel PCI Express GigE Vision PoE+ Frame Grabber is a powerful solution for industrial imaging and vision applications. With its four independent GigE ports, PoE+ support, and high-speed data transfer, it provides a reliable and efficient platform for machine vision systems, surveillance, and automation.

General Information
Brand	ADLINK
Part Number	PCIE-GIE74

Technical Information
Compatibility	Supports multiple GigE Vision cameras

Physical Characteristics
Form Factor	PCI Express x4
Dimensions	4.2" x 6.6
Weight	5.00
Condition	Refurbished

Product Description
The ADLINK PCIE-GIE74 is a high-performance 4-channel PCI Express GigE Vision PoE+ frame grabber, designed to support multiple GigE Vision cameras for industrial and machine vision applications. Featuring four independent Gigabit Ethernet ports, it provides seamless data acquisition with up to 1 Gb/s transfer rate per port, ensuring high-speed image processing. Equipped with IEEE 802.3at (PoE+) support, the PCIE-GIE74 delivers up to 30W per port, enabling direct power supply to connected cameras, reducing cable clutter and installation complexity. The total PoE power output can reach up to 120W, depending on the power configuration. The card also supports jumbo frames up to 9 kB, link aggregation for increased bandwidth, and IEEE 1588 (PTP) for precise synchronization in multi-camera setups. With its PCI Express x4 interface, the PCIE-GIE74 offers robust connectivity and is ideal for applications such as automated inspection, intelligent surveillance, and high-speed industrial imaging. Key Features Four independent Gigabit Ethernet ports for high-speed data transfer IEEE 802.3at (PoE+) support with up to 30W per port Multiple power configurations for up to 120W total PoE power Jumbo frame support up to 9 kB for enhanced efficiency Link aggregation support for increased bandwidth IEEE 1588 (PTP) synchronization for precise multi-camera operation PCI Express x4 form factor for easy integration

Use Cases
The ADLINK PCIE-GIE74 is tailored for industrial and commercial environments requiring high-throughput image acquisition from multiple GigE Vision cameras. It benefits system integrators and automation engineers who deploy machine vision solutions in settings demanding reliable power-over-Ethernet delivery alongside high data bandwidth. How It's Used: In automated manufacturing lines, enabling real-time inspection by connecting multiple cameras to monitor product quality under varying lighting conditions. Supporting traffic surveillance systems in smart city deployments where PoE+ simplifies installation by powering cameras through a single cable. Facilitating multi-camera setups in pharmaceutical production plants to ensure compliance through precise visual verification processes. Integrating with robotics vision systems in logistics warehouses to improve sorting accuracy via synchronized image capture. Deploying in research laboratories requiring simultaneous high-resolution image acquisition from various angles for detailed analysis. This frame grabber enhances operational efficiency by consolidating multiple high-bandwidth camera inputs with power delivery, reducing cabling complexity and improving system scalability. Its robust PCI Express interface supports intensive imaging workloads, enabling consistent performance in demanding industrial vision applications.
