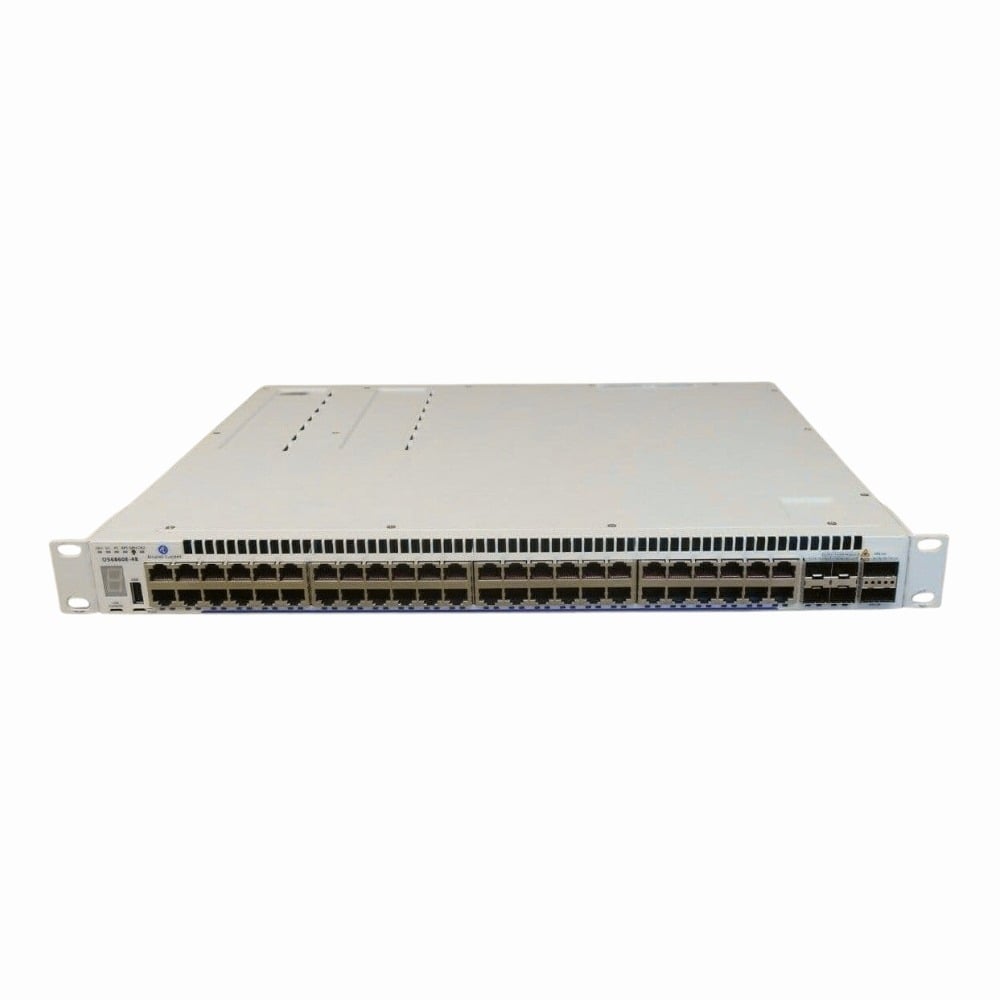

Name: OS6860-48 Alcatel-Lucent OmniSwitch 6860 48 x RJ-45 Ports 10/100/1000Base-T + 4 x SFP+ Ports 10GbE 1U Rack-mountable Layer 3 Managed Gigabit Ethernet Network Switch
Brand: Alcatel-Lucent
SKU: OS6860-48
Price: 1830.17 USD
Availability: InStock
Rating: 4.9 (108 reviews)

Product Overview
The OS6860-48 Alcatel-Lucent OmniSwitch is a managed Layer 3 switch that integrates 48 Gigabit RJ-45 ports with 4 10GbE SFP+ uplink ports. Designed for enterprise and data center environments, it fits neatly into a 1U rack space, delivering flexible connectivity and routing capabilities often needed for growing network demands.

General Information
Brand	Alcatel-Lucent
Part Number	OS6860-48
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 1000Base-X, 10G SFP+, RJ-45, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T,10G SFP+
UpLink Ports	4 x SFP+ (10GbE)
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	343.75 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP+,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000 entries

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols	Yes
Management Interfaces	Command Line Interface (CLI), Web GUI, SNMP v1/v2c/v3, SSH, Telnet, RMON
Security	SSH, SSL/HTTPS, RADIUS, TACACS+, SNMPv3, ACLs
Remote Management Protocol	SNMP, SSH, Telnet, HTTP, HTTPS
Routing Protocol	Static, RIP, OSPF, OSPFv3, BGP, VRRP

Power & Cooling
Fans	2 field-replaceable fans
Power	AC 100-240V, 50/60Hz

Physical Characteristics
Dimensions	44.45 x 440 x 430 mm (H x W x D) - 1U rack-mountable
Weight	4.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, cURus, CE, FCC, UL, TUV, cULus, CSA
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae (10GbE), IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.3ad

Product Description
The OS6860-48 is a versatile network switch designed for high-performance enterprise and data center use. It offers a mix of 48 Gigabit Ethernet ports and 4 10GbE SFP+ uplinks, allowing for flexible connectivity and high-speed data transfer. Often found in campus networks and core distribution layers, this switch handles both Layer 2 switching and Layer 3 routing functions. It's built for network administrators who need reliable management features and scalability in a compact 1U rack-mountable design. Key Features Advanced Layer 3 routing protocols to support complex network topologies High port density combining copper and fiber interfaces Comprehensive management and security features for enterprise networks Energy-efficient design reduces power consumption Compact 1U size suits standard rack deployments This switch is commonly deployed in enterprise wiring closets, aggregation points, and data centers where a blend of gigabit access and 10GbE uplinks is required. It helps maintain smooth and scalable network operations without consuming excessive space or power.
