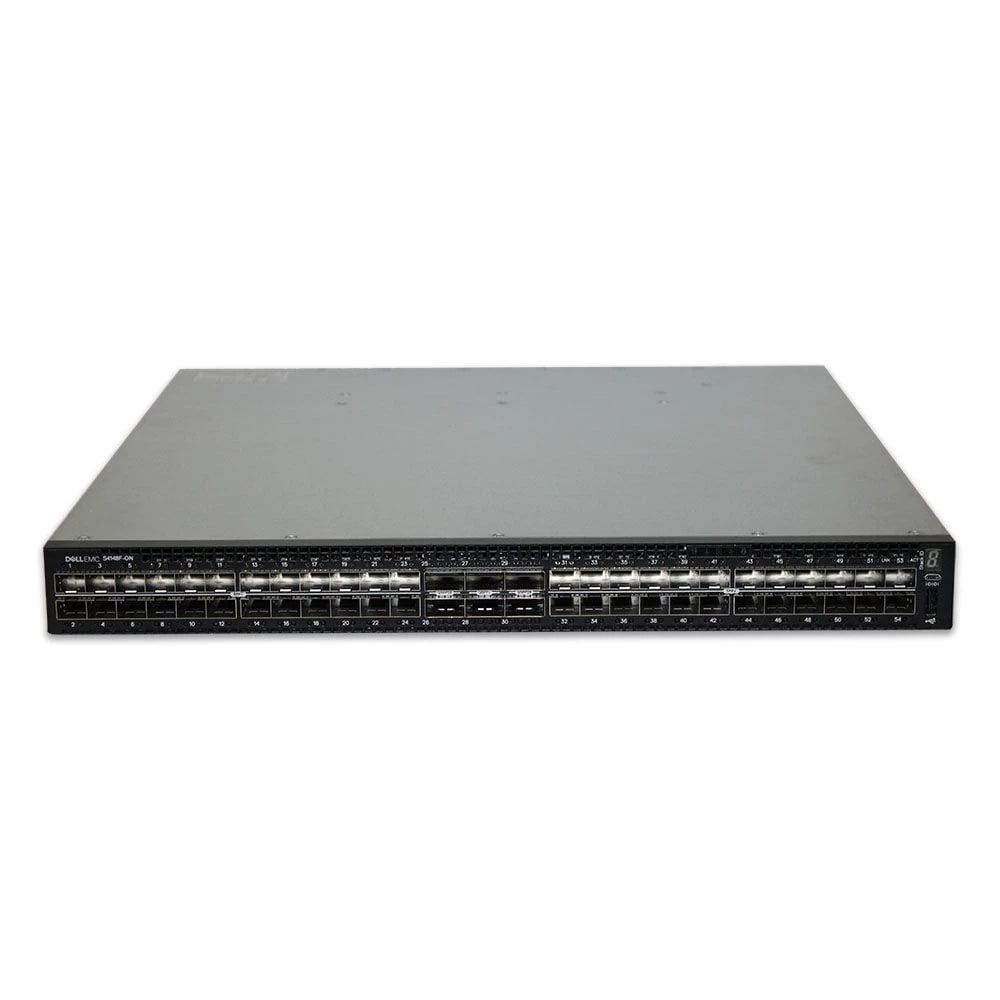

Name: N87GG Dell Networking S4100-ON Series S4148F-ON 48 x SFP+ Ports 10GBase-X + 2 x QSFP+ Ports 40GbE + 4 x QSFP28 Ports 100GbE Layer 3 Managed 1U Rack-mountable Gigabit Ethernet Network Switch
Brand: Dell
SKU: N87GG
Price: 2909.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Dell Networking S4148F-ON is a versatile rack-mount switch offering a blend of 10GbE, 40GbE, and 100GbE ports to meet varied connectivity needs. It's suited for data center aggregation layers and enterprise backbone networks, providing both performance and efficient space usage.

General Information
Brand	Dell
Part Number	N87GG
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	100G QSFP28, SFP+, QSFP / QSFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,40Gbps,100Gbps
UpLink Ports	6 (2 x QSFP+ 40GbE, 4 x QSFP28 100GbE)
POE Support	No
Switching Capacity	1.92 Tbps
Switch Forwarding Rate	3750 Mpps
VLAN Support	Yes
Max VLANs Supported	4096
Stackable	No
Layer Support	Layer 3
Connector Type	SFP+,QSFP+,QSFP28

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Serial Console (RJ-45),USB Console,SSH,Telnet,Web GUI,SNMP
Security Features	ACLs,802.1X,RADIUS/TACACS+,DHCP Snooping,IP Source Guard,Storm Control,DoS Protection
Security	802.1X,RADIUS,TACACS+
Remote Management Protocol	SSH,Telnet,HTTP,HTTPS,SNMP

Power & Cooling
Fans	Hot-swappable fans (3)

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV
Compliant Standards	IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3x,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w

Product Description
This Dell Networking S4100-ON Series S4148F-ON switch is designed to deliver high-density, multi-speed connectivity for data centers and enterprise networks. Commonly used in server aggregation and core layers, it supports a mix of 10GbE, 40GbE, and 100GbE connections to handle demanding traffic loads. Built for network administrators and IT teams managing complex infrastructures, this switch offers advanced Layer 3 features for routing, alongside flexible port configurations that accommodate various deployment needs. Key Features High port density with 48 SFP+ slots for 10GbE connections Two 40GbE QSFP+ ports enable fast uplinks and network expansion Four 100GbE QSFP28 ports support ultra-high throughput requirements Comprehensive Layer 3 capabilities simplify routing and traffic management Compact 1U rack-mount design saves valuable data center space This switch is often found in enterprise data centers where scalable bandwidth and reliable routing are essential. It fits well in environments requiring flexible port speeds to connect servers, storage, and other switches. By providing a solid foundation for network traffic, the S4148F-ON helps organizations maintain smooth communications and adapt to growing network demands without frequent hardware changes.

Use Cases
The Dell Networking S4148F-ON switch is designed for environments requiring high-density 10GbE connectivity alongside scalable 40GbE and 100GbE uplinks. It is particularly suited for enterprise IT infrastructures and data center aggregation layers where efficient rack space utilization and versatile port configurations are critical. How It's Used: Aggregating server and storage traffic in mid-sized data centers to streamline network performance and reduce bottlenecks. Providing high-speed backbone connectivity in enterprise campus networks where diverse link speeds and routing capabilities are needed. Supporting virtualization environments that demand low latency and scalable bandwidth for virtual machine migration and storage access. Enabling high-throughput connections in storage clusters requiring efficient Layer 3 routing and multi-gigabit uplinks. Deploying in edge computing sites with constrained rack space yet growing throughput requirements for IoT and remote processing workloads. By combining flexible port speeds and Layer 3 management, this switch facilitates scalable network architectures that can adapt to evolving bandwidth demands. Its rack-mount design and advanced features help IT teams optimize operational efficiency while maintaining robust connectivity across complex network topologies.
