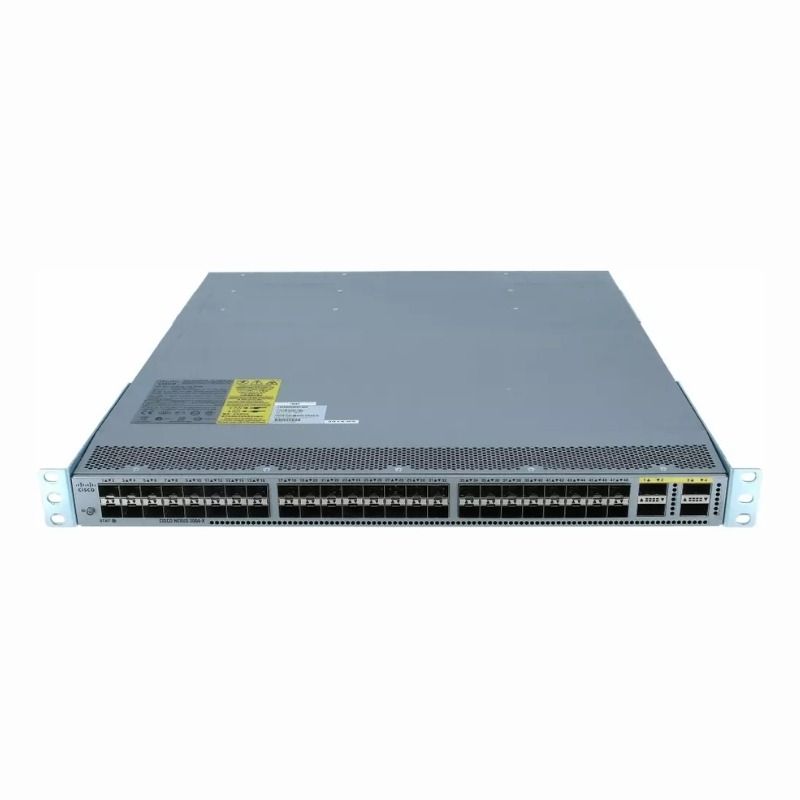

N3K-C3064PQ-10GX-1

The Cisco Nexus 3064-X (part number N3K-C3064PQ-10GX) is a high-performance, low-latency 10GbE switch designed for data center top-of-rack deployments. With 48 SFP+ ports supporting 1/10 Gigabit Ethernet and 4 QSFP+ ports configurable as 40GbE or 4x10GbE, it delivers unmatched versatility and density in a compact 1RU form factor. The switch offers a total switching capacity of 1.28 Tbps and a forwarding rate of 950 million packets per second (Mpps), ideal for environments demanding high throughput and low latency.

Designed for reliability and efficiency, it supports up to 128,000 MAC addresses and 4096 VLANs, with jumbo frame support up to 9216 bytes. Redundant, hot-swappable power supplies and a fan tray with redundant fans ensure continuous operation and ease of maintenance.

Key Features

• 48 x 1/10GbE SFP+ and 4 x 40GbE/4x10GbE QSFP+ ports

• 1.28 Tbps switching capacity and 950 Mpps forwarding rate

• Ultra-low latency for high-performance networking

• Supports up to 128,000 MAC addresses and 4096 VLANs

• Jumbo frame support with MTU up to 9216 bytes

• 1RU rack-mountable design with front-to-back airflow

• Redundant hot-swappable AC/DC power supplies and fan tray

• Ideal for top-of-rack, financial, or high-frequency trading environments

This switch is engineered for high-speed data center operations, offering robust features and flexibility that meet the rigorous demands of modern enterprise and cloud networking.
