| Product Overview |
|---|

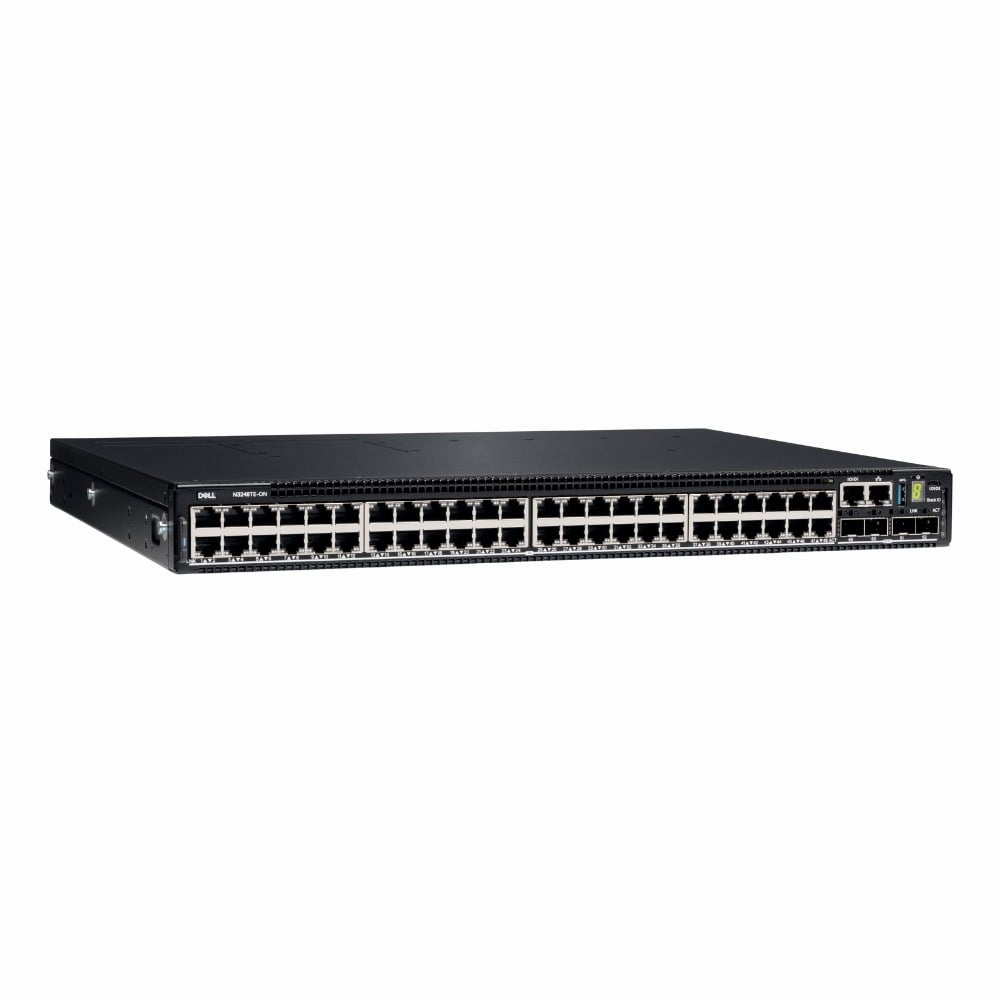

The N3248TE-ON-RA Dell EMC switch offers 48 Gigabit Ethernet ports with Layer 3 routing functions, making it suitable for enterprise and data center network layers. It provides manageable configuration options that help network teams maintain control over traffic flow and security in busy environments. |
| General Information | |
|---|---|
| Brand | Dell EMC |
| Part Number | N3248TE-ON-RA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 344 Mpps |
| DRAM | 1 GB |
| Flash Memory | 512 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Serial Console (RJ-45),USB Console,SSH,Web GUI (HTTP/HTTPS),SNMP |
| Security Features | Access Control Lists (ACL),802.1X,RADIUS,TACACS+,SSH,SNMPv3 |
| Remote Management Protocol | SSH,Telnet,HTTP,HTTPS,SNMP |
| Routing Protocol | Static,RIP,OSPF,BGP |
| Power & Cooling | |
|---|---|
| Power | 100-240 VAC, 50/60 Hz |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Product Description |
|---|
The N3248TE-ON-RA is a powerful Ethernet switch designed to handle high traffic in demanding network settings. It’s built for environments that require robust connectivity and efficient traffic management, like data centers and large enterprise networks. The switch supports Layer 3 features, enabling it to route traffic intelligently and reduce network congestion. Commonly used in enterprise data centers and campus networks, this switch is often found at the core or distribution layer, where reliability and speed are critical. Network administrators benefit from its manageable design, which allows detailed configuration to optimize performance and security. Key Features
This switch is typically deployed in environments requiring a balance of high port density and advanced routing capabilities. It plays a crucial role in managing traffic efficiently within enterprise networks, helping to maintain smooth communication between different network segments. |
