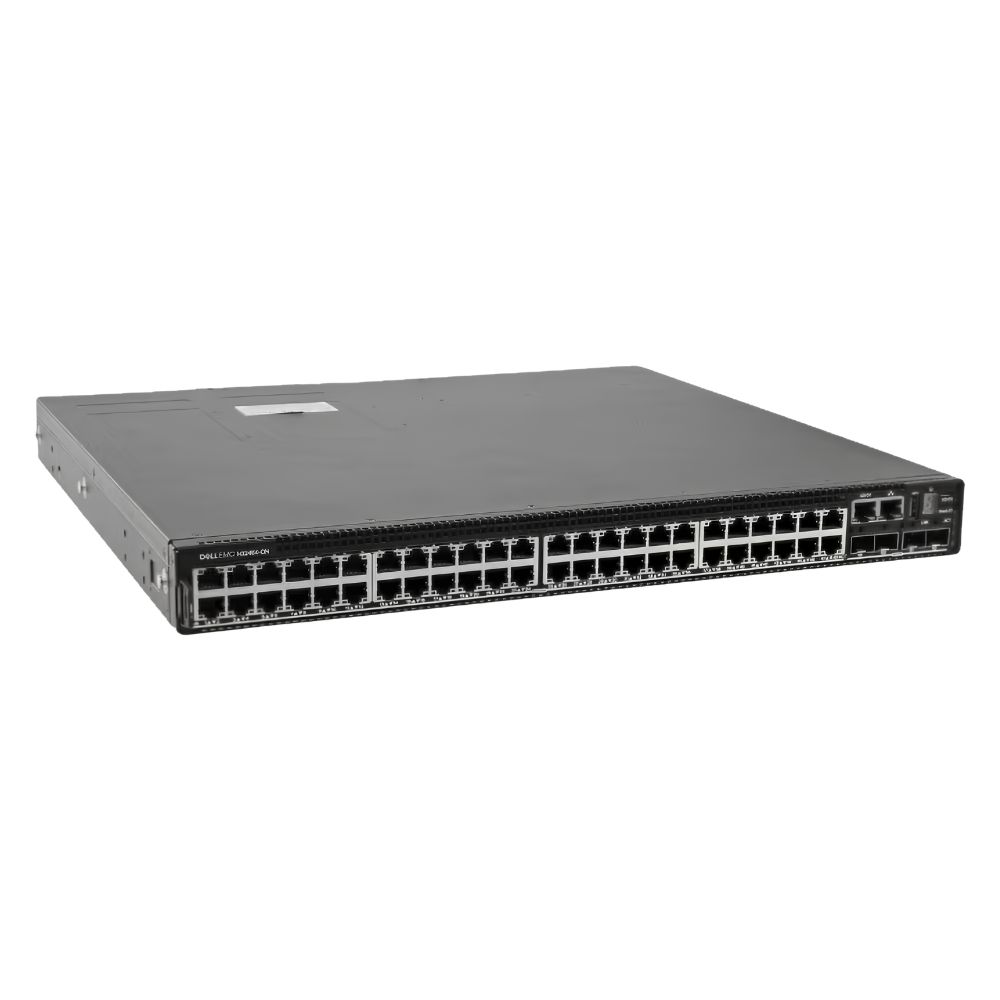

Name: N3248PXE-ONF Dell 48-Port 1GbE PoE+ Network Switch with 4x 10GbE Uplinks
Brand: Dell
SKU: N3248PXE-ONF
Price: 10887.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The N3248PXE-ONF Dell PowerSwitch N3200-ON provides a solid foundation for network access and aggregation. It integrates a large number of Gigabit Ethernet ports with enhanced uplink speeds, fitting well into rack deployments and edge network layers. Its support for PoE+ allows powering of network devices directly, while its open networking design supports adaptable software environments.

General Information
Brand	Dell
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
VLAN Support	Yes
Max VLANs Supported	4096
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols	Yes
Management Interfaces	Web GUI,Command Line Interface (CLI),SNMP,SSH,REST API,Serial Console,USB Console
Security Features	ACLs,802.1X,RADIUS,TACACS+,DHCP Snooping,Dynamic ARP Inspection,IP Source Guard,Port Security
Management Type	Out-of-band and In-band
Remote Management Protocol	SNMP,SSH,REST
Routing Protocol	Static,OSPF,BGP,VRRP,IGMP,PIM-SM,Policy-Based Routing (PBR)

Power & Cooling
Power	740W PoE budget (internal AC power supply)

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,LLDP

Product Description
The N3248PXE-ONF Dell PowerSwitch N3200-ON is a high-performance network switch designed for modern data networks. It offers a versatile combination of 1GbE ports and 10GbE uplinks, making it suitable for environments demanding reliable connectivity and scalability. Often found in enterprise and campus network infrastructures, this switch is built to handle dense wiring closets and server access layers. Network administrators and IT professionals benefit from its robust feature set and flexible deployment options. Key Features Provides 48 Gigabit Ethernet ports plus 4 SFP+ 10GbE uplink ports Delivers Power over Ethernet Plus (PoE+) to support connected devices Includes comprehensive Layer 2 and Layer 3 routing protocols Equipped with energy-saving mechanisms to reduce power consumption Supports open networking with ONF-compatible operating system In practical terms, this switch plays a fundamental role in maintaining network performance and reliability. It balances throughput and power delivery while offering the flexibility needed for evolving network demands. Its combination of features ensures consistent operation across multiple network layers, supporting a wide range of connected devices and applications.

Use Cases
This network switch is typically deployed in enterprise campus networks and medium to large data centers. It suits locations that require dense port configurations combined with high uplink capacity and power delivery to connected devices. IT teams managing corporate LANs or edge deployments find this switch a practical choice for flexible and scalable network infrastructure. How It's Used: Aggregating user access connections in enterprise wiring closets Providing power and connectivity to IP phones, cameras, and wireless APs Serving as a top-of-rack switch in data center environments Supporting campus network distribution layers with Layer 3 routing Facilitating open networking deployments with customizable OS options By combining high port density, PoE+ support, and uplink versatility, this switch assists in keeping networks efficient and adaptable. It supports the performance and scalability requirements common in demanding IT environments without unnecessary complexity.
