| Product Overview |
|---|

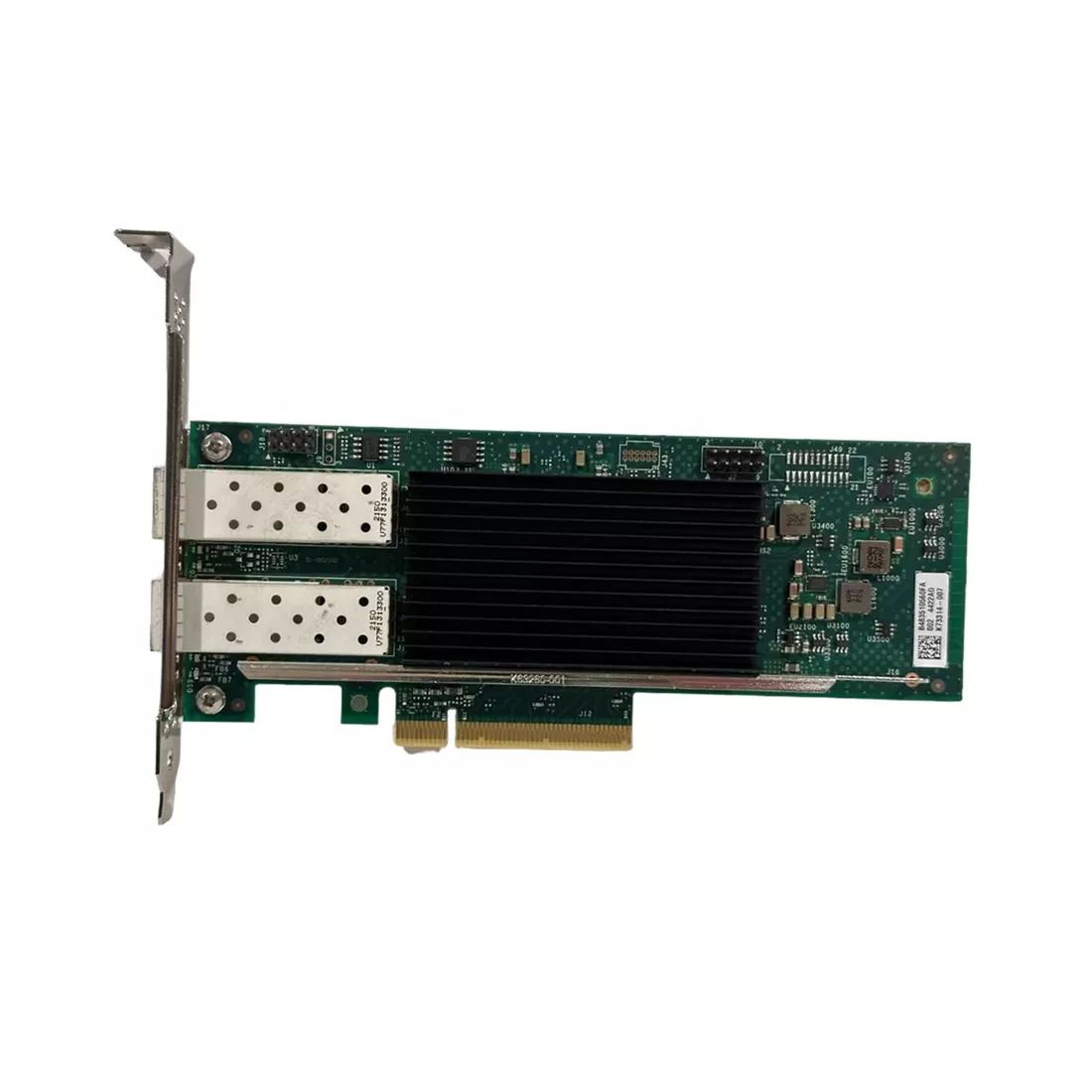

The MWRX3 Dell E810XXVDA2 is a dual-port 25GbE SFP28 network adapter designed to fit into PCIe 4.0 x8 slots in Dell servers. It offers reliable, high-speed Ethernet connectivity suitable for data centers and demanding network environments, balancing performance and compact form factor. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | MWRX3 |
| Technical Information | |
|---|---|
| Chipset/Controller | Intel Ethernet Controller E810 |
| Virtualization Support | SR-IOV, VMDq, VXLAN, NVGRE, Geneve, NetQueue, vNIC |
| Data Rate (Speed) | 25GbE |
| Data Center Bridging | Yes |
| Storage Over Ethernet | iSCSI, NFS, SMB Direct |
| Interface (Bus) | PCIe 4.0 x8 |
| Number of Ports | 2-Port (Dual) |
| OS Compatibility | Windows Server 2022, VMware ESXi 8.0, RHEL |
| Network Management | SNMP, RMON, NC-SI, IPMI |
| Offload Support | RDMA, RoCE v2, iSCSI, FCoE, PXE Boot, Wake-on-LAN (WoL), iWARP, TCP Stateless Offload, Jumbo Frames |
| Bracket Height | Low Profile (Half Height) |
| Connectivity & Physical | |
|---|---|
| Form Factor | Standard PCIe Card |
| Port Type | SFP28 |
| Cabling Type | AOC |
| Max Power Consumption | Typical ~9W, Max ~12W |
| Dimensions | 68.9 x 167.6 x 20 mm (H x W x D) |
| Weight | 5.00 |
| Condition | Refurbished |
| Miscellaneous | |
|---|---|
| Assembly Required | Yes |
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, UL, TUV, cULus, CSA, cUL |
| Product Description |
|---|
This network adapter provides two 25 Gigabit Ethernet SFP28 ports, enabling rapid data exchange for demanding network environments. Often found in data centers and enterprise servers, it supports high-throughput applications and virtualized workloads. Built for Dell servers, it fits into a PCI Express 4.0 x8 slot, delivering enhanced bandwidth and low latency. IT professionals managing server connectivity and infrastructure benefit from its efficient design and reliable performance. Key Features
Typically, this adapter is deployed in enterprise data centers where space is limited but high network capacity is critical. It plays a key role in improving server communication and handling bandwidth-intensive applications efficiently. |
