| Product Overview |
|---|

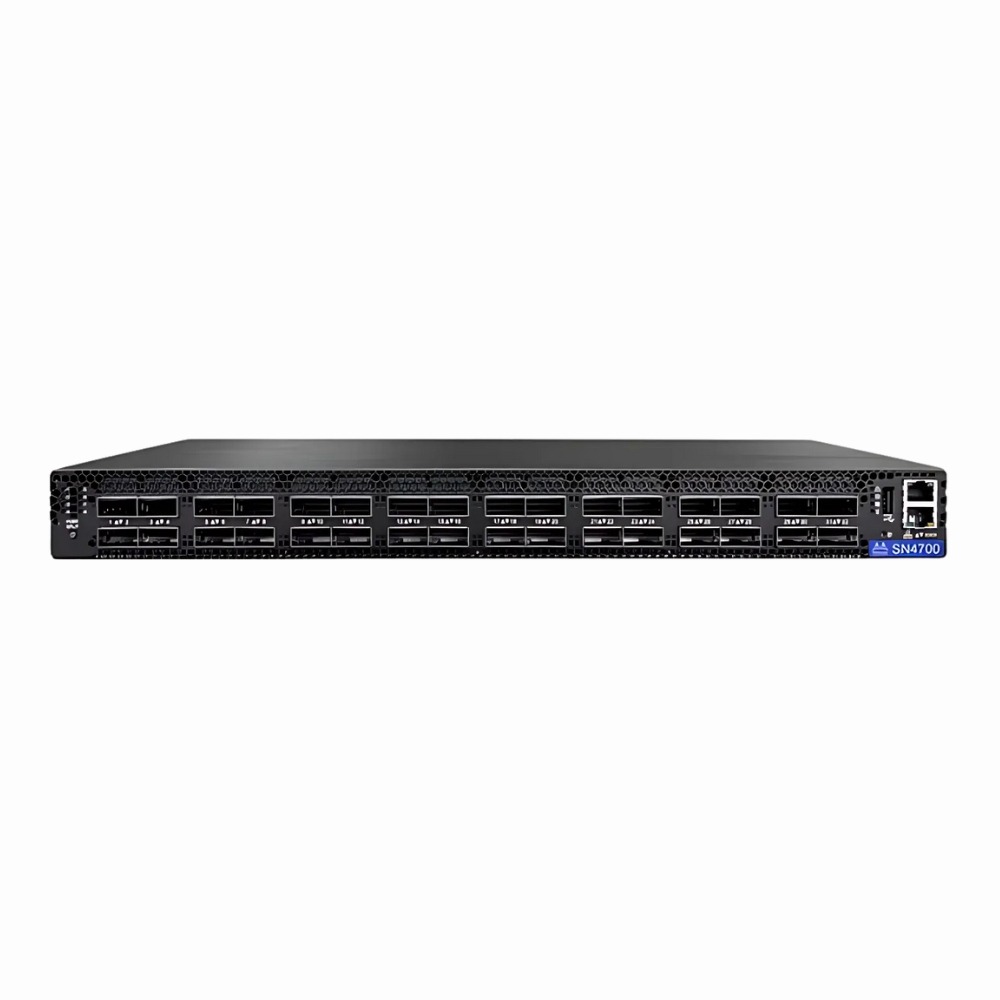

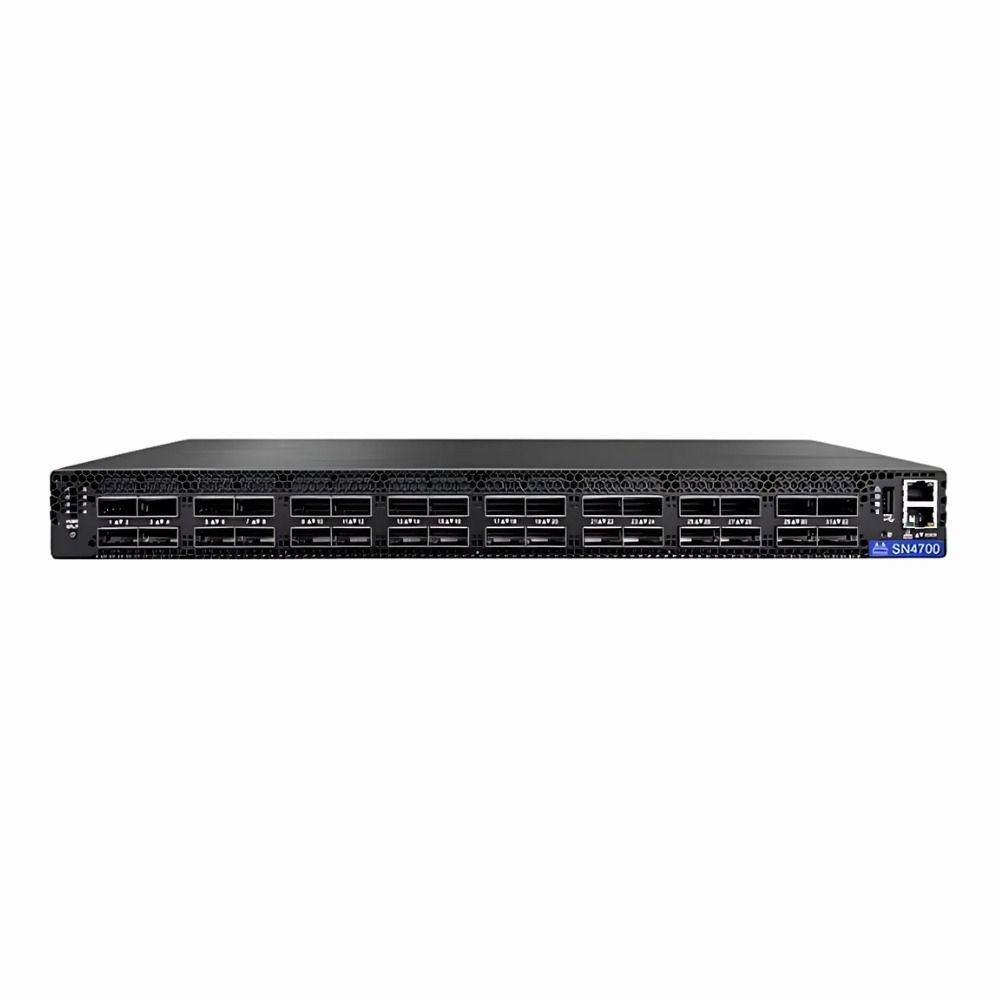

The MSN4700-WS2RO is a high-capacity network switch designed to provide fast, reliable connections within data centers and enterprise environments. It fits into a 1U rack space and supports Layer 3 management, making it suitable for complex network topologies and heavy data loads. |
| General Information | |
|---|---|
| Brand | Mellanox |
| Part Number | MSN4700-WS2RO |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 32 x 400GbE (QSFP-DD) |
| Number of Ports | 32-Ports |
| Port Type | QSFP / QSFP+, USB Console, Serial Console (RJ-45) |
| Port Speed | 400GbE,200GbE,100GbE,50GbE,25GbE |
| UpLink Ports | 32 x 400GbE (QSFP-DD) |
| POE Support | No |
| Switching Capacity | 25.6 Tbps |
| Switch Forwarding Rate | 50000 Mpps (64-byte packets) |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | QSFP / QSFP+,USB Console,Serial Console (RJ-45) |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Management Interfaces | CLI (SSH),Web GUI,Serial Console (RJ-45),USB Console,SNMP,REST API,gNMI,NETCONF |
| Remote Management Protocol | SSH,SNMP,REST API,NETCONF,gNMI |
| Power & Cooling | |
|---|---|
| Power Supply | Redundant, hot-swappable power supply options (AC; model dependent) |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3bs,IEEE 802.3by |
| Product Description |
|---|
This MSN4700-WS2RO switch from Mellanox's Spectrum-3 series is built for environments demanding high bandwidth and reliable performance. It is often found in large data centers and enterprise networks where fast, low-latency connections are critical. Designed to manage complex network architectures, it offers scalable connectivity and precise traffic control. Network engineers and IT teams benefit from its robust Layer 3 features and compact 1U form factor that fits seamlessly into existing racks. Key Features
This switch is typically deployed in data centers to connect servers, storage, and other network devices. It helps maintain smooth data flows and supports demanding applications like cloud services and high-performance computing. |
| Use Cases |
|---|
The MSN4700-WS2RO switch is designed to meet the needs of high-bandwidth and low-latency network environments. How It's Used:
Its combination of speed, manageability, and efficient cooling makes it a versatile choice for modern network deployments. |
