| Product Overview |
|---|

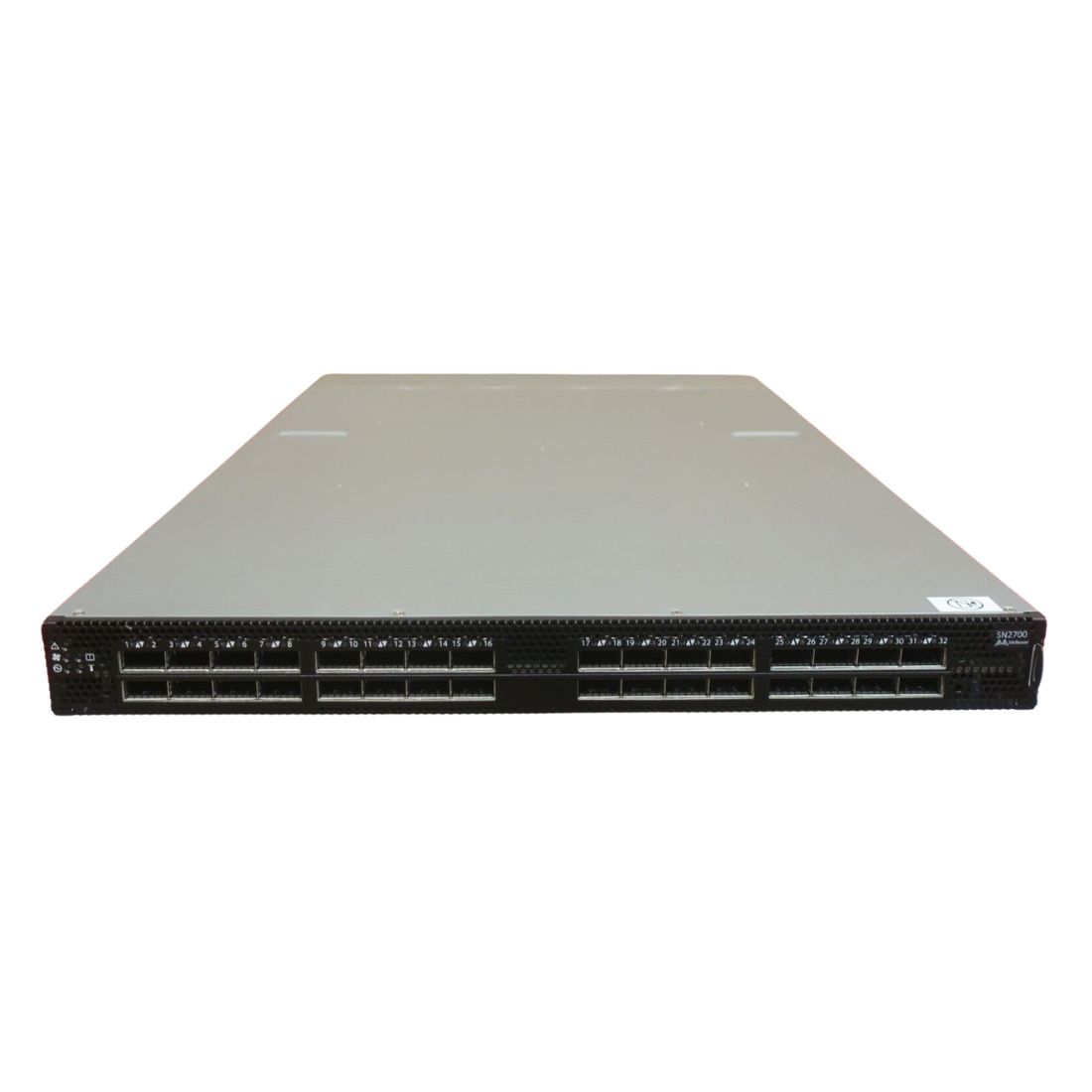

The MSN2700-CS2ROS switch offers 32 ports of 100GbE connectivity powered by Mellanox's Spectrum ASIC, delivering a balance of speed and low latency. Its support for Open Ethernet makes it suitable for those seeking flexibility in their network operating systems. This model is a common choice in data center environments where high throughput and modular software options are priorities. |
| General Information | |
|---|---|
| Brand | Mellanox |
| Part Number | MSN2700-CS2ROS |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 32 |
| Number of Ports | 32-Ports |
| Port Speed | 100GbE (QSFP28) |
| Switching Capacity | 6.4 Tbps |
| Switch Forwarding Rate | 6.4 Tbps |
| Max VLANs Supported | 1-4094 |
| Connector Type | QSFP28 |
| Performance | |
|---|---|
| Latency | < 1 µs |
| Jumbo Frame Support | Up To 9216 Bytes |
| Management and Configuration | |
|---|---|
| Security | ACLs, RADIUS, TACACS+, 802.1X |
| Remote Management Protocol | SSH, SNMP, REST, NETCONF |
| Routing Protocol | Static, BGP, OSPF |
| Power & Cooling | |
|---|---|
| Fans | 4 hot-swappable redundant fans |
| Power | AC 100-240V, 50-60Hz |
| Physical Characteristics | |
|---|---|
| Weight | 3.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Assembly Required | Yes |
| Compliance Standards | WEEE, RoHS, cURus, CE, FCC, CCC, UL, TUV, cULus, CSA, cUL |
| Product Description |
|---|
The MSN2700-CS2ROS is a robust 32-port 100 Gigabit Ethernet switch designed for demanding network environments. It's commonly used in data centers and cloud infrastructures where high bandwidth and low latency are critical for operations. Network engineers and system architects often find it valuable for building scalable, open networking solutions. Key Features
This switch is frequently deployed in hyperscale data centers and enterprises aiming for flexible, high-capacity networks. It plays a key role in handling large volumes of data while enabling diverse software environments, helping teams customize their network infrastructure efficiently. |
