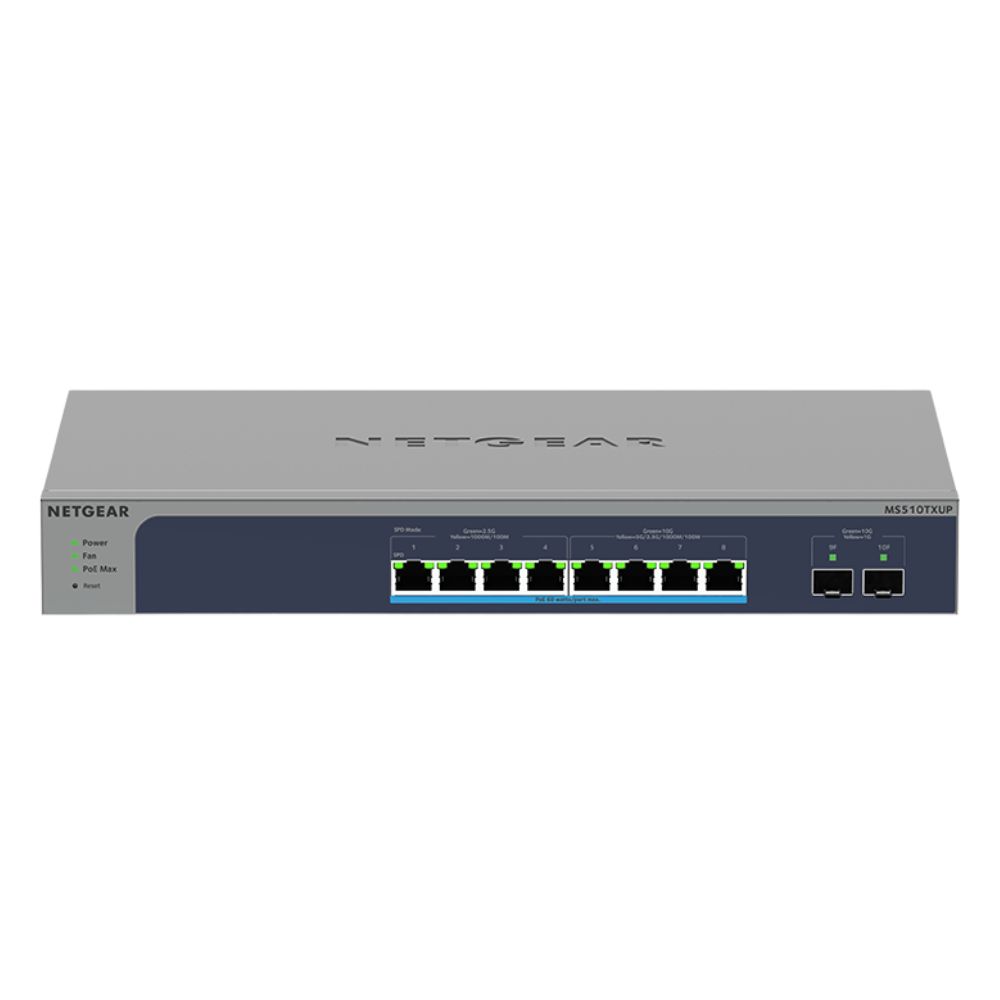

Name: MS510TXUP-100EUS Netgear 8-Port PoE++ 295W 4x2.5G 4x10G L2+ Switch
Brand: Netgear
SKU: MS510TXUP-100EUS
Price: 1.00 USD
Availability: InStock
Rating: 4.8 (124 reviews)

Product Overview
The Netgear MS510TXUP-100EUS switch provides 8 PoE++ ports delivering a total power of 295W, four 2.5Gbps ports, and four 10Gbps uplink ports. It supports Layer 2+ features including enhanced network segmentation and security, making it suitable for mid-sized enterprise networks requiring multi-gigabit connectivity and power over Ethernet capabilities.

General Information
Brand	Netgear
Condition	Refurbished

Technical Information
Switch Type	Managed Switch, PoE Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	8
Number of Ports	12-Ports
Port Type	10G SFP+, 2.5GBase-T, RJ-45, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T,2.5GBase-T,10G SFP+
UpLink Ports	4 x 10G SFP+
POE Support	PoE++
Switching Capacity	120 Gbps
Switch Forwarding Rate	234.38 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 2+
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	16K

Management and Configuration
Routing Protocols	Static
Remote Protocols	Web GUI,CLI (SSH),SNMPv1/2/3,Cloud (NETGEAR Insight),RMON
Management Interfaces	Web Browser (HTTP/HTTPS),CLI (SSH),SNMP,Serial Console (RJ-45),USB Console
Security Features	802.1X,ACLs,Port Security,Storm Control,DHCP Snooping,ARP Inspection,DoS Prevention,IP-MAC-Port Binding
Management Type	Smart Managed
Remote Management Protocol	HTTP,HTTPS,SSH,TELNET,SNMPv1/2/3
Routing Protocol	Static

Power & Cooling
Power	295W PoE budget
Power Supply	Internal AC power supply (100-240V)

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL

Product Description
The Netgear MS510TXUP-100EUS is an 8-port Layer 2+ managed switch with Power over Ethernet Plus Plus (PoE++) capability. It provides 8 PoE++ ports delivering a total power budget of 295W, enabling the connection of various powered devices such as IP cameras, access points, and VoIP phones. The switch also features 4 ports supporting 2.5Gbps and 4 ports supporting 10Gbps uplinks, offering flexible and high-bandwidth network aggregation options. This switch is typically deployed in enterprise or mid-sized business environments where multiple powered devices require reliable connectivity and where higher bandwidth uplinks are necessary for data aggregation and distribution within the network. Key Features 8 PoE++ ports with a 295W power budget. 4 ports supporting 2.5Gbps speeds. 4 ports supporting 10Gbps speeds. Layer 2+ management features. Supports network segmentation and enhanced security functions. The MS510TXUP-100EUS serves as a central network component, facilitating both data transfer and power delivery over Ethernet cables. Its combination of PoE++ and multi-gigabit uplink ports supports network growth and device diversity while maintaining manageable network segmentation and performance.

Use Cases
This switch is ideal for mid-sized business networks that require centralized power delivery and high-speed uplinks for connected devices such as IP cameras, Wi-Fi access points, and VoIP phones. It supports environments with growing network demands and diverse powered device deployments. How It's Used: Connecting multiple PoE++ powered devices in office or campus environments. Aggregating network traffic via 2.5Gbps and 10Gbps uplink ports to core switches or routers. Deploying in scenarios needing Layer 2+ segmentation and security features. Supporting video surveillance networks requiring power and high bandwidth. Providing network access in wireless access point dense environments. The MS510TXUP-100EUS functions as a versatile network access switch capable of supplying power and handling multi-gigabit data throughput. It helps maintain organized network topology and supports the operational needs of devices across various professional settings.

FAQ's
What does PoE++ mean on the MS510TXUP-100EUS? PoE++ refers to Power over Ethernet Plus Plus, which provides higher power levels per port, enabling devices like high-end cameras or access points to receive sufficient power over Ethernet cables. How many uplink ports does the MS510TXUP-100EUS have and at what speeds? The switch includes 8 uplink ports: 4 supporting 2.5 Gbps speeds and 4 supporting 10 Gbps speeds, allowing flexible high-speed connections to other network devices. What type of network management does this switch support? The MS510TXUP-100EUS supports Layer 2+ management features, enabling advanced network segmentation, VLAN configuration, and security controls suitable for business networks. Can the switch power all ports simultaneously? The switch delivers a total PoE budget of 295W across its 8 PoE++ ports; powering all ports simultaneously depends on the power requirements of connected devices not exceeding this total budget. Is the MS510TXUP-100EUS suitable for video surveillance networks? Yes, its PoE++ capability and multi-gigabit uplinks make it appropriate for powering and connecting IP cameras in surveillance deployments requiring substantial power and bandwidth. Does this switch support VLAN and network segmentation? Yes, with Layer 2+ features, the switch supports VLANs and other mechanisms for segmenting and securing network traffic.
