| Product Overview |
|---|

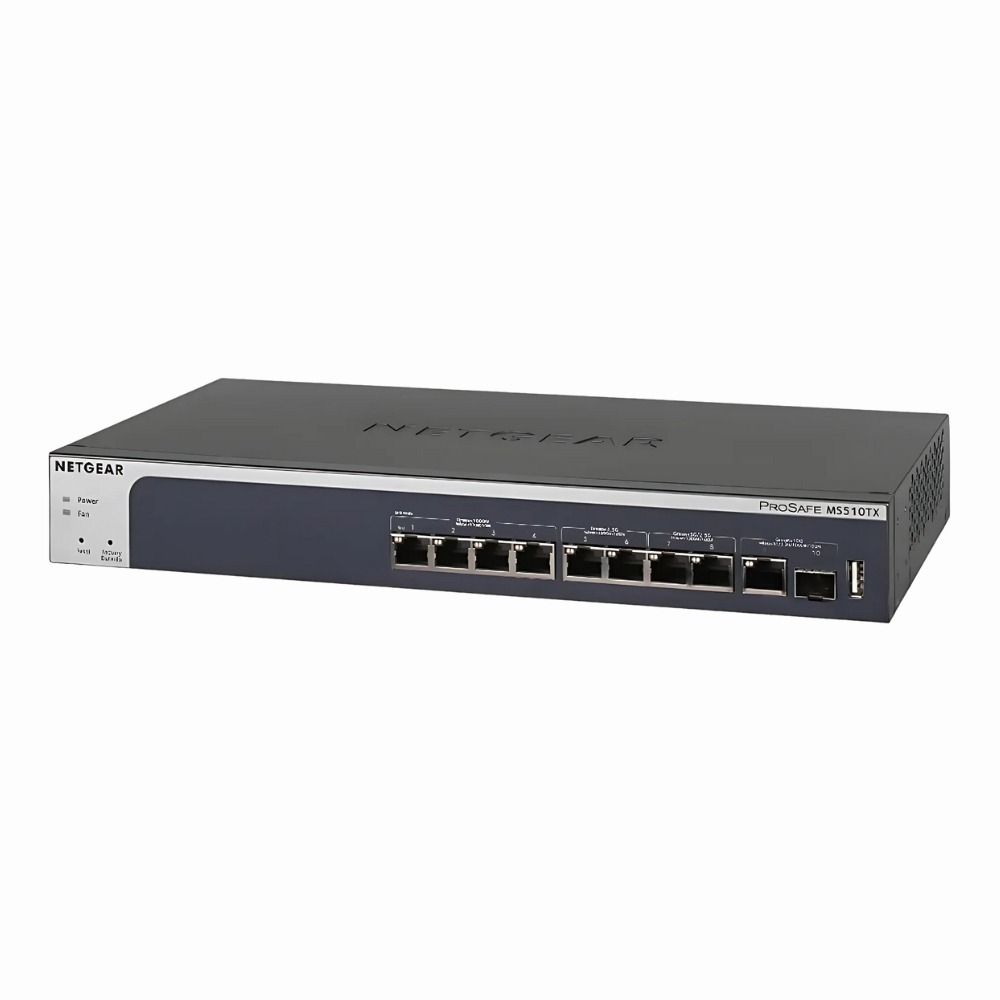

The MS510TX switch offers a versatile mix of gigabit and multi-gigabit copper ports alongside a dedicated 10G uplink and SFP+ connectivity. It fits well in networks that need to accommodate different device speeds and types, providing routing functions and management features that help keep traffic smooth and reliable. |
| General Information | |
|---|---|
| Brand | Netgear |
| Part Number | MS510TX |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 10 |
| Number of Ports | 10-Ports |
| Port Type | 10/100/1000Base-T, 10GBase-T, 2.5GBase-T, 5GBase-T, SFP+ |
| Port Speed | 1G,2.5G,5G,10G |
| UpLink Ports | 1 x 10G Copper (dedicated), 1 x 10G SFP+ |
| POE Support | No |
| Switching Capacity | 78 Gbps |
| Switch Forwarding Rate | 152.34 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web (HTTP/HTTPS), CLI (SSH), SNMP v1/v2c/v3, Telnet, RMON, REST API (Insight) |
| Security Features | 802.1X, ACLs, Port Security, MAC Filtering, DHCP Snooping, IP Source Guard, BPDU Guard, Storm Control, RADIUS Authentication |
| Security | Yes |
| Remote Management Protocol | SSH,HTTPS,SNMP,TELNET,REST |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Weight | 4.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p |
| Product Description |
|---|
The MS510TX is a Layer 3 managed gigabit Ethernet switch designed to handle a range of networking demands. It's often found in small to medium-sized business environments where a mix of standard and multi-gigabit connections is needed to support diverse devices and workloads. Built for network administrators who require granular control and scalability, this switch integrates advanced management features to efficiently direct traffic and maintain performance. It suits office networks, data aggregation points, and edge computing setups. Key Features
This switch is commonly deployed in environments where multiple device types and speeds coexist, such as mixed wired and wireless networks. It plays a key role in improving network responsiveness and supports a growing number of bandwidth-intensive applications. |
