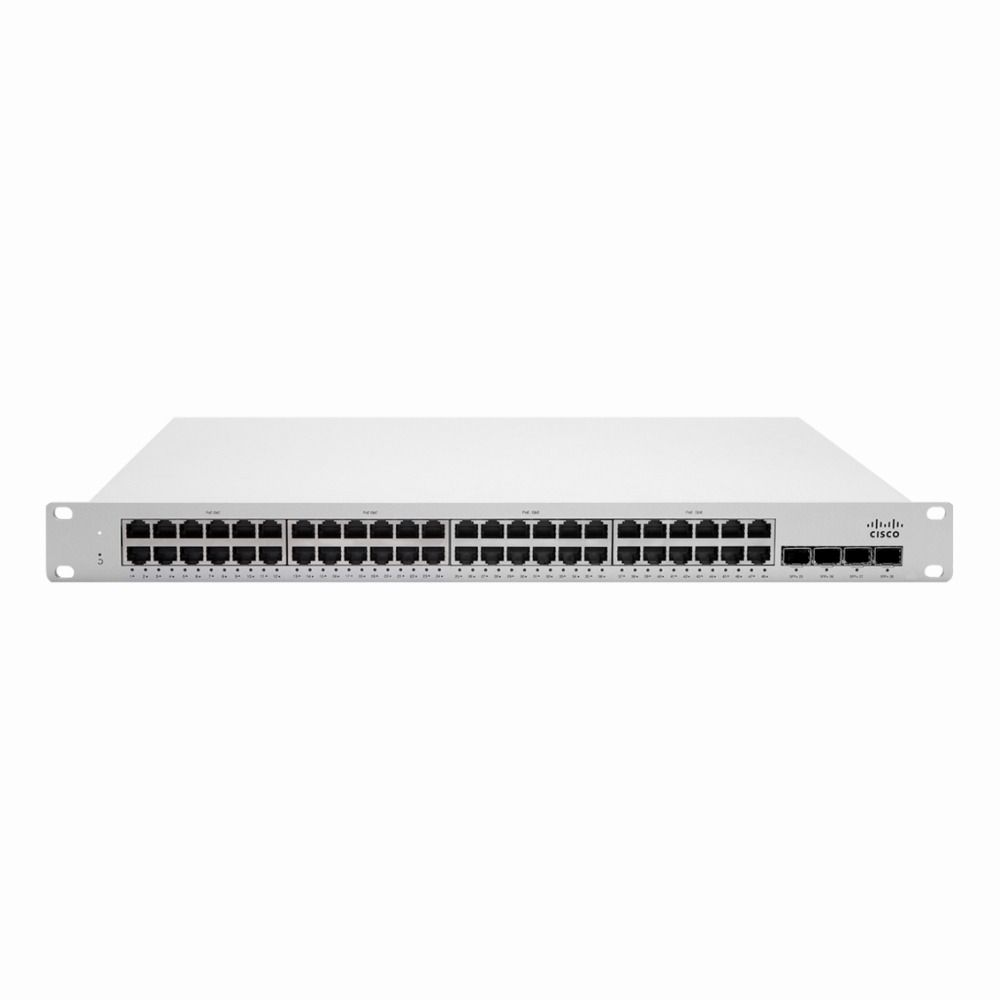

MS250-48FP-HW Cisco Meraki 48-Port PoE+ Gigabit Switch with 4 SFP+ Uplinks

SKU:
MS250-48FP-HW
Weight: 5.00 lbs
Condition: Refurbished
  • 48 PoE+ Gigabit Ethernet ports providing power and data over a single cable
  • 4 SFP+ uplink ports for high-speed fiber connections
  • 2 stacking ports to connect multiple switches for expanded capacity
  • Layer 3 managed switch with advanced routing capabilities
In stock

$329.00

Product Overview

The Cisco Meraki MS250-48FP-HW is a managed Layer 3 switch that provides both data and power over Ethernet ports, designed to fit into enterprise networks requiring scalable and reliable connectivity. It supports fast uplinks and stacking, making it a practical choice for growing network environments.

General Information

Brand Cisco
Part Number MS250-48FP-HW
Condition Refurbished

Technical Information

Switch Ports 48-Ports
Number of Ports 48-Ports
Port Type 10/100/1000Base-T, 10G SFP+, Serial Console (RJ-45)
Port Speed 10/100/1000Base-T
UpLink Ports 4 x 10G SFP+; 2 x Stacking ports
POE Support PoE+
Switching Capacity 176 Gbps
Switch Forwarding Rate 343.7 Mpps
DRAM 1 GB
Flash Memory 128 MB
VLAN Support Yes
Max VLANs Supported 4094
Stackable Yes
Layer Support Layer 3
Connector Type RJ-45,SFP+,Serial Console (RJ-45)

Performance

Latency Wire-speed switching; typical latency < 2 µs (64-byte frames)
Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 32,000 MAC addresses

Management and Configuration

Routing Protocols Static
Management Interfaces Meraki Dashboard (Web), REST API, SNMP
Security Features 802.1X,RADIUS,ACLs,Port security,DHCP Snooping,Storm control
Remote Management Protocol HTTPS (Meraki Dashboard), REST API, SNMP
Routing Protocol Static routing, OSPF

Power & Cooling

Fans 2 (variable-speed, front-to-back)
Power 100-240VAC, 50-60Hz

Physical Characteristics

Dimensions 44 mm x 442 mm x 360 mm (1U) (H x W x D)
Weight 5.00
Operating Temperature 0°C to 40°C (32°F to 104°F)

Miscellaneous

Eco Friendly Yes
Assembly Required Yes
Compliance Standards WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3z,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3az


Product Description

The Cisco Meraki MS250-48FP-HW is a versatile network switch designed to deliver robust performance in enterprise environments. It handles both power and data transmission through its 48 PoE+ ports, making it ideal for powering devices such as IP cameras, VoIP phones, and wireless access points directly from the switch. Often found in mid-sized to large networks, it supports high-speed uplinks and stacking, allowing seamless integration and scalability.

Key Features

  • Offers 48 PoE+ ports capable of delivering up to 30W per port
  • Equipped with 4 SFP+ ports for 10Gbps fiber connectivity
  • Supports stacking through 2 dedicated ports to simplify management
  • Includes Layer 3 functionalities for inter-VLAN routing and static routing
  • Compact 1U rack-mount design fits well in standard server racks

This switch is typically deployed in network closets or data centers where reliable power delivery and high bandwidth are required. Its stacking capability helps network administrators expand their infrastructure without adding management complexity. The MS250-48FP-HW brings a balance of power, speed, and management features that suit organizations looking to support a growing number of connected devices efficiently.
