Name: MS225-48FP-HW Cisco Meraki 48-Port PoE+ Gigabit Switch 4 SFP+ 2 Stacking
Brand: Cisco
SKU: MS225-48FP-HW
Price: 499.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview

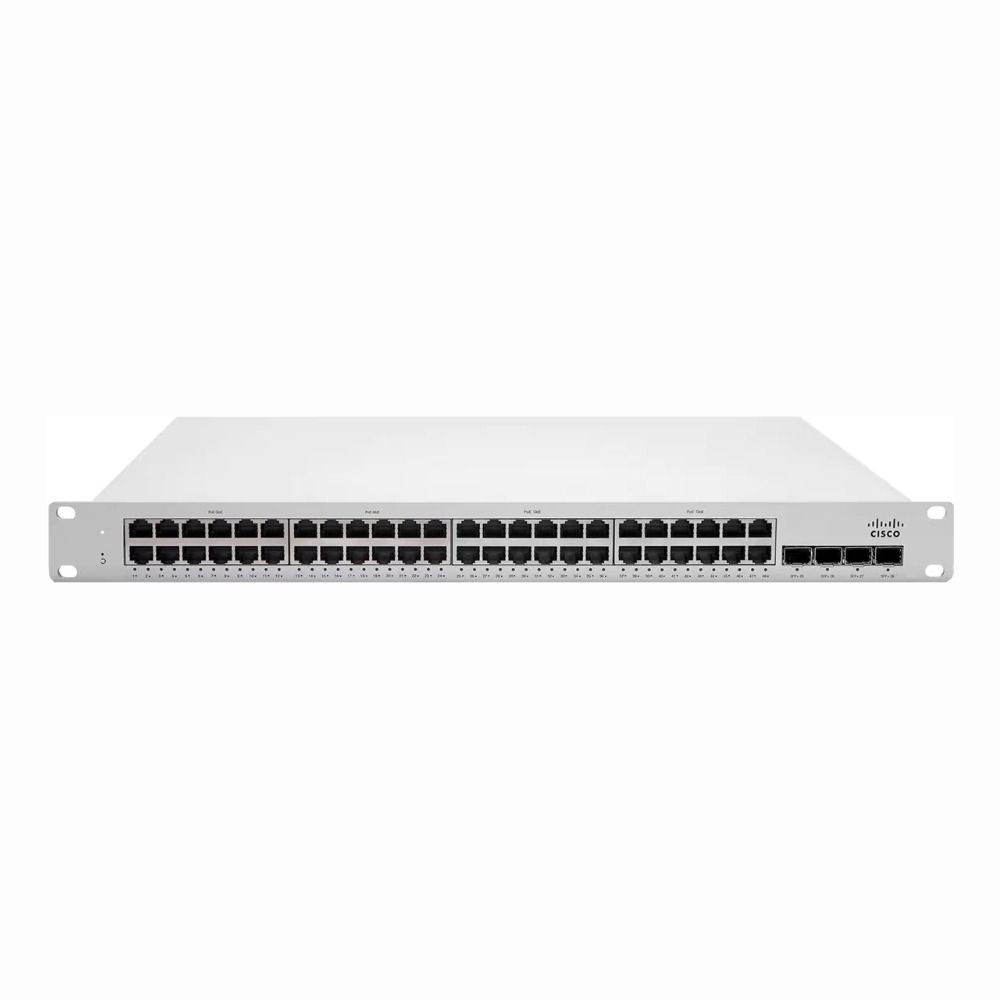

The Cisco Meraki MS225-48FP-HW offers 48 PoE+ ports for powering network devices and 4 SFP+ uplink ports for 10 Gigabit connectivity. It’s a Layer 3 managed switch that supports stacking to increase port density while simplifying network management. This rack-mountable switch fits well in enterprise access layers or distribution setups where robust performance and flexible deployment options are needed.

General Information
Brand	Cisco
Part Number	MS225-48FP-HW
Condition	Refurbished

Technical Information
Switch Ports	48
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, 10G SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000 Mbps (copper), 10 Gbps (SFP+)
UpLink Ports	4 x SFP+ uplinks, 2 x dedicated stacking ports (SFP+)
POE Support	PoE+
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45 (48 ports), SFP+ (4), SFP+ stacking (2), Serial Console (RJ-45), USB Console

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32K (approx.)

Management and Configuration
Routing Protocols	Static, OSPF, IGMP
Management Interfaces	Meraki Dashboard (web UI), Meraki REST API, SNMP, Syslog
Security Features	802.1X (RADIUS), Layer 3/4 ACLs, Port security, Storm control, DHCP snooping, MAC-based access controls, DoS protection
Security	802.1X, MAC authentication, RADIUS
Remote Management Protocol	HTTPS (Dashboard), REST API, SNMP, Syslog
Routing Protocol	Static, OSPF

Power & Cooling
Fans	2 (variable-speed, front-to-back, serviceable)
Power	AC 100-240V, 50-60 Hz; PoE+ budget (model dependent, typical listing: 740W)

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Compliance Standards	WEEE, RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Product Description
The Cisco Meraki MS225-48FP-HW is designed to provide reliable, high-performance network connectivity in enterprise and campus environments. It offers a mix of PoE+ ports for powering devices like IP phones and wireless access points alongside robust 10 Gigabit uplinks for network backbone integration. This switch is often found in settings that demand scalable, managed access with simple centralized control. Built for network administrators and IT teams, the MS225-48FP-HW balances ease of management with advanced features suited to medium to large networks. Its stackable design lets organizations expand capacity without adding complexity. Key Features PoE+ support powers a wide range of network devices directly through Ethernet cables 10 Gigabit SFP+ ports enable fast uplinks to core switches or servers Stacking ports simplify management by linking multiple switches as one Layer 3 routing capabilities support inter-VLAN communication and network segmentation Rack-mountable form factor fits standard server rooms and wiring closets This switch is typically deployed in corporate networks, campuses, and data centers where reliable, managed access to the network edge is critical. It helps maintain stable connections for devices while simplifying network expansion and configuration through the Meraki cloud dashboard.

Use Cases
The Cisco Meraki MS225-48FP-HW is primarily deployed in enterprise network environments requiring high-density PoE+ connectivity with advanced Layer 3 routing. It is ideal for IT teams managing campus access layers or mid-sized distribution networks where scalability and centralized management are critical. How It's Used: Connecting IP phones, wireless access points, and security cameras in corporate campuses with simplified power and data delivery. Enabling high-bandwidth 10 Gigabit uplinks to data center aggregation switches in mid-sized enterprise networks. Supporting edge computing deployments by providing resilient and stackable switching for remote office facilities. Facilitating network segmentation and inter-VLAN routing in distributed environments requiring Layer 3 capabilities. Deploying in multi-floor office buildings where rack-mountable stacking reduces physical footprint and simplifies network topology. This switch enhances operational efficiency by consolidating power and data over a single infrastructure while offering scalable stacking for evolving network demands. Its Layer 3 features support complex routing scenarios, ensuring consistent performance and simplified network management in enterprise-grade deployments.
