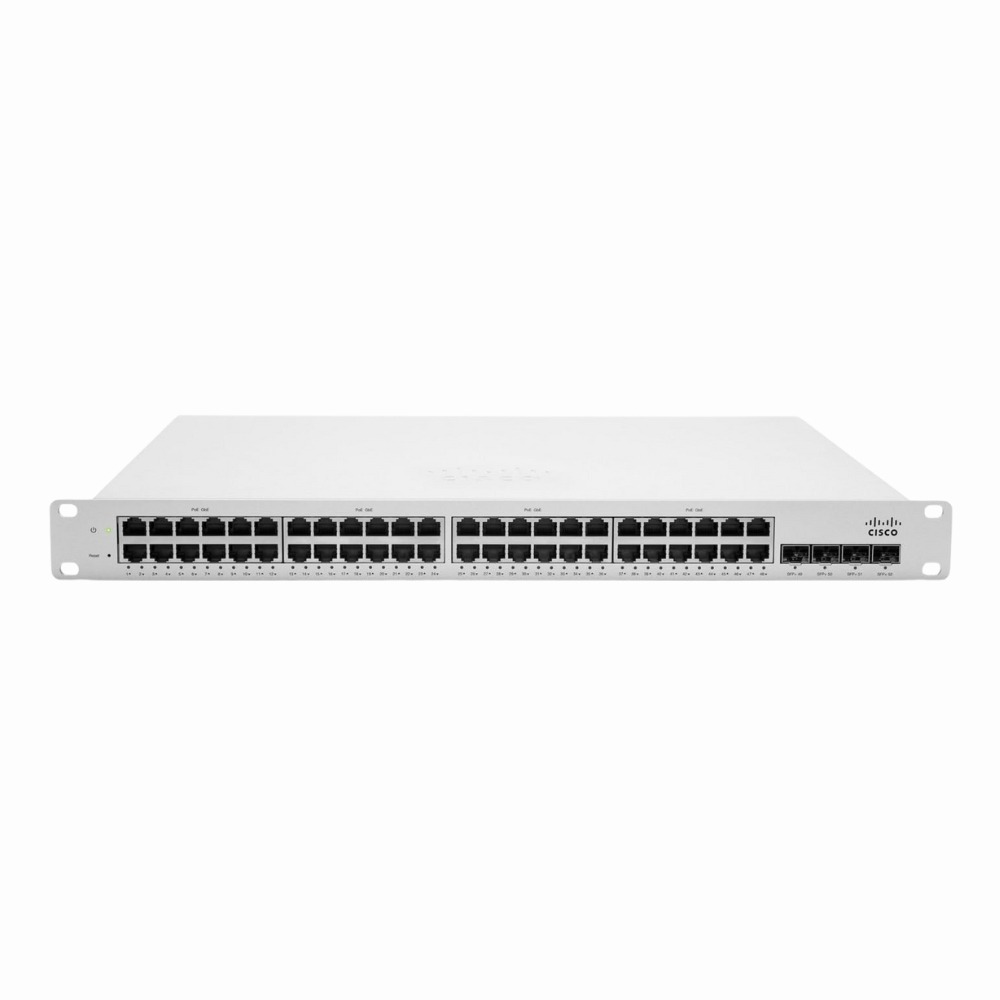

Name: MS225-48-HW Cisco 48-Port Gigabit Ethernet Switch 4 x 10Gb SFP+ Layer 3 Managed
Brand: Cisco
SKU: MS225-48-HW
Price: 114.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Cisco Meraki MS225-48-HW combines a large number of Gigabit Ethernet ports with high-speed uplinks and stacking capabilities, making it a solid choice for enterprise networks. It fits well where centralized management and flexible network architecture are needed, providing both reliable access and smooth expansion options.

General Information
Brand	Cisco
Part Number	MS225-48-HW
Condition	Refurbished

Technical Information
Switch Ports	48-Ports
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T
UpLink Ports	4 x SFP+ (10Gb), 2 x Stacking (10Gb)
POE Support	No
Switching Capacity	176 Gbps
Switch Forwarding Rate	130.95 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Routing Protocols	Static
Management Interfaces	Meraki Dashboard (Web), Meraki Dashboard API, SNMP
Security Features	802.1X, RADIUS, ACLs, MAC ACLs
Remote Management Protocol	HTTPS, SNMP, Meraki Dashboard API
Routing Protocol	Static

Power & Cooling
Power	100-240VAC, 50/60Hz

Physical Characteristics
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Compliance Standards	RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP)

Product Description
The Cisco Meraki MS225-48-HW is a versatile access switch designed for enterprise networks requiring reliable, high-performance connectivity. It’s often found in data centers, campus networks, and branch offices where both speed and scalability matter. Built for IT teams that manage complex network environments, this switch combines easy cloud-based management with robust Layer 3 capabilities. Network administrators benefit from simplified monitoring and control, while users experience consistent and fast network access. Key Features 48 Gigabit RJ-45 ports deliver widespread connectivity for wired devices Four SFP+ ports ensure high-speed fiber uplinks or connections to other switches Stacking ports enable creating a single logical switch from multiple units for easier administration Advanced Layer 3 routing supports traffic segmentation and inter-VLAN communication Cloud-managed interface streamlines deployment and ongoing maintenance This switch is commonly deployed in enterprise edge layers, where it connects workstations, servers, and wireless access points. The ability to stack units helps organizations expand their network without complicating management. Its Layer 3 support allows for smarter traffic handling and enhances network efficiency in sizable environments.

Use Cases
The Cisco Meraki MS225-48-HW is ideal for enterprise IT environments requiring high port density and advanced Layer 3 switching capabilities. It is well suited for organizations that need centralized management of wired networks across multiple floors or buildings, where scalability and inter-VLAN routing are critical. How It's Used: Deploying in large corporate campus networks to provide high-performance access with seamless uplink aggregation. Integrating multiple branch office networks through stacking to simplify management and ensure network consistency. Supporting virtualization environments with robust Layer 3 routing between segmented VLANs for improved traffic isolation. Facilitating edge computing deployments by providing flexible connectivity options and high-speed uplinks for local data processing nodes. Enabling efficient rack deployments in data centers where dense port counts and stacking reduce cabling complexity. Serving SMB networks that require scalable, managed gigabit access switches with future-proof 10GbE uplink capacity. This switch’s combination of comprehensive stacking, Layer 3 functionality, and high port density enhances operational efficiency by simplifying network expansion and routing. It supports evolving infrastructure demands while maintaining performance consistency in complex wired network topologies.
