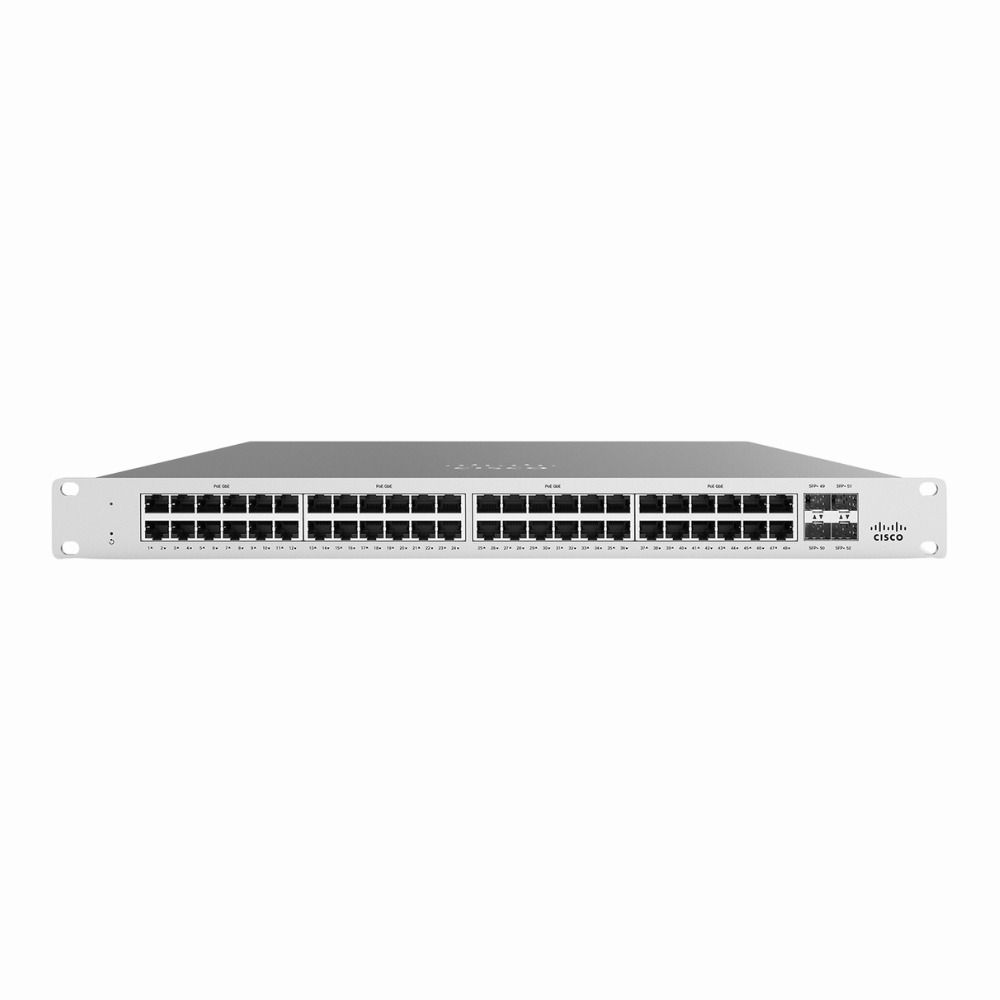

Name: MS120-48-HW Cisco Meraki 48-Port 10/100/1000Base-T Layer 2 Managed Switch
Brand: Cisco
SKU: MS120-48-HW
Price: 316.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Cisco Meraki MS120-48-HW delivers 48 gigabit RJ-45 ports alongside 4 SFP uplink ports, designed to fit into environments that require solid Layer 2 management capabilities. It’s often integrated into office and campus networks to extend wired device access while allowing centralized cloud monitoring and configuration.

General Information
Brand	Cisco
Part Number	MS120-48-HW
Condition	Refurbished

Technical Information
Switch Ports	48 x 10/100/1000Base-T (RJ-45)
Number of Ports	48-Ports
Port Type	10/100/1000Base-T, SFP
Port Speed	10/100/1000 Mbps
UpLink Ports	4 x SFP
POE Support	No
Switching Capacity	104 Gbps
Switch Forwarding Rate	77.38 Mpps
DRAM	512 MB
Flash Memory	256 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	No
Layer Support	Layer 2
Connector Type	RJ-45,SFP

Performance
Jumbo Frame Support	Up To 9216 Bytes

Management and Configuration
Management Interfaces	Meraki Cloud Dashboard,Web GUI,REST API,SNMP
Security Features	802.1X,RADIUS,Access Control Lists (ACLs),Port Security,Storm Control
Remote Management Protocol	HTTPS,SNMP,REST API

Physical Characteristics
Dimensions	1.73 x 17.5 x 10.63 in (44 x 444 x 270 mm)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	RoHS, CE, FCC, UL, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x

Product Description
The Cisco Meraki MS120-48-HW is a compact Layer 2 managed switch ideal for expanding wired network capacity in various settings. It’s commonly used in office environments, branch locations, or small data centers to provide reliable gigabit Ethernet connections across multiple devices. Built for IT teams seeking easy-to-manage yet robust switching solutions, this switch supports detailed traffic controls and network segmentation, helping maintain efficient and secure local area networks. Network administrators and managed service providers often find this model useful for its blend of performance and simplified cloud management. Key Features Offers 48 gigabit RJ-45 ports for extensive device connectivity Includes 4 dedicated SFP ports for uplink flexibility and fiber integration Supports VLANs, QoS, and Spanning Tree for network stability and traffic management Cloud-managed interface enables real-time monitoring and centralized control Compact form factor fits well in crowded wiring closets or smaller racks This switch is typically deployed in mid-sized networks where space and straightforward management are priorities. By simplifying network segmentation and providing reliable gigabit speeds, it helps maintain smooth operations for daily business applications and user connectivity.

Use Cases
The Cisco Meraki MS120-48-HW switch is commonly deployed in medium to large enterprise office environments and educational campuses where reliable wired connectivity and centralized network management are critical. It is particularly suited for IT teams needing to manage segmented LANs with ease and scalability while supporting a high density of end-user devices. How It's Used: Supporting wired access in corporate office floors, providing secure connectivity for desktops, VoIP phones, and wireless access points. Extending network infrastructure in university buildings to accommodate high device counts in lecture halls and administrative offices. Centralizing management for distributed branch offices via cloud-based monitoring and configuration. Facilitating network segmentation in multi-tenant commercial buildings to isolate traffic between different organizations. Enabling uplink connections to data center aggregation switches using the SFP ports for enhanced bandwidth. Deploying in space-constrained wiring closets where a compact yet full-featured Layer 2 switch is required. By integrating the MS120-48-HW, organizations gain a balance of port density and advanced Layer 2 features that streamline network operations. Its cloud-managed architecture supports scalable deployments and rapid troubleshooting, ensuring the network adapts efficiently as workloads and user demands evolve.
