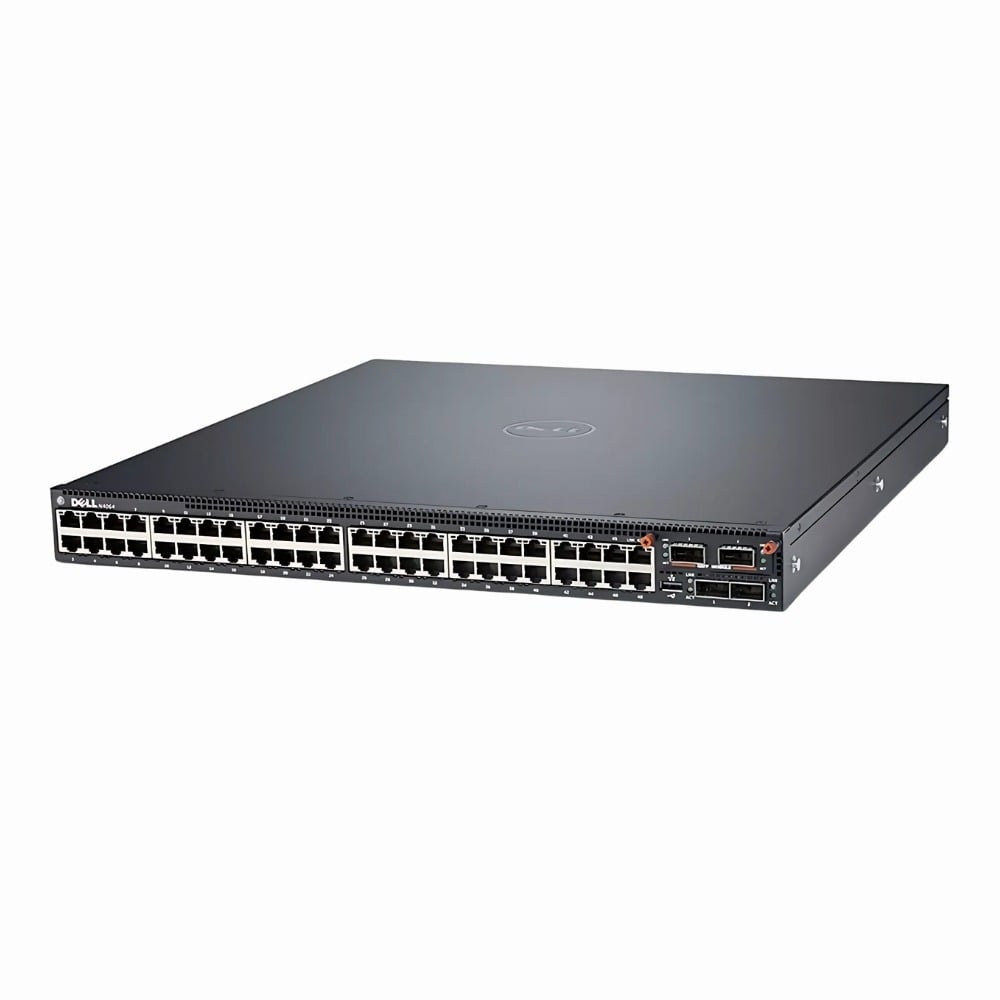

M40JD Dell N4064 48 x Ports 10GBase-X + 2 x 40GbE QSFP+ Layer 3 Managed Gigabit Ethernet Network Switch

SKU:
M40JD
Weight: 5.00 lbs
Condition: Refurbished
  • 48 ports supporting 10GBase-X for high-speed network access
  • 2 QSFP+ ports delivering 40GbE uplink capacity
  • Layer 3 managed switch with advanced routing features
  • Designed for data centers and enterprise network environments
In stock

$1,064.00

Product Overview

The Dell N4064 M40JD is a Layer 3 managed switch that provides 48 10GBase-X ports alongside 2 40GbE QSFP+ uplinks, suited for data centers and enterprise environments. It integrates advanced routing and traffic management to support high-density network deployments without sacrificing performance.

General Information

Brand Dell
Part Number M40JD
Condition Refurbished

Technical Information

Switch Ports 48
Number of Ports 48-Ports
Port Type 10G SFP+, 40G QSFP+, RJ-45, SFP+, USB Console, Serial Console (RJ-45)
Port Speed 10 Gbps,40 Gbps
UpLink Ports 2 x 40GbE QSFP+
POE Support No
Switching Capacity 1.12 Tbps
Switch Forwarding Rate 2187.5 Mpps
DRAM 4 GB
Flash Memory 2 GB
VLAN Support Yes
Max VLANs Supported 4096
Stackable No
Layer Support Layer 3
Connector Type SFP+,QSFP+,RJ-45,USB Console,Serial Console (RJ-45)

Performance

Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 32,000

Management and Configuration

Routing Protocols Static, RIP, OSPF, BGP, VRRP, HSRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols Yes
Management Interfaces Console (RJ-45), USB, Out-of-band Ethernet (RJ-45)
Security Features SSH, SSL/HTTPS, Port Security, ACLs, 802.1X, RADIUS, TACACS+
Management Type CLI, Web GUI, SNMP
Security 802.1X
Remote Management Protocol SNMPv1,SNMPv2c,SNMPv3,SSH,Telnet,HTTP/HTTPS
Routing Protocol Static, OSPF, BGP, VRRP, PIM-SM, IGMP

Power & Cooling

Fans Hot-swappable redundant fans

Physical Characteristics

Dimensions 1.72 x 17.32 x 18.90 in (H x W x D)
Weight 5.00
Operating Temperature 0°C to 40°C

Miscellaneous

Compliance Standards RoHS, CE, FCC, UL
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1s


Product Description

The Dell N4064 M40JD is a robust network switch built for environments that require high throughput and reliable connectivity. It is often found in data centers and large enterprise networks where 10Gbps port speeds and 40Gbps uplinks are essential for handling heavy traffic loads.

Engineered for IT professionals and network administrators, this switch supports advanced Layer 3 capabilities, allowing for efficient routing and network segmentation. It balances high port density with powerful management features to meet the demands of modern network infrastructures.

Key Features

  • Offers flexible deployment with 48 10GBase-X ports suited for diverse fiber connections
  • Includes 2 QSFP+ ports to aggregate traffic and connect to core switches or routers
  • Supports Layer 3 routing protocols for improved network performance and control
  • Provides detailed traffic management and security options to maintain network integrity
  • Optimized for data center top-of-rack setups and high-density network access

Typically deployed in enterprise environments and data centers, the N4064 helps manage large volumes of network traffic with stability and speed. Its combination of scalability and manageability makes it a practical choice for IT teams handling complex networks.


Use Cases

The Dell N4064 M40JD switch is primarily deployed in data center and large enterprise environments that demand high-throughput and low-latency connectivity. IT teams managing virtualization, storage networks, or high-bandwidth applications will find this switch critical for maintaining efficient network segmentation and traffic management.

How It's Used:

  • Aggregating 10GBase-X connections from server racks in enterprise data centers to optimize compute-to-network throughput.
  • Providing 40GbE uplinks in campus core networks to enable scalable inter-switch communication with minimal bottlenecks.
  • Enabling robust Layer 3 routing between VLANs in virtualization-heavy environments requiring granular traffic control.
  • Facilitating high-performance storage area network (SAN) deployments where consistent low latency and high bandwidth are essential.
  • Supporting edge computing clusters with dense 10G port density for local processing and rapid data transfer.

This switch supports operational efficiency by consolidating numerous 10G connections into high-capacity uplinks, streamlining network traffic flows, and enabling scalable Layer 3 routing. It helps IT infrastructure teams maintain performance consistency as workloads grow and network topologies evolve.
