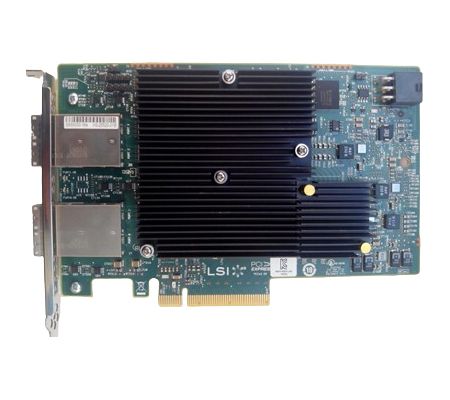

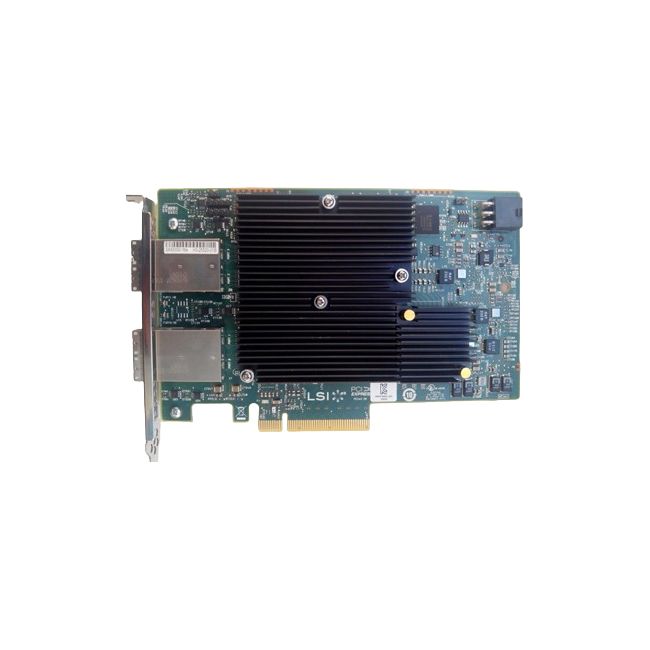

Name: LSI00342 Broadcom 16-Port 12Gb/s SAS+SATA PCIe Host Bus Adapter FH
Brand: Broadcom
SKU: LSI00342
Price: 680.02 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The Broadcom LSI00342 9300-16e acts as a bridge between your server and multiple SAS or SATA drives, enabling fast data transfers through its 16-port, 12Gb/s design. It fits into standard PCI Express slots and is often used in servers that require robust, high-bandwidth storage solutions without added complexity.

General Information
Brand	Broadcom
Part Number	LSI00342

Technical Information
Protocol	SAS (Serial Attached SCSI)
Data Rate	12Gbps SAS
Port Count	4-Port (Quad)
Bus Interface	PCIe 3.0 x8
Connector Type	Mini-SAS HD (SFF-8644)
Chipset / Controller	SAS3008 (Broadcom/LSI)
Network Topology	Point-to-Point
Bracket Height	Full Height (Standard)

Advanced Features & Compatibility
Management Features	Boot from SAN, Selective LUN Masking, Diagnostics (D_Port)
OS Compatibility	Windows Server 2019, Windows Server 2022, VMware ESXi 7.x, VMware ESXi 8.x, RHEL 8, RHEL 9, SLES 15

Physical Characteristics
Weight	5.00
Condition	Refurbished

Product Description
The Broadcom LSI00342 9300-16e is a high-performance Host Bus Adapter (HBA) designed to connect multiple SAS and SATA storage devices to a server’s PCIe slot. It acts as a bridge between storage drives and the server’s motherboard, enabling fast and reliable data access and transfer. Often found in data centers, enterprise servers, and storage arrays, this adapter is built for environments that require robust storage connectivity and high throughput. IT professionals, system administrators, and data center operators benefit from its ability to manage multiple high-speed drives simultaneously. Key Features Supports up to 16 SAS and SATA drives with 12Gb/s data rates Utilizes PCIe 3.0 x8 to maximize bandwidth and minimize latency Equipped with external Mini-SAS HD connectors for flexible cabling Compatible with both SAS and SATA protocols for diverse storage setups Full-height design fits most standard server cases This adapter is commonly deployed in server environments that handle intensive storage workloads, such as virtualization, backup, and database applications. Its ability to maintain high-speed, stable connections makes it a dependable choice where data integrity and performance are critical.

Use Cases
The Broadcom LSI00342 9300-16e is primarily utilized in enterprise-grade server environments where high-throughput and scalable storage connectivity are critical. It is ideal for IT professionals managing dense storage arrays in data centers and virtualization platforms requiring reliable SAS and SATA integration. How It's Used: Connecting high-capacity storage clusters in data centers to optimize performance for large-scale database applications. Enabling virtualization hosts in enterprise IT environments to manage multiple physical drives with low latency and high bandwidth. Expanding storage capabilities in rack-mounted servers for media production workflows that demand rapid data access. Supporting backup and archiving solutions in SMB networks by facilitating efficient multi-drive connectivity. Integrating storage arrays in edge computing setups where compact and high-density host bus adapters improve reliability and throughput. This controller supports operational efficiency by simplifying storage expansion and maintaining consistent throughput across multiple drives. Its scalability and compatibility with diverse storage media make it suitable for evolving infrastructure demands in complex IT environments.
