| Product Overview |
|---|

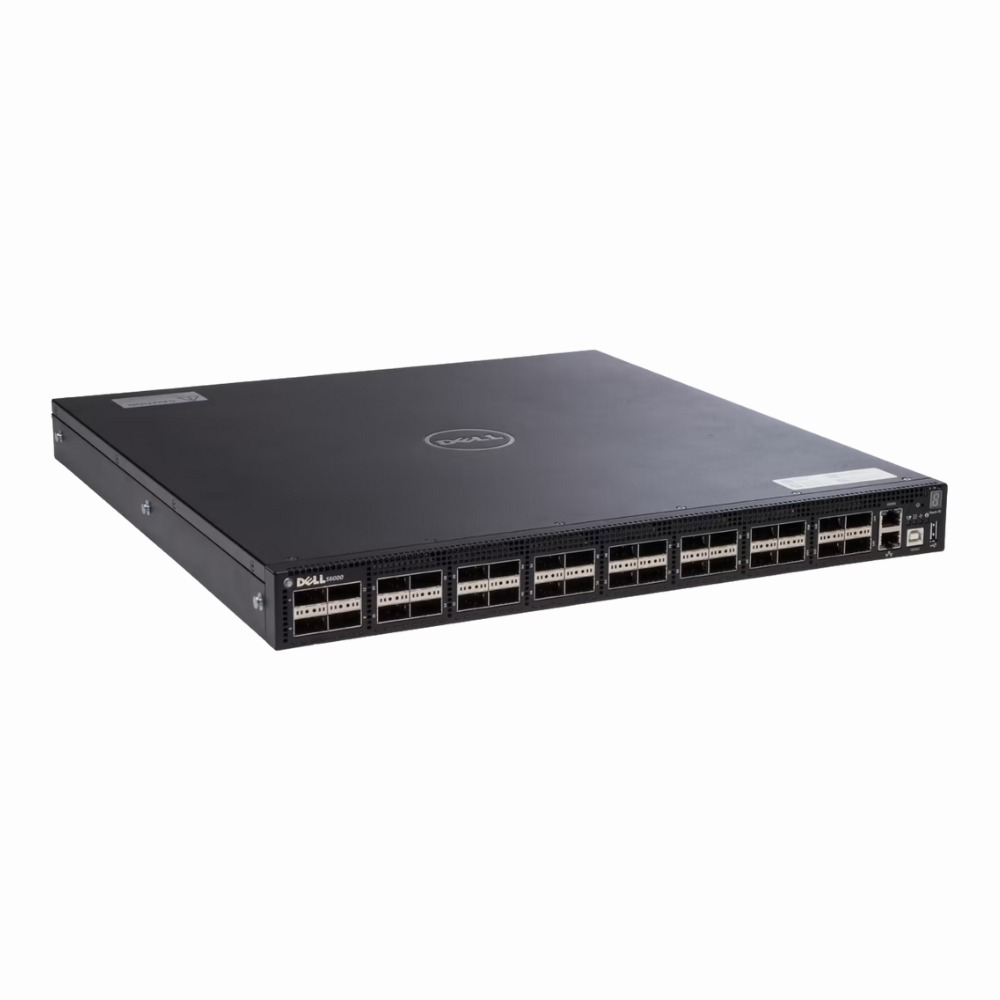

The JYM7R Dell S6000-ON switch delivers 32 ports of 40G connectivity designed for Layer 3 management, fitting well into data centers focused on speed and flexible routing. It supports various network architectures and provides the tools needed for detailed network control and performance optimization without unnecessary complexity. |
| General Information | |
|---|---|
| Brand | Dell |
| Part Number | JYM7R |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 32 |
| Number of Ports | 32-Ports |
| Port Type | 40G QSFP+ |
| Port Speed | 40GBase-X |
| POE Support | No |
| Switching Capacity | 2.56 Tbps |
| Switch Forwarding Rate | 2,500,000,000 pps (64-byte packets) |
| DRAM | 2 GB |
| Flash Memory | 8 GB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | QSFP+ |
| Performance | |
|---|---|
| Latency | <1.5 microseconds (typical) |
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 131072 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps |
| Remote Protocols | Yes |
| Security Features | SSH, RADIUS, TACACS+, 802.1X, ACLs, Port Security, DHCP Snooping, BPDU Guard, Storm Control |
| Management Type | CLI, Web GUI (HTTP/HTTPS), SNMP, REST API |
| Remote Management Protocol | SSH, Telnet, HTTP, HTTPS, SNMPv1/v2/v3 |
| Power & Cooling | |
|---|---|
| Fans | 4 hot-swappable fans |
| Power | Dual redundant hot-plug AC power supplies (field-replaceable) |
| Power Supply | Dual hot-plug AC power supplies (redundant) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.7 x 17.3 x 16.6 inches (H x W x D) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D, IEEE 802.3x |
| Product Description |
|---|
The JYM7R Dell S6000-ON is a high-performance network switch designed to handle demanding data center workloads. It provides 32 QSFP+ ports capable of 40Gbps speeds, making it suitable for environments that require fast and reliable data transfer. Often found in enterprise and cloud data centers, this Layer 3 switch supports advanced routing and management features that help network administrators optimize traffic flow and maintain high availability. Key Features
This switch is typically deployed in large-scale data centers, enterprise core networks, and service provider environments where bandwidth and reliability are critical. Its ability to handle multiple high-speed connections makes it a reliable choice for managing heavy network traffic. |
