Product Overview |
|---|

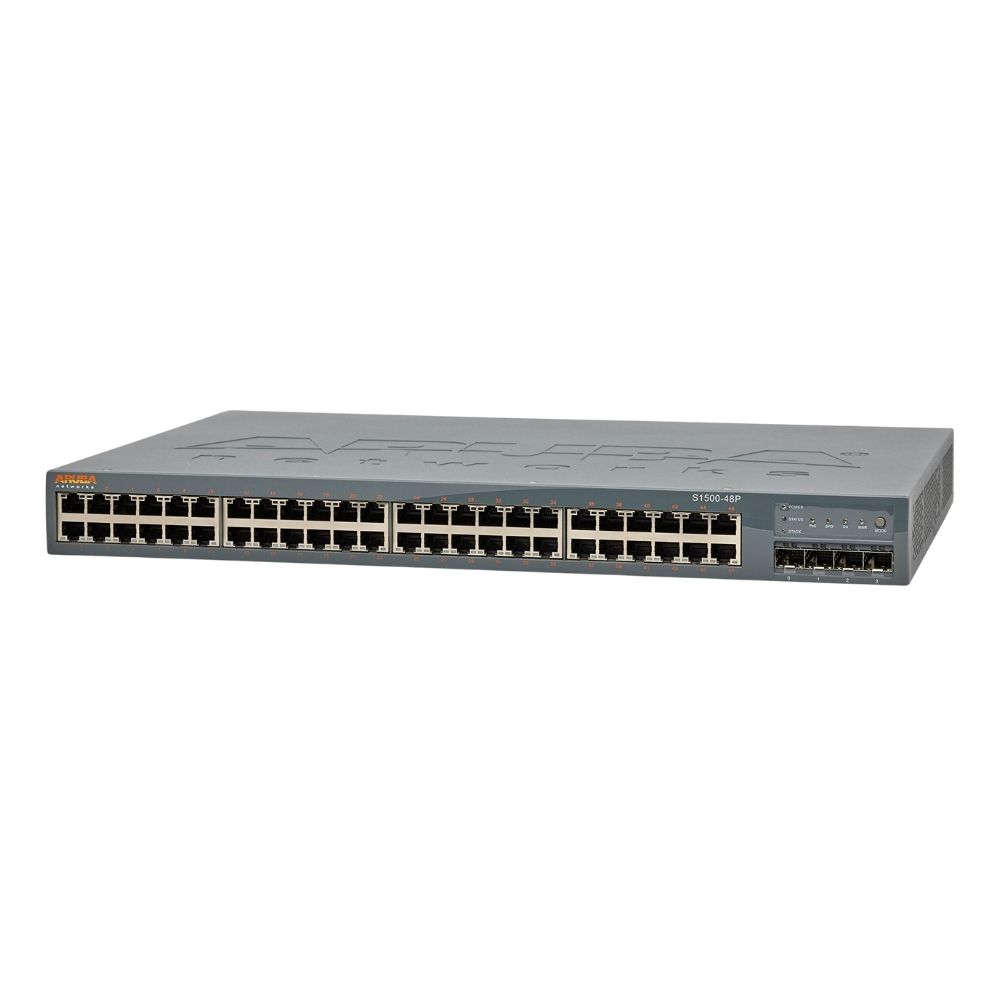

The JW672A - HP S1500 Mobility Access 48-Ports PoE Network Switch provides a solid foundation for delivering both data and power to network devices. It fits well in environments that need to connect and power many endpoints efficiently, such as office networks or campus infrastructures. The switch combines essential network functions with PoE support, balancing performance and practical deployment needs without unnecessary complexity. |
General Information |
|
|---|---|
| Brand | HP |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 2, Managed Switch, Smart Managed Switch, PoE Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100Base-TX, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100Base-TX |
| UpLink Ports | 2 x SFP |
| POE Support | PoE |
| Switching Capacity | 9.6 Gbps |
| Switch Forwarding Rate | 18.75 Mpps |
| DRAM | 128 MB |
| Flash Memory | 32 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP,Serial Console (RJ-45),USB Console |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS), CLI (Console/SSH/Telnet), SNMP v1/v2c/v3, RMON |
| Security Features | 802.1X, ACLs, RADIUS/TACACS+, Port security, DHCP Snooping, BPDU Guard, Storm Control |
| Management Type | Managed |
| Security | 802.1X,RADIUS,TACACS+ |
| Remote Management Protocol | SNMP,SSH,HTTPS,HTTP,Telnet |
| Routing Protocol | Static |
Power & Cooling |
|
|---|---|
| Fans | Internal, variable-speed |
| Power | AC 100-240V, 50-60Hz; internal PSU; PoE budget ~370W |
| Power Supply | Internal AC 100-240V power supply (approx. 370W PoE budget) |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.73 x 17.32 x 10.63 in (44 x 440 x 270 mm) |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1p |
Product Description |
|---|
The JW672A - HP S1500 Mobility Access 48-Ports PoE Network Switch is built to deliver power and data across multiple devices in a network. It is commonly found in enterprise networks that require extensive device connections, especially where power over Ethernet (PoE) simplifies infrastructure by supplying power through the same network cables. Network administrators and IT teams often rely on this switch for its combination of capacity and management capabilities, providing an efficient backbone for mobility access and device interconnectivity. Key Features
This switch plays a practical role in network infrastructures where dependable power delivery and data switching are critical. Its capability to handle numerous devices with varied traffic demands makes it a stable component within larger network architectures. Performance consistency and straightforward management help maintain operational stability over time, making the switch a sensible option for network teams focused on reliability and scalability. |
Use Cases |
|---|
The JW672A switch is typically employed in enterprise and campus networks where high-density device connectivity and PoE capabilities are necessary. These environments benefit from centralized power delivery and streamlined data handling that the switch enables. How It's Used:
By integrating power and data in a single device, the JW672A simplifies network layouts while maintaining reliable performance. It supports operational efficiency and scales well with expanding network requirements, offering consistent service for demanding environments. |
