Product Overview |
|---|

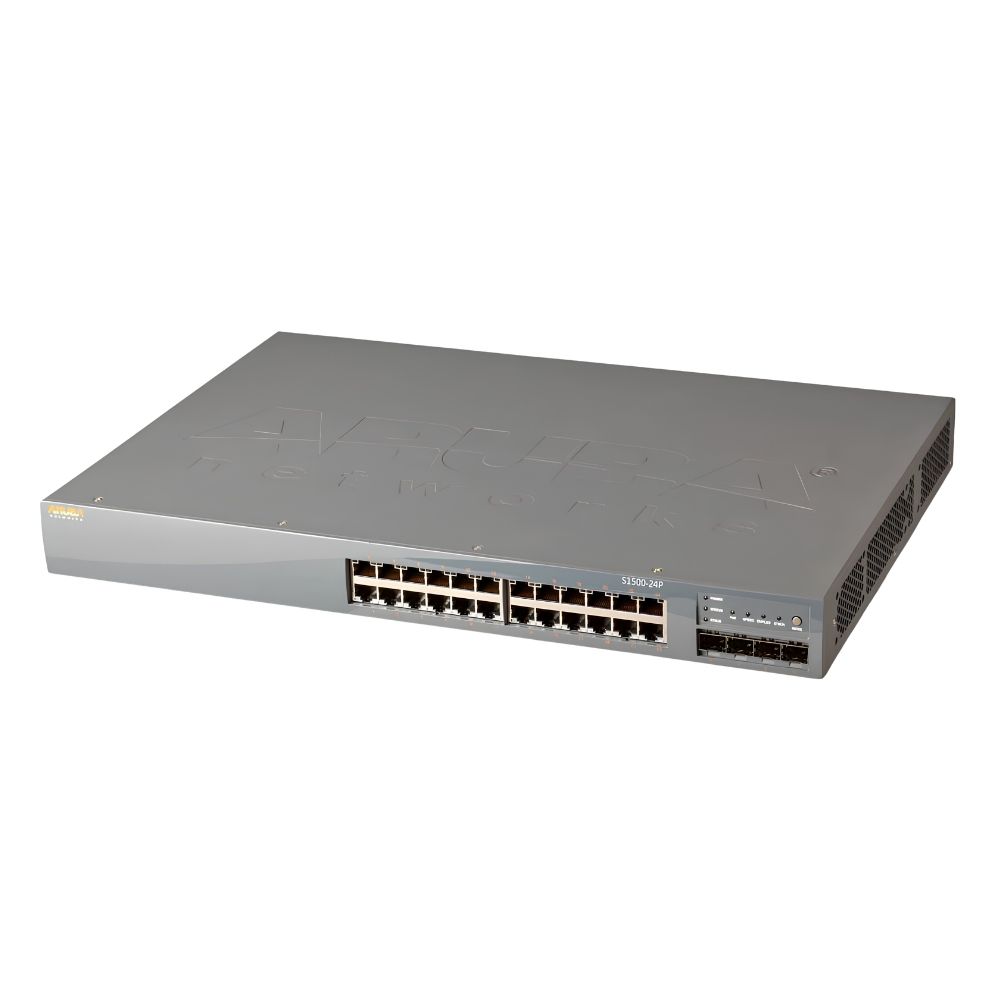

The JW671-61001 - HPE Aruba S1500 24x RJ45 PoE+ 4x SFP Mobility Switch provides essential connectivity and power for network devices in a compact form. It fits well within enterprise and campus network setups, delivering both data transmission and power over Ethernet, alongside flexible fiber uplinks. The device balances performance with operational simplicity, making it a useful element in maintaining network infrastructure. |
General Information |
|
|---|---|
| Brand | HPE |
| Condition | Refurbished |
Technical Information |
|
|---|---|
| Switch Type | Layer 2, Managed Switch, Smart Managed Switch, PoE Switch, Gigabit Switch |
| Form Factor | Rack-Mountable |
| Mount Type | 1U Rack |
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 56 Gbps |
| Switch Forwarding Rate | 41.7 Mpps |
| DRAM | 256 MB |
| Flash Memory | 64 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP |
Performance |
|
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8192 |
Management and Configuration |
|
|---|---|
| Routing Protocols | Static |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI (HTTP/HTTPS),Command Line Interface (CLI),SNMP,SSH,RMON |
| Security Features | 802.1X,Access Control Lists (ACLs),MAC-based authentication,Port security,DHCP snooping,IP Source Guard,Storm control,ARP inspection |
| Management Type | Web-based management,CLI |
| Security | Yes |
| Remote Management Protocol | SNMP,SSH,HTTP,HTTPS,Telnet |
| Routing Protocol | Static |
Power & Cooling |
|
|---|---|
| Fans | Internal fan |
| Power | 370 W (PoE budget) |
| Power Supply | Internal AC power supply |
Physical Characteristics |
|
|---|---|
| Dimensions | 1.73 x 17.32 x 10.43 in |
| Weight | 3.00 |
| Operating Temperature | 0°C to 45°C |
Miscellaneous |
|
|---|---|
| Eco Friendly | Yes |
| Assembly Required | No |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1s,IEEE 802.1w,IEEE 802.3af,IEEE 802.3at |
Product Description |
|---|
The JW671-61001 HPE Aruba S1500 switch delivers a balanced combination of port density, power delivery, and connectivity options suited for modern network demands. It is commonly found in enterprise and campus networks where mobility and device connectivity are priorities. Built to support environments that require both wired and wireless infrastructure, the switch is often employed by IT teams managing medium-sized networks and requiring scalable performance with PoE capabilities. Key Features
This switch plays a practical role in delivering consistent network connectivity with integrated power delivery, reducing the need for additional cabling or power supplies. Its reliable performance helps maintain uninterrupted access and supports the growth of connected devices across a network. With straightforward management and robust functionality, it remains a solid choice for organizations looking to maintain efficient network operations without complexity. |
Use Cases |
|---|
The JW671-61001 switch is typically deployed in medium-sized enterprise networks that require reliable wired and wireless connectivity. It benefits IT teams managing environments where powered devices like access points and VoIP phones need to coexist with robust fiber uplinks. How It's Used:
This switch helps streamline network infrastructure by combining data and power capabilities, which aids in reducing physical cabling requirements and supports scalable network expansions. Its role in delivering consistent network performance contributes to efficient operational management. |
