Name: JL818-61101 HPE Aruba CX 4100i 20x 1Gb PoE Class4 + 4x PoE Class6 + 4x SFP+ L3 Switch
Brand: HPE
SKU: JL818-61101
Price: 8760.00 USD
Availability: InStock
Rating: 4.8 (118 reviews)

Product Overview

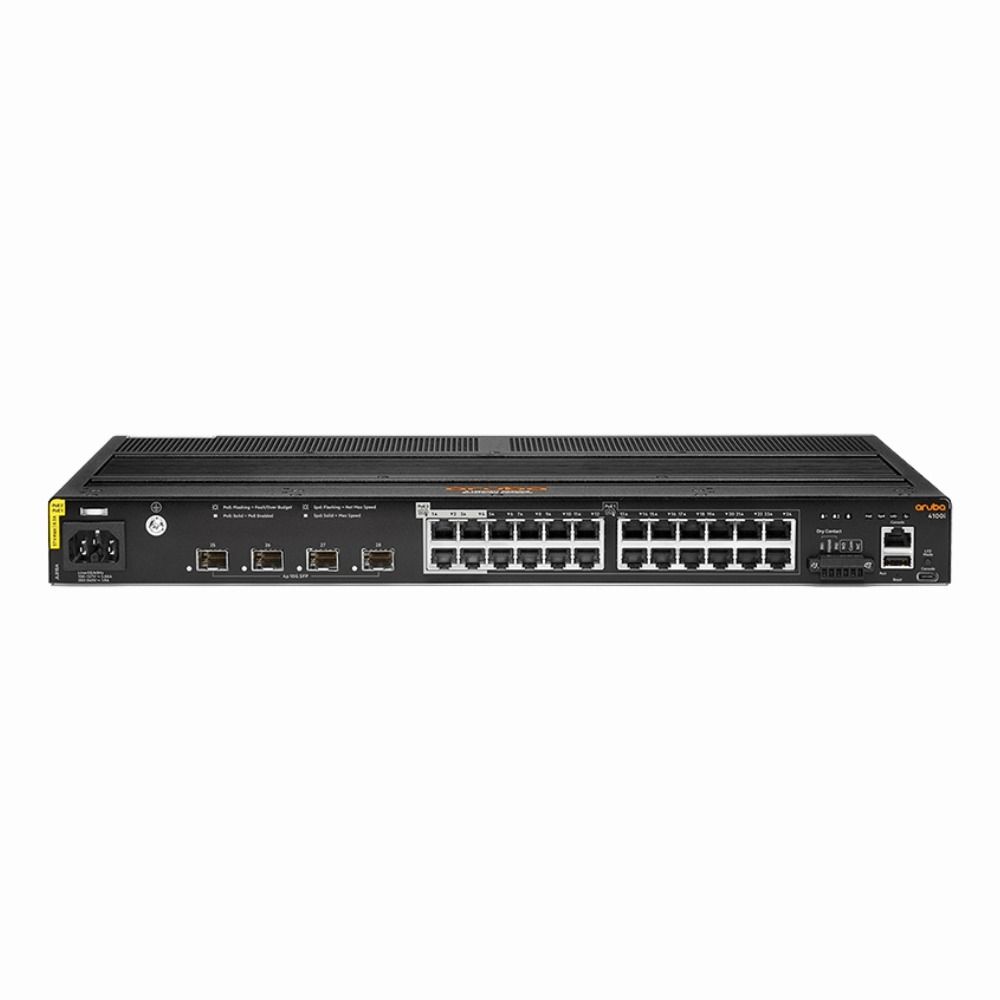

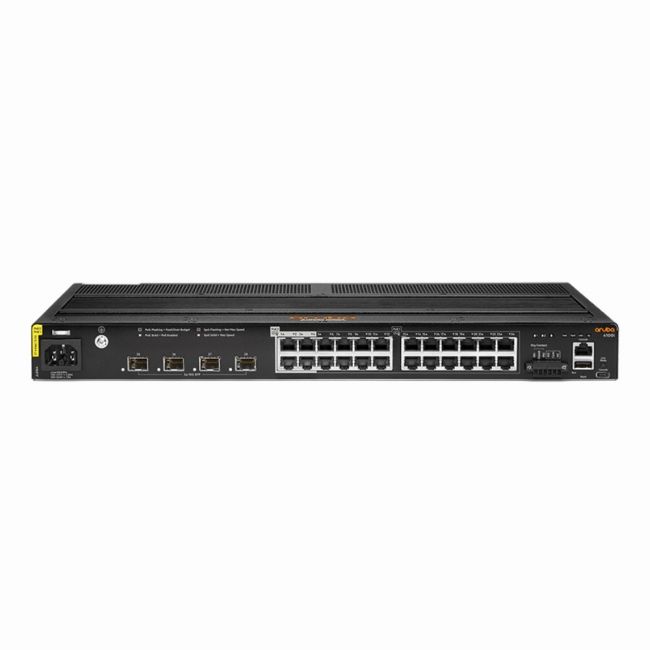

The HP Aruba CX 4100i is a rack-mountable Layer 3 managed switch built to provide gigabit connectivity with integrated PoE support. It fits well within enterprise networks to power and connect various wired devices while offering advanced routing features and high-speed uplinks for improved network performance.

General Information
Brand	HPE
Part Number	JL818-61101
Condition	Refurbished

Technical Information
Switch Ports	24
Number of Ports	28-Ports
Port Type	10/100/1000Base-T, 10G SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10/100/1000Base-T,10G SFP+
UpLink Ports	4
POE Support	PoE++
Switching Capacity	128 Gbps
Switch Forwarding Rate	250 Mpps
DRAM	2 GB
Flash Memory	512 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 3
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	32,000

Management and Configuration
Routing Protocols	Static, RIP, RIPng, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	Web GUI,CLI (SSH),SNMPv1/v2/v3,REST API,Telnet,Console (RJ-45/USB)
Remote Management Protocol	SNMP,SSH,HTTPS/HTTP,REST API,Syslog,Telnet
Routing Protocol	Static,OSPF,BGP,VRRP

Physical Characteristics
Dimensions	44 x 440 x 375 mm
Weight	5.00
Operating Temperature	0°C to 45°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.3x,IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

Product Description
The HP Aruba CX 4100i is a versatile network switch designed to handle demanding enterprise environments. It delivers multiple PoE-enabled gigabit ports along with high-speed 10Gbps SFP+ uplinks, making it suitable for connecting access points, IP phones, cameras, and other devices. Often found in office networks, data centers, or campus environments, this switch supports both power delivery and advanced Layer 3 routing features to simplify network management and reduce hardware complexity. Key Features Combines standard PoE and higher power Class 6 ports for diverse device support High-capacity uplinks ensure smooth data flow and minimal bottlenecks Rack-mountable 1U size fits standard server racks efficiently Integrated Layer 3 capabilities enable routing and traffic segmentation Managed platform allows detailed configuration and network monitoring This switch is commonly deployed in medium to large enterprise networks where reliable power and fast data connections are essential. Its flexibility helps IT teams streamline infrastructure while keeping devices powered and connected without additional equipment.

Use Cases
The HP Aruba CX 4100i switch is designed for medium to large enterprise environments requiring robust gigabit connectivity combined with advanced PoE capabilities. It is particularly effective in settings where diverse powered devices such as IP phones, wireless access points, and security cameras must be supported alongside high-speed uplink aggregation within a compact rack-mounted infrastructure. How It's Used: Deployment in corporate campus networks to support dense user workstations and VoIP devices with reliable PoE power and Layer 3 routing. Integration within branch office setups to connect and power wireless access points and IP surveillance systems while ensuring high-speed uplinks to the core network. Use in data closet environments where multiple rack-mounted devices require consolidated gigabit connections and scalable Layer 3 management. Edge computing scenarios that demand low-latency, high-throughput links for connected IoT devices powered via PoE Class 6 ports. Support for virtualized environments requiring segregated routing domains to optimize traffic flow and network segmentation within enterprise infrastructures. This switch facilitates operational efficiency by combining comprehensive Layer 3 features with PoE flexibility in a 1U form factor, enabling organizations to scale network capabilities while maintaining centralized management and optimized performance for evolving workloads.
