| Product Overview |
|---|

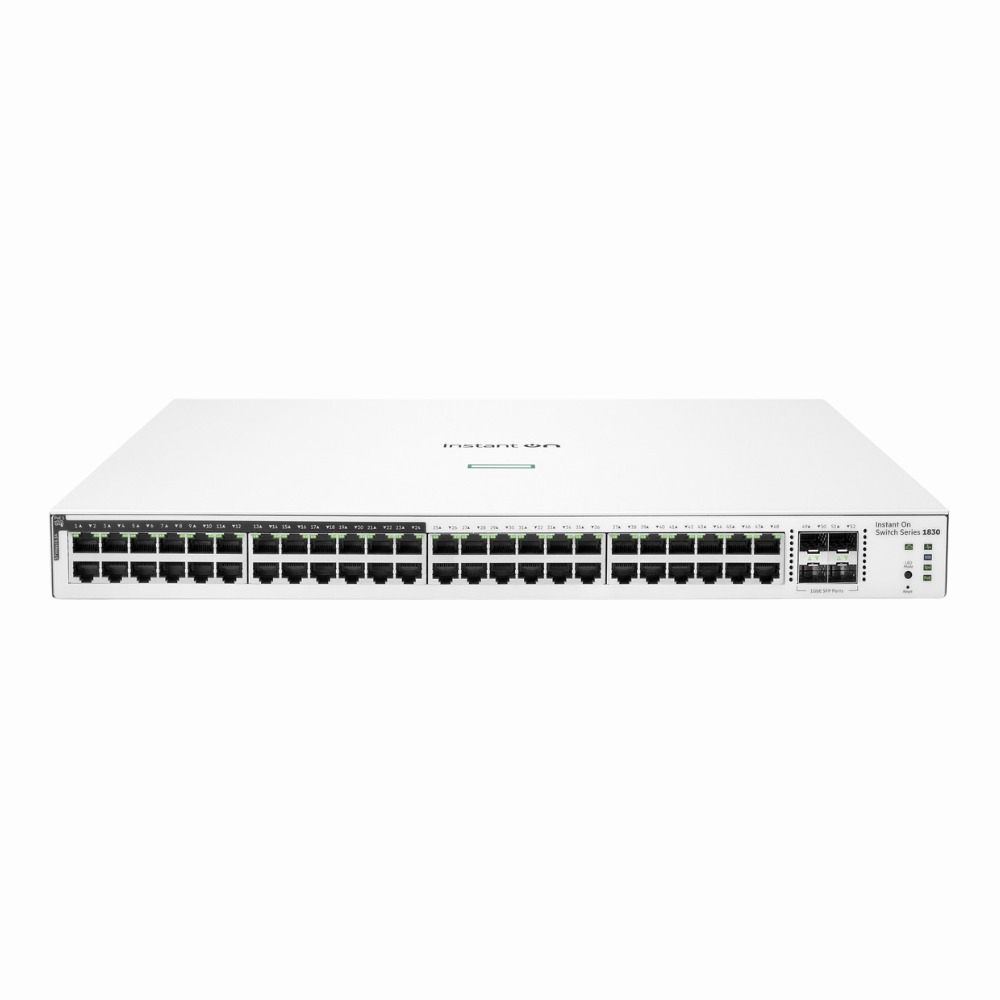

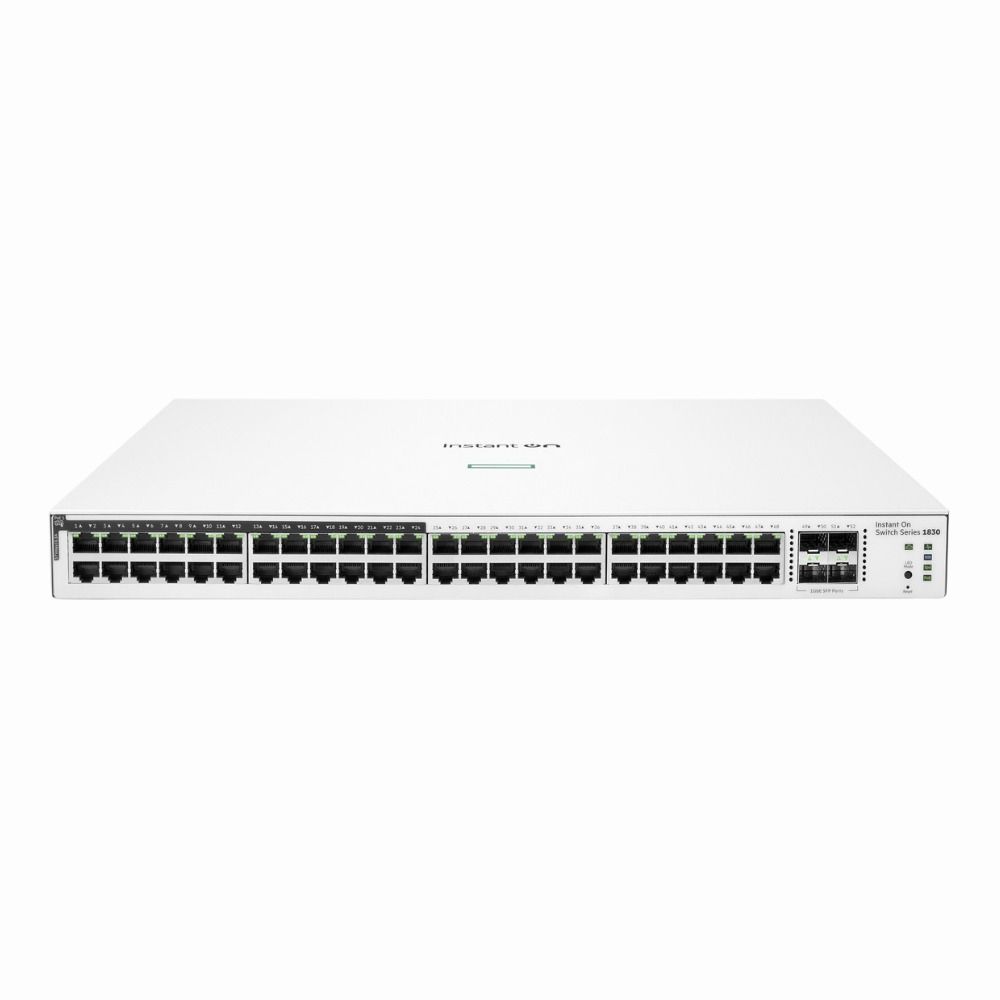

The HP Aruba Instant On 1830 Series 48-port switch combines high port count with PoE capabilities to power and connect various network devices. It is designed to fit neatly into standard racks and supports both copper and fiber connections, making it a versatile choice for network setups that require reliable gigabit speeds and flexible deployment options. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL815-61101 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48-Ports |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 1000Base-X, RJ-45, SFP, USB Console |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 x 1000Base-X SFP |
| POE Support | PoE+ |
| Switching Capacity | 104 Gbps |
| Switch Forwarding Rate | 202.25 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 (supports up to 256 active VLANs) |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8K MAC address table (approx.) |
| Management and Configuration | |
|---|---|
| Management Interfaces | Web GUI (HTTP/HTTPS), Mobile App, SNMPv1/v2c, RMON |
| Security | 802.1X, ACLs |
| Remote Management Protocol | HTTPS, SNMPv1/v2c, Cloud API (Instant On) |
| Power & Cooling | |
|---|---|
| Power | 370W PoE budget (system power varies with PoE usage) |
| Physical Characteristics | |
|---|---|
| Dimensions | 44 x 440 x 220 mm (H x W x D) |
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Product Description |
|---|
The HP Aruba Instant On 1830 Series 48-port switch is built for small to medium-sized businesses needing robust and scalable network infrastructure. It offers a combination of high port density and Power over Ethernet capabilities, making it ideal for powering IP phones, wireless access points, and other network devices directly through the switch. Often found in office networks, retail environments, and educational institutions, this switch helps simplify network management while providing reliable connectivity. Network administrators and IT professionals benefit from its straightforward setup and solid feature set, designed to handle growing connectivity demands. Key Features
This switch is commonly deployed in wiring closets and central network rooms where multiple devices need to connect and receive power over Ethernet. It plays a key role in keeping network infrastructure organized and scalable, supporting day-to-day business operations without complications. |
