| Product Overview |
|---|

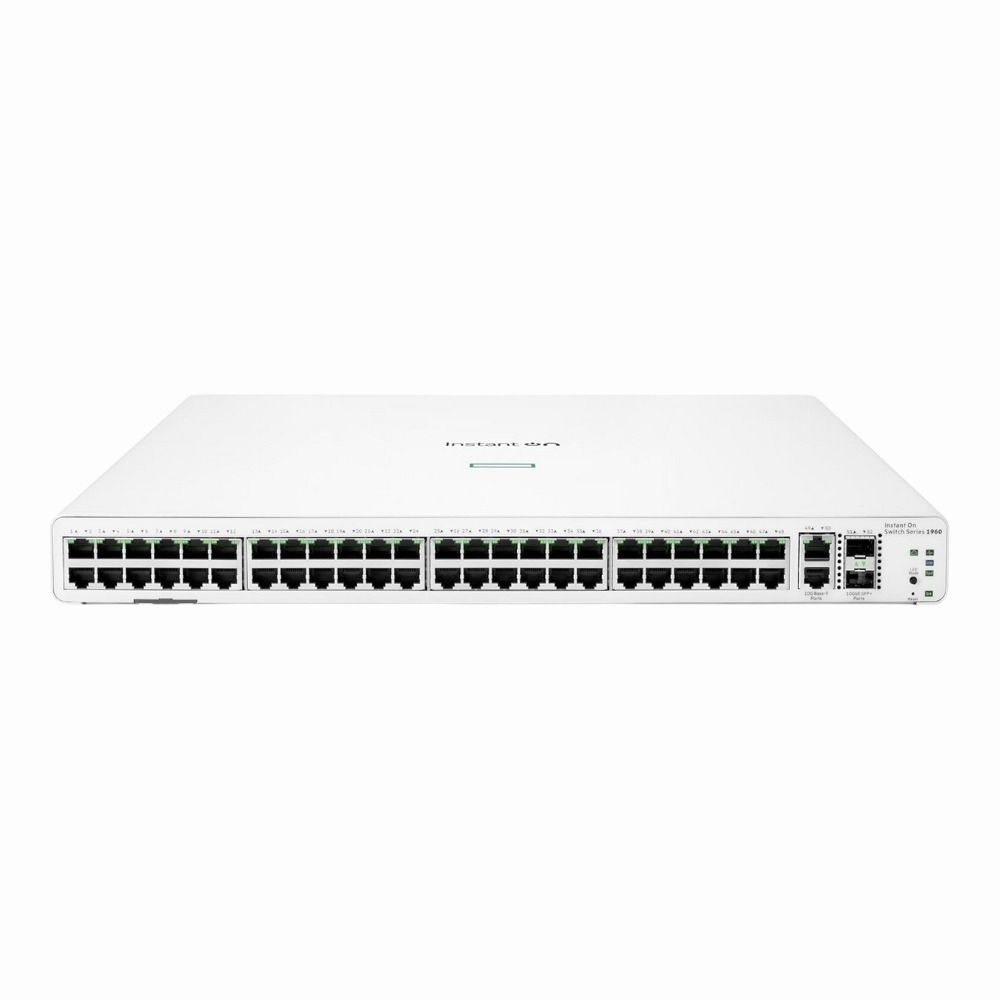

The HP Aruba Instant On 1960 48G 2XGT 2SEP+ is a Layer 3 managed switch that combines high port density with powerful uplink options. It's designed to provide robust network performance for businesses looking to expand and optimize their Ethernet infrastructure without complexity. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL808A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 48 |
| Number of Ports | 48-Ports |
| Port Type | 10/100/1000Base-T, 10GBase-T, SFP+ |
| Port Speed | 1 Gbps (access ports), 10 Gbps (uplink) |
| UpLink Ports | 4 (2 x 10GBase-T RJ-45, 2 x 10G SFP+) |
| POE Support | No |
| Switching Capacity | 176 Gbps |
| Switch Forwarding Rate | 343.75 Mpps |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 32K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Security Features | ACLs, 802.1X authentication, MAC authentication, DHCP snooping, IP Source Guard, Storm control, RADIUS/TACACS+ support |
| Remote Management Protocol | SNMPv1/v2/v3, SSH, HTTPS, HTTP |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Fans | 2 (variable speed, front-to-back) |
| Power | 100-240VAC, 50/60Hz (auto-ranging) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 15.91 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x |
| Product Description |
|---|
The HP Aruba Instant On 1960 48G 2XGT 2SEP+ is a Layer 3 managed network switch designed to support demanding business networks. It offers 48 ports of 10/100/1000 Mbps Ethernet connectivity, along with four 10-Gigabit uplink ports to handle high traffic and fast data transfer. Built for small to medium-sized enterprises, this switch is often found in data centers, server rooms, and office network closets. IT professionals and network administrators use it to build scalable, reliable network infrastructures that require both speed and security. Key Features
This switch is typically deployed in environments where network performance and uptime are critical. It handles large volumes of traffic smoothly, making it ideal for businesses with growing network demands. The balance of numerous gigabit ports and high-speed uplinks allows diverse devices and servers to connect efficiently while keeping the network organized and manageable. |
