| Product Overview |
|---|

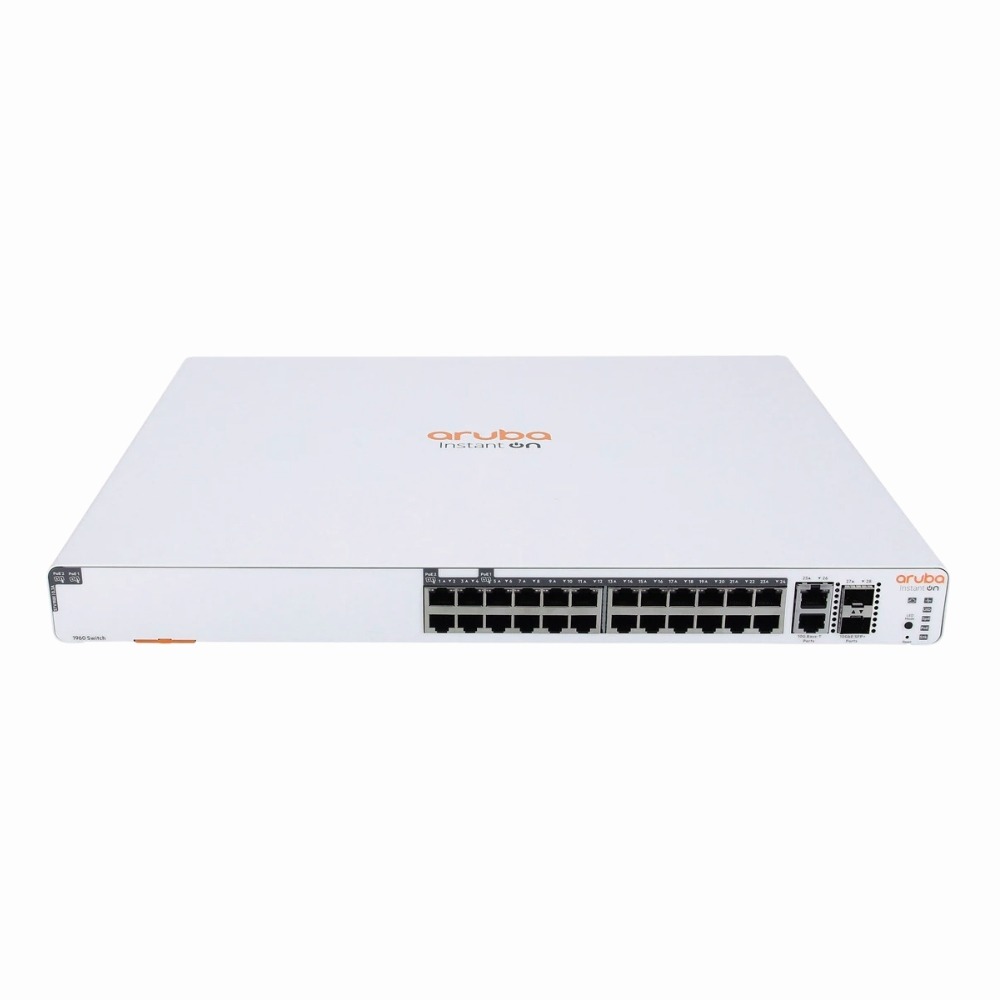

The HP Aruba Instant On 1960 24G is a rack-mountable managed switch that provides high-speed connectivity and power delivery for network devices. It fits into networks requiring flexible port options and advanced routing features, commonly used in business networks that need reliable performance and scalable infrastructure. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL807A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10GBase-T, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 250 Mpps |
| DRAM | 512 MB |
| Flash Memory | 256 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16k |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, VRRP, IGMP |
| Remote Protocols | Yes |
| Remote Management Protocol | HTTPS,SSH,SNMPv1/v2c/v3,HTTP |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Power | 370 W (PoE budget) |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 9.45 inches |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x |
| Product Description |
|---|
The HP Aruba Instant On 1960 24G is a versatile network switch designed to handle the demands of growing small to medium-sized businesses. It offers Power over Ethernet Plus (PoE+) across 24 ports, making it ideal for powering devices like IP phones, wireless access points, and security cameras directly through the network cable. Often found in office environments and branch locations, this switch supports Layer 3 management features that enable routing between VLANs and improve network efficiency. IT managers and network administrators benefit from its combination of speed, power, and control, which helps simplify network setups while ensuring reliable performance. Key Features
This switch is commonly deployed in office networks, retail environments, and campus settings where robust connectivity and power delivery are essential. Its ability to manage traffic efficiently and support high-speed connections makes it a reliable choice for maintaining smooth day-to-day operations. |
