| Product Overview |
|---|

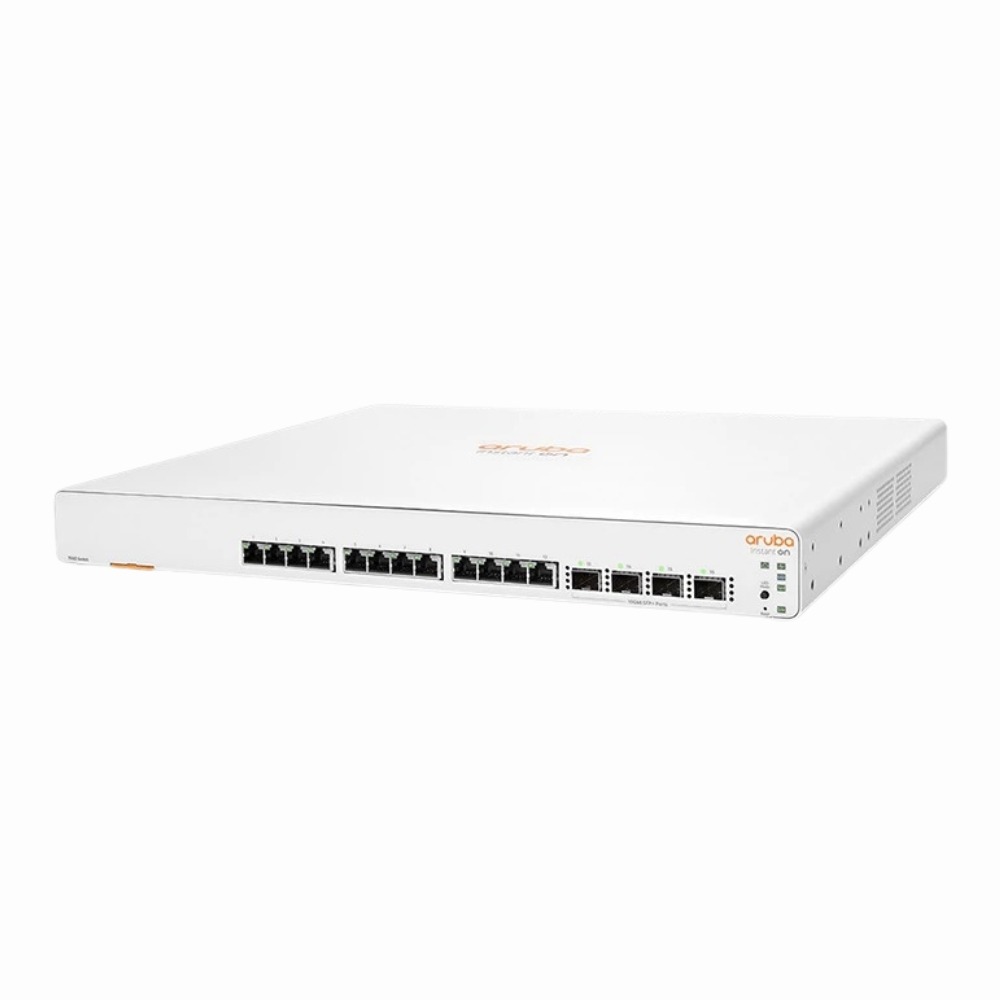

The HP Aruba Instant On 1960 12XGT 4SFP+ is a rack-mountable Layer 3 switch that delivers a combination of high-speed copper and fiber ports. It fits well in environments requiring both fast access and reliable routing, such as small business networks or branch offices. Designed to support mixed device types and network demands, it offers a solid foundation for modern wired networking needs. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL805A#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 12 |
| Number of Ports | 16-Ports |
| Port Type | 10/100/1000Base-T, 10GBase-T, SFP+ |
| Port Speed | 10 Gbps,1 Gbps,100 Mbps |
| UpLink Ports | 4 |
| POE Support | No |
| Switching Capacity | 320 Gbps |
| Switch Forwarding Rate | 625 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | Yes |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 16K |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP, OSPF, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,Mobile App,CLI (Console),SNMP,REST API |
| Remote Management Protocol | SNMPv1/v2/v3,SSH,HTTPS,REST API |
| Routing Protocol | Static,RIP,OSPF,VRRP |
| Physical Characteristics | |
|---|---|
| Dimensions | 1.73 x 17.32 x 9.84 in |
| Weight | 5.00 |
| Operating Temperature | 0°C to 45°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | WEEE, RoHS, CE, FCC, UL |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3an,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3ad,IEEE 802.3az |
| Product Description |
|---|
The HP Aruba Instant On 1960 12XGT 4SFP+ is a high-performance network switch built for small to medium-sized businesses that need reliable, fast connectivity. It’s commonly used in office environments, server rooms, and network closets where robust wired connections are essential. IT professionals and network administrators benefit from its manageable Layer 3 features, which allow for efficient routing and network segmentation. Key Features
This switch typically appears in business networks where there's a mix of high-throughput servers, storage, and user devices. It helps streamline traffic flow and maintain low latency for critical applications. Its ability to integrate fiber connections makes it flexible to grow alongside evolving infrastructure needs. |
