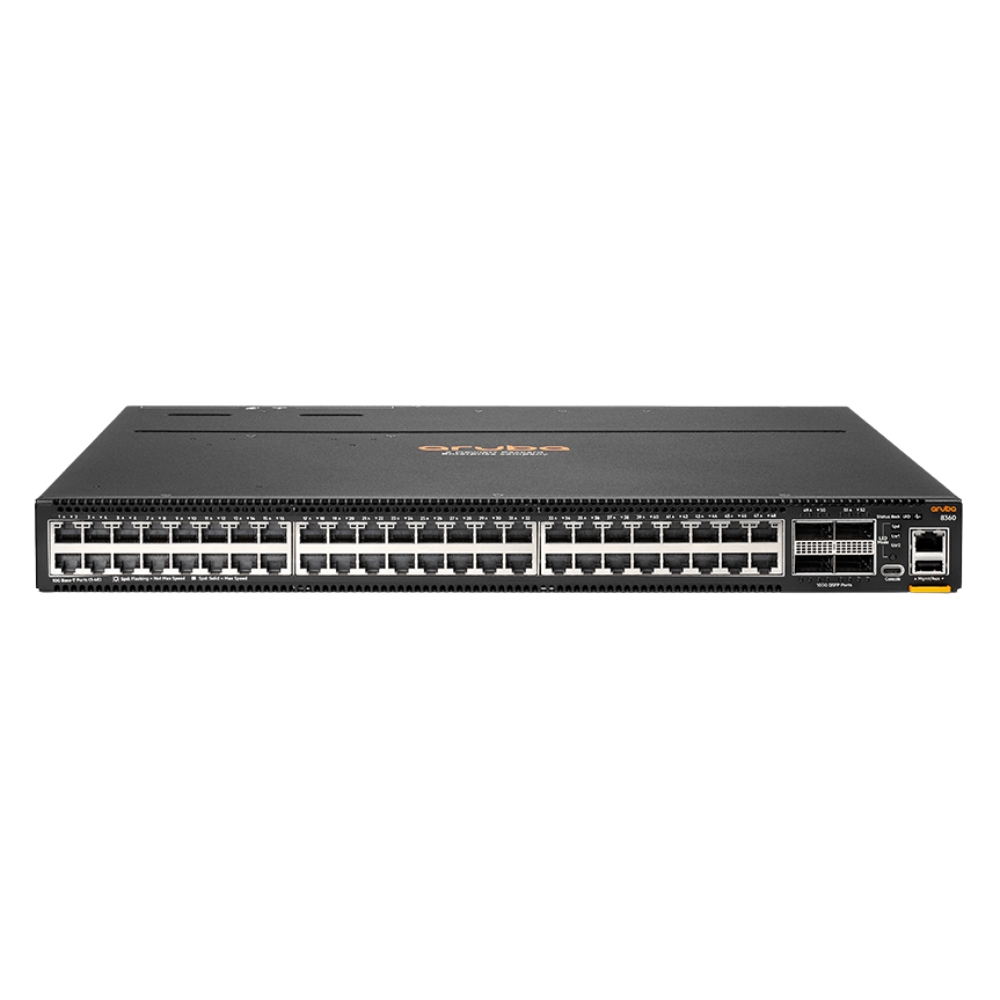

Name: JL706A HP Aruba 8360-48XT4C 48 SFP+ 10GBase-T 4 QSFP28 100G Layer 3 Switch
Brand: HP
SKU: JL706A
Price: 5304.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JL706A HP Aruba 8360-48XT4C combines 48 SFP+ 10GBase-T ports with 4 QSFP28 100GBase-X uplinks, fitting neatly into a 1U rack space. It delivers flexible connectivity options and advanced Layer 3 management to support extensive network deployments. This model is designed to handle demanding network traffic with precision and efficiency.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	100G QSFP28, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,100Gbps
UpLink Ports	4 x QSFP28 (100Gbps)
POE Support	No
Switching Capacity	1.76 Tbps
Switch Forwarding Rate	3437.5 Mpps
DRAM	16 GB
Flash Memory	8 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP+,QSFP28,USB Console,Serial Console (RJ-45)

Performance
Latency	~2.6 µs (typical, depends on packet size and configuration)
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	128000

Management and Configuration
Routing Protocols	Static, RIP, OSPF, BGP, VRRP, PIM-SM, IGMP
Remote Protocols	Yes
Management Interfaces	CLI,Web UI,REST API,SSH,HTTPS,Telnet,SNMP,Console (RJ-45/USB)
Security Features	ACLs,802.1X (dot1x),MAC authentication,IP Source Guard,DHCP Snooping,Dynamic ARP Inspection,Control Plane Policing,Secure Boot
Management Type	In-Band and Out-of-Band
Security	802.1X
Remote Management Protocol	SNMPv1/v2c/v3,REST API,SSH,HTTPS,Telnet
Routing Protocol	Static,OSPF,BGP,RIP,VRRP,PIM-SM

Power & Cooling
Fans	Hot-swappable redundant fans (field-replaceable)
Power	AC (typical power consumption varies by configuration)
Power Supply	Dual hot-pluggable redundant AC power supplies (factory-configurable)

Physical Characteristics
Dimensions	1.7 x 17.4 x 18.0 inches
Weight	3.00
Operating Temperature	0°C to 45°C

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, cULus
Compliant Standards	IEEE 802.1Q,IEEE 802.3,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1X,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3ba

Product Description
The JL706A HP Aruba 8360-48XT4C is a high-performance network switch designed to handle demanding data traffic with reliability and speed. Often found in enterprise networks and data centers, it provides a versatile combination of 48 SFP+ ports and 4 QSFP28 ports to support both 10G and 100G connections. Built for network administrators and IT professionals, this switch supports advanced Layer 3 features to manage routing and traffic efficiently. It is commonly used in environments where robust network infrastructure and precise control over data flows are necessary. Key Features Offers dense 10G SFP+ and 100G QSFP28 port options to accommodate varied network speeds Supports Layer 3 routing protocols enabling scalable network segmentation and traffic management Compact 1U form factor designed for rack mounting to optimize space utilization Manages high-throughput workloads with low latency and reliable performance Includes advanced switching features to enhance network efficiency and resilience This switch plays a key role in maintaining network stability and throughput in complex environments. Its balanced mix of port speeds and Layer 3 capabilities make it a dependable element in modern network architecture.

Use Cases
The JL706A switch is typically deployed in resilient data center racks and enterprise core networks where high-bandwidth and low latency are critical. It suits network teams needing scalable and manageable infrastructure capable of handling diverse traffic patterns. How It's Used: Supports aggregation of multiple 10G access switches in enterprise campus networks Facilitates high-speed uplinks in data center spine-leaf architectures Enables scalable routing in service provider edge environments Manages bandwidth-intensive virtualization and storage networks Integrates into high-density rack deployments requiring compact footprint By providing reliable high throughput and advanced Layer 3 features, this switch helps maintain efficient and scalable network operations. Its design supports evolving network demands without compromising on performance or manageability.
