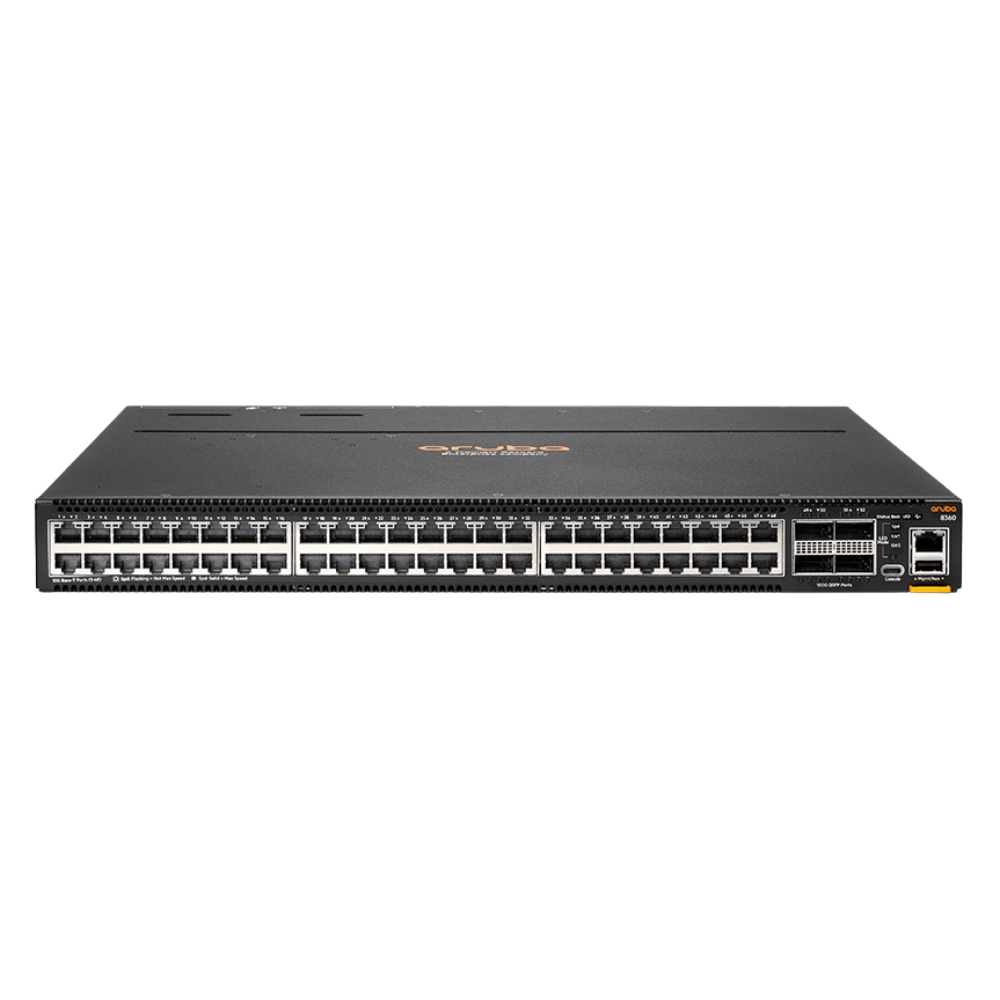

Name: JL706A#ACQ HP Aruba 8360-48XT4C 48 SFP+ 10GBase-T 4 QSFP28 100G Layer 3 Switch
Brand: HP
SKU: JL706A#ACQ
Price: 2302.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JL706A#ACQ HP Aruba 8360-48XT4C switch combines high-density 10G and 100G ports with Layer 3 routing functions to address demanding network environments. It fits into rack-mounted setups, balancing port availability with advanced performance features suitable for enterprise and data center networking needs.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Stackable Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	48
Number of Ports	48-Ports
Port Type	10GBase-T, 100G QSFP28, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,100Gbps
UpLink Ports	4
POE Support	No
Switching Capacity	1760 Gbps
Switch Forwarding Rate	3437500000 pps
DRAM	16 GB
Flash Memory	8 GB
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Yes
Layer Support	Layer 3
Connector Type	SFP+,QSFP28,RJ-45,USB Console,Serial Console (RJ-45)

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	128000

Management and Configuration
Routing Protocols	Static, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR)
Remote Protocols	Yes
Management Interfaces	CLI (SSH/Telnet),Web UI,Serial Console,SNMP,REST API,Aruba Central
Security Features	ACLs,802.1X,MAC Authentication,SSH,SSL,DHCP Snooping,Dynamic ARP Inspection,IP Source Guard
Management Type	In-band and Out-of-band Management
Security	Yes
Remote Management Protocol	SSH,Telnet,HTTP/HTTPS,SNMP,REST
Routing Protocol	Static,OSPF,BGP,VRRP

Power & Cooling
Fans	Hot-swappable redundant cooling fans (2)
Power	100-240VAC, 50-60Hz, up to 400W (max)
Power Supply	Internal AC power supply (100-240VAC), hot-pluggable redundant (1 included)

Physical Characteristics
Dimensions	1.72 x 17.5 x 18.9 inches
Weight	3.00
Operating Temperature	0°C to 40°C (32°F to 104°F)

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1D,IEEE 802.1w,IEEE 802.1X,IEEE 802.3ad

Product Description
The JL706A#ACQ HP Aruba 8360-48XT4C is a high-performance network switch engineered for environments requiring robust Layer 3 routing and high port density. It is commonly found in data centers and enterprise network cores where reliability and speed are critical. Built for IT professionals managing complex network infrastructures, this managed switch supports advanced networking features and is designed to integrate seamlessly within high-demand setups. Key Features High-density 48 SFP+ ports provide versatile 10G connectivity options Four QSFP28 ports enable 100G aggregation and uplink flexibility Advanced Layer 3 capabilities facilitate dynamic routing and traffic management Compact 1U form factor fits standard rack deployments Comprehensive management options support streamlined network control This switch plays a crucial role in delivering consistent network performance and scalability. Its reliable design supports ongoing operations without compromise, contributing to overall infrastructure stability.

Use Cases
This switch is typically deployed in large-scale enterprise networks and data centers where high throughput and advanced routing are essential. Network administrators benefit from its combination of port density and flexible uplink options. How It's Used: Providing 10G connectivity for virtualization hosts and storage clusters in data centers Aggregating traffic in enterprise core networks with high-performance routing requirements Supporting edge computing sites that need scalable and managed Ethernet access Connecting multiple rack servers with high bandwidth and low latency demands Enabling 100G uplinks for backbone network segments or inter-switch links Its robust feature set and reliability support operational efficiency and network scalability, ensuring dependable performance in demanding IT environments.
