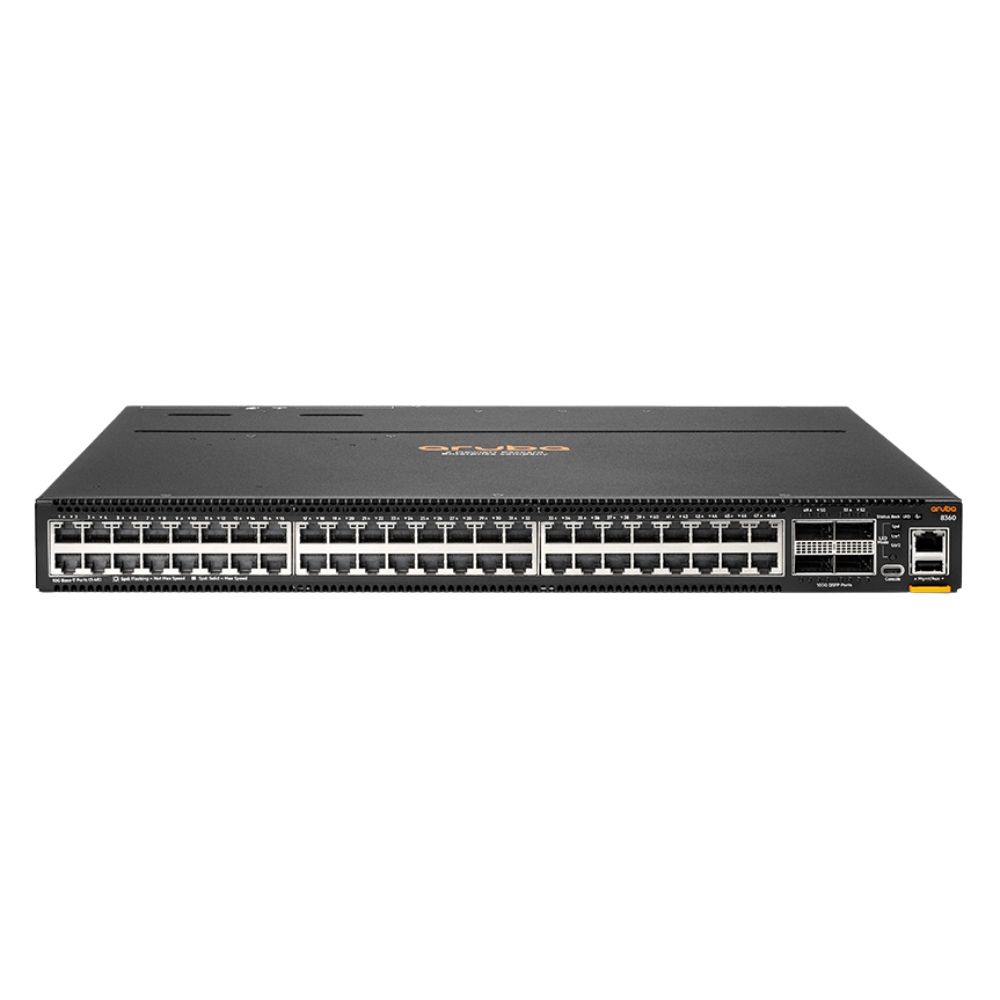

Name: JL706A#A1X HP Aruba 8360-48XT4C 48x10G SFP+ 4x100G QSFP28 Layer 3 Switch
Brand: HP
SKU: JL706A#A1X
Price: 2302.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The JL706A#A1X HP Aruba 8360-48XT4C switch combines a high number of 10G SFP+ ports with 100G QSFP28 uplinks, fitting into a compact 1U rack mount. It delivers advanced Layer 3 management for routing and switching tasks, making it suitable for core and aggregation roles within enterprise network architectures.

General Information
Brand	HP
Condition	Refurbished

Technical Information
Switch Type	Layer 3, Managed Switch, Gigabit Switch
Form Factor	Rack-Mountable
Mount Type	1U Rack
Switch Ports	SFP+,QSFP28,RJ-45
Number of Ports	48-Ports
Port Type	100G QSFP28, RJ-45, SFP+, USB Console, Serial Console (RJ-45)
Port Speed	10Gbps,100Gbps
UpLink Ports	4
POE Support	No
Switching Capacity	1760 Gbps
Switch Forwarding Rate	3437.5 Mpps
VLAN Support	Yes
Max VLANs Supported	1-4094
Stackable	Optional
Layer Support	Layer 3
Connector Type	SFP+,QSFP28,RJ-45,USB (Type-A),RJ-45 Console

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	128K

Management and Configuration
Routing Protocols	Static, OSPF, OSPFv3, BGP, VRRP, PIM-SM, IGMP, Policy-Based Routing (PBR), Route Maps
Remote Protocols	Yes
Management Interfaces	Web GUI,Command Line (CLI),SSH,Telnet,REST API,SNMP
Security Features	802.1X,ACLs,SSH,SSL,MAC ACL,DHCP Snooping,Dynamic ARP Inspection,IP Source Guard,Storm Control
Management Type	In-band,Out-of-band
Remote Management Protocol	SNMP,SSH,HTTPS,HTTP,REST

Power & Cooling
Fans	Hot-swappable redundant fans
Power Supply	Internal AC

Physical Characteristics
Weight	3.00
Operating Temperature	0°C to 40°C

Miscellaneous
Assembly Required	No
Compliance Standards	WEEE, RoHS, CE, FCC, UL
Compliant Standards	IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3ae,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3x

Product Description
The JL706A#A1X HP Aruba 8360-48XT4C switch delivers advanced networking capabilities, combining high-density 10G SFP+ ports with powerful 100G QSFP28 uplinks. Often found in enterprise data centers and network cores, this switch is built for environments requiring reliable Layer 3 switching with robust throughput. Network engineers and IT professionals benefit from its managed features, which offer granular control over routing and traffic management. Its rack-mountable design fits seamlessly into standard server racks. Key Features High port density supports large-scale connectivity with consistent performance Integrated Layer 3 capabilities enhance network segmentation and routing options QSFP28 uplinks provide scalable bandwidth for aggregation or core networking Efficient cooling and power usage suited for 1U rack deployments Flexible management options streamline configuration and monitoring tasks This switch plays an essential role in maintaining network stability and efficient data flow across complex infrastructures. Its reliable hardware and software integration support continuous operation in demanding network environments.

Use Cases
This switch is commonly deployed in enterprise IT networks, data centers, and high-density aggregation layers where high throughput and advanced routing are critical. Its design suits environments with growing bandwidth demands and complex traffic management needs. How It's Used: Aggregating multiple 10G server connections in a data center rack Connecting core switches via 100G QSFP28 uplinks for fast inter-switch communication Supporting Layer 3 routing between different network segments in campus environments Facilitating virtualization environments requiring stable and scalable network performance Integrating with storage clusters that demand low-latency high-bandwidth connectivity By providing a balance of port density, speed, and routing flexibility, the switch helps maintain smooth network operations and scalability. It supports administrators in optimizing traffic flows and adapting to evolving infrastructure needs without compromising reliability.
