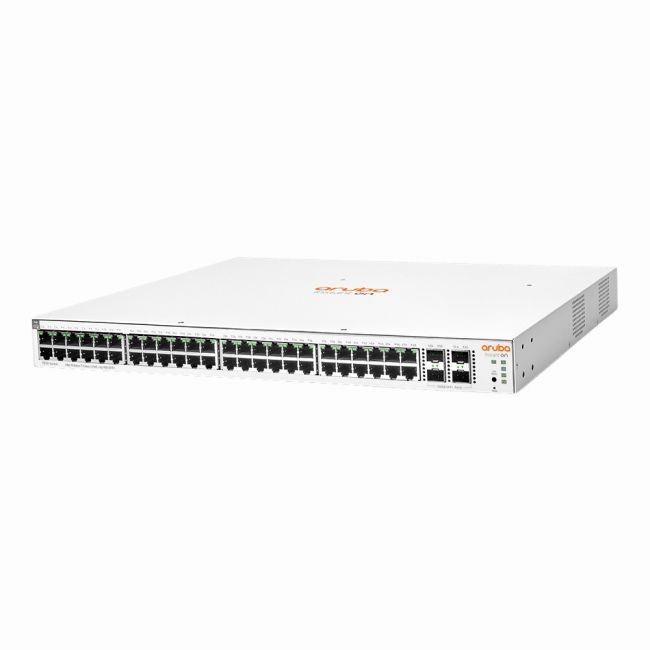

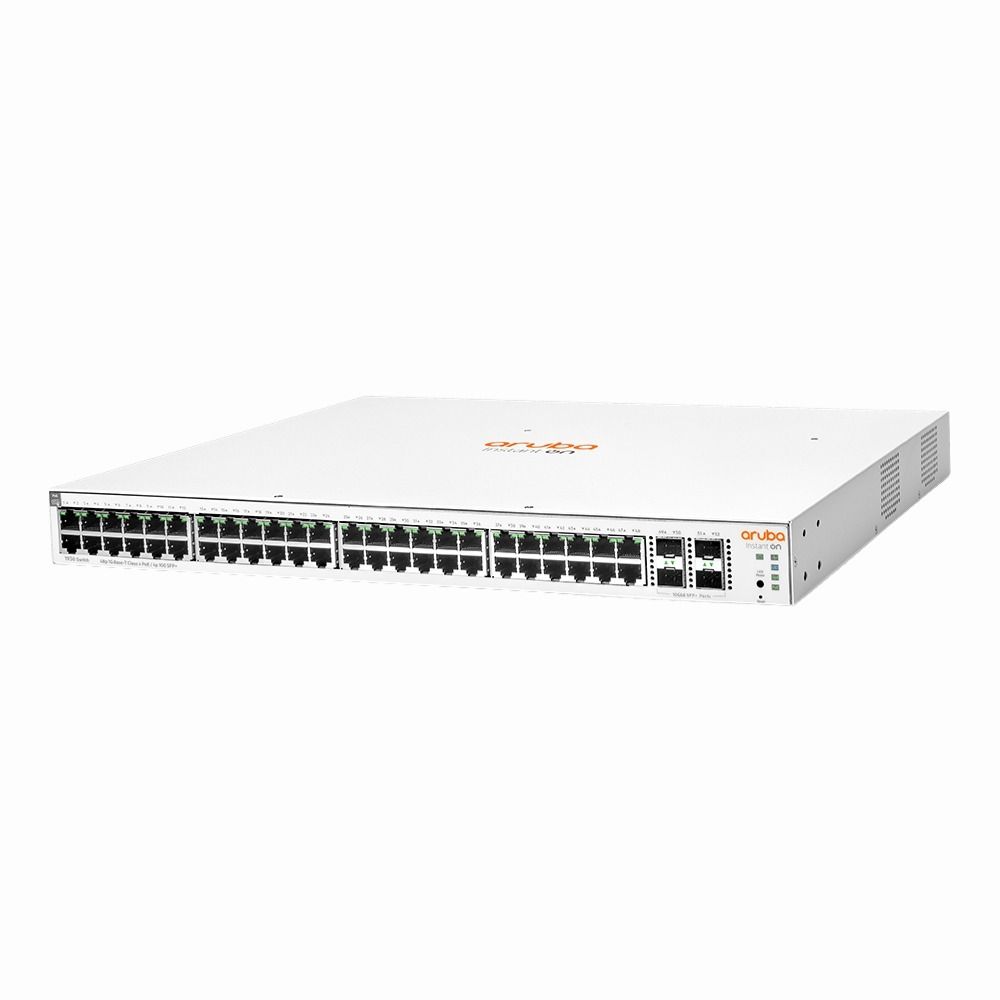

JL686-61101 HP Aruba Instant On 1930 48 x Ports 10/100/1000 Base-T + 4 x Ports SFP+ Layer 3 Rack Mountable 1U Managed Gigabit Ethernet Switch

SKU:

JL686-61101

Weight: 5.00 lbs
Condition: Refurbished
  • 48 Gigabit Ethernet ports for high-density connectivity
  • 4 SFP+ ports supporting 10 GbE uplinks
  • Layer 3 routing capabilities for advanced network management
  • 1U rack-mountable design for space-efficient deployment
In stock

$1,080.00
Product Overview

The HP Aruba Instant On 1930 is a managed Layer 3 gigabit switch that provides a combination of numerous copper ports with high-speed fiber options. It fits into rack setups typically found in office or small-scale data center environments where network segmentation and reliable wired connections are necessary. This switch helps users efficiently route internal traffic while offering flexible switching options for various network configurations.

General Information
Brand HPE
Part Number JL686-61101
Condition Refurbished
Technical Information
Switch Ports 48
Number of Ports 48-Ports
Port Type 10/100/1000Base-T, 10G SFP+
Port Speed 10/100/1000 Mbps, 10 Gbps
UpLink Ports 4 x 10G SFP+
POE Support No
Switching Capacity 176 Gbps
Switch Forwarding Rate 130.95 Mpps
DRAM 512 MB
Flash Memory 256 MB
VLAN Support Yes
Max VLANs Supported 1-4094
Stackable No
Layer Support Layer 3
Connector Type RJ-45, SFP+
Performance
Jumbo Frame Support Up To 9216 Bytes
MAC Address Table Size 16K MAC addresses
Management and Configuration
Routing Protocols Static, RIP
Remote Protocols Yes
Management Interfaces Web UI (HTTP/HTTPS), Mobile App (Aruba Instant On), CLI (SSH), SNMP v1/v2c/v3
Management Type Local Web GUI, Mobile App, SNMP, CLI (SSH)
Security Yes
Remote Management Protocol HTTP, HTTPS, SSH, SNMPv1/v2c/v3, REST API
Routing Protocol Static, RIP
Power & Cooling
Power AC 100-240V, 50/60 Hz; Max power consumption ~45 W
Physical Characteristics
Dimensions 43.6 x 440 x 250 mm
Weight 5.00
Operating Temperature 0°C to 45°C
Miscellaneous
Eco Friendly Yes
Compliance Standards WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X, IEEE 802.3ad (LACP), IEEE 802.3x


Product Description

The HP Aruba Instant On 1930 switch is built to handle the demands of growing networks by providing both reliable connectivity and advanced management features. Commonly found in medium-sized offices or data centers, it supports a mix of wired devices with high-speed ports and uplinks for smooth data flow. IT professionals and network administrators benefit from its Layer 3 capabilities, which simplify routing tasks and improve overall network performance.

Key Features

  • Offers 48 ports with 10/100/1000 Mbps speeds covering most wired devices
  • Includes 4 SFP+ ports to connect high-speed fiber links or uplinks
  • Supports static and dynamic routing to manage traffic within complex setups
  • Managed switch with an intuitive interface for easier configuration and monitoring
  • Compact 1U rack size fits standard cabinets without taking excess space

This switch is often deployed in office environments where reliable wired connections and network segmentation are crucial. Its Layer 3 features help streamline traffic between different VLANs or subnets, benefiting businesses with multiple departments or services. The sturdy design and manageable interface make it a practical choice for IT teams aiming to balance performance with ease of use.
