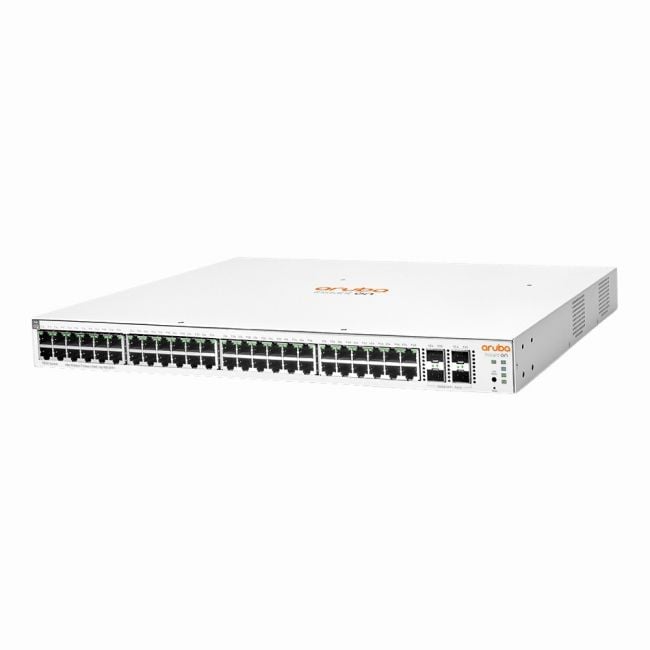

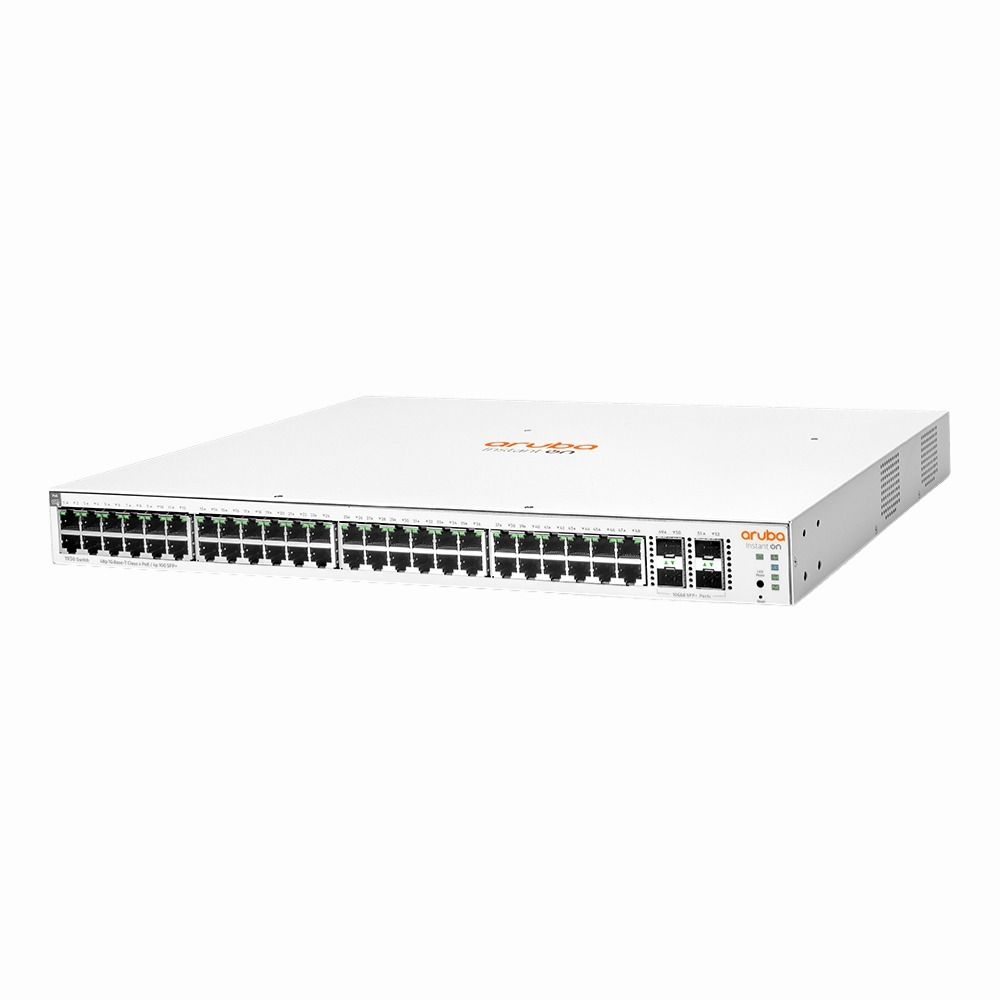

JL686-61001 HP Aruba Instant On 1930 Series 1930 48G Class4 PoE 48 x Ports PoE+ 1000Base-T + 4 x Ports SFP+ Layer 3 Managed 1U Rack-Mountable Managed Gigabit Ethernet Network Switch

SKU:
JL686-61001
Weight: 5.00 lbs
Condition: Refurbished
  • 48 Gigabit Ethernet ports with PoE+ support for powered devices
  • 4 SFP+ ports enabling 10Gbps uplinks for high-speed connections
  • Layer 3 managed switch offering advanced network routing features
  • Compact 1U rack-mountable design suitable for server rooms
In stock

$1,199.00

Product Overview

The HP Aruba Instant On 1930 48G Class4 PoE switch powers and connects numerous devices in office and campus settings. It fits where a managed Layer 3 switch is needed for handling routing alongside PoE capabilities. With multiple Gigabit ports and high-speed uplinks, it integrates well into growing business networks that demand both performance and manageability.

General Information

Brand HPE
Part Number JL686-61001
Condition Refurbished

Technical Information

Switch Ports 48
Number of Ports 48-Ports
Port Type 10/100/1000Base-T, 10G SFP+
Port Speed 10/100/1000 Mbps
UpLink Ports 4 x 10G SFP+
POE Support PoE+
Switching Capacity 176 Gbps
Switch Forwarding Rate 130.95 Mpps
VLAN Support Yes
Max VLANs Supported 1-4094
Stackable No
Layer Support Layer 3
Connector Type RJ-45,SFP+

Performance

Jumbo Frame Support Up To 9216 Bytes

Management and Configuration

Routing Protocols Static, RIP
Remote Protocols Cloud (Aruba Instant On),Web GUI,Mobile App,CLI
Management Interfaces Web GUI,CLI,SNMP,Mobile App,Cloud-based
Security Features 802.1X,RADIUS authentication,Access Control Lists (ACLs),MAC authentication,DHCP snooping,ARP inspection,Storm control,DoS protection
Remote Management Protocol SNMPv1/v2c/v3,HTTP,HTTPS,SSH,REST API
Routing Protocol Static,RIP

Power & Cooling

Power 370W PoE budget (maximum PoE power budget)

Physical Characteristics

Dimensions 44 x 440 x 292 mm
Weight 5.00
Operating Temperature 0°C to 45°C

Miscellaneous

Eco Friendly Yes
Compliance Standards WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3af,IEEE 802.3at


Product Description

The HP Aruba Instant On 1930 48G Class4 PoE switch is built for small to medium businesses that need a reliable and efficient network core. It provides power and data connectivity for multiple devices like IP phones, cameras, and wireless access points in office or campus environments.

Often found in workspaces requiring scalability and robust management, this switch combines Gigabit Ethernet access ports with 10Gbps uplink capabilities. IT professionals and network managers benefit from its straightforward management and Layer 3 routing functions.

Key Features

  • Delivers Power over Ethernet+ to up to 48 devices, simplifying installation
  • Includes 4 SFP+ slots for flexible, high-speed uplinks or stacking
  • Supports static and dynamic routing protocols to optimize network traffic
  • Offers web-based and CLI management options for different user preferences
  • Rack-mountable form factor fits standard 19-inch racks efficiently

This switch is typically deployed in office networks, branch locations, or small data centers where reliable connectivity and power delivery are critical. It plays a key role in maintaining smooth network operations, reducing cable clutter, and facilitating growth.


Use Cases

The HP Aruba Instant On 1930 48G Class4 PoE switch is designed for environments requiring robust, scalable network infrastructure with integrated power delivery. It is particularly beneficial for mid-sized enterprises, campus networks, and branch offices that manage diverse connected devices needing both data and power over Ethernet.

How It's Used:

  • Deploying in SMB office networks to power VoIP phones, wireless access points, and security cameras while managing inter-VLAN routing.
  • Supporting campus backbone connectivity with high-speed 10Gbps uplinks to core switches for streamlined data flow across multiple buildings.
  • Facilitating edge computing setups where localized Layer 3 routing optimizes traffic handling and reduces latency.
  • Integrating into data closet rack deployments to consolidate power and network management for IoT sensors and collaboration devices.
  • Enabling remote branch offices to maintain full network segmentation and secure, high-speed connectivity back to headquarters.

This switch enables operational efficiency by combining power delivery and advanced routing in a compact form factor, allowing IT teams to scale network segments easily. Its Layer 3 capabilities enhance network performance and segmentation, essential for maintaining service quality in dynamic business environments.
