| Product Overview |
|---|

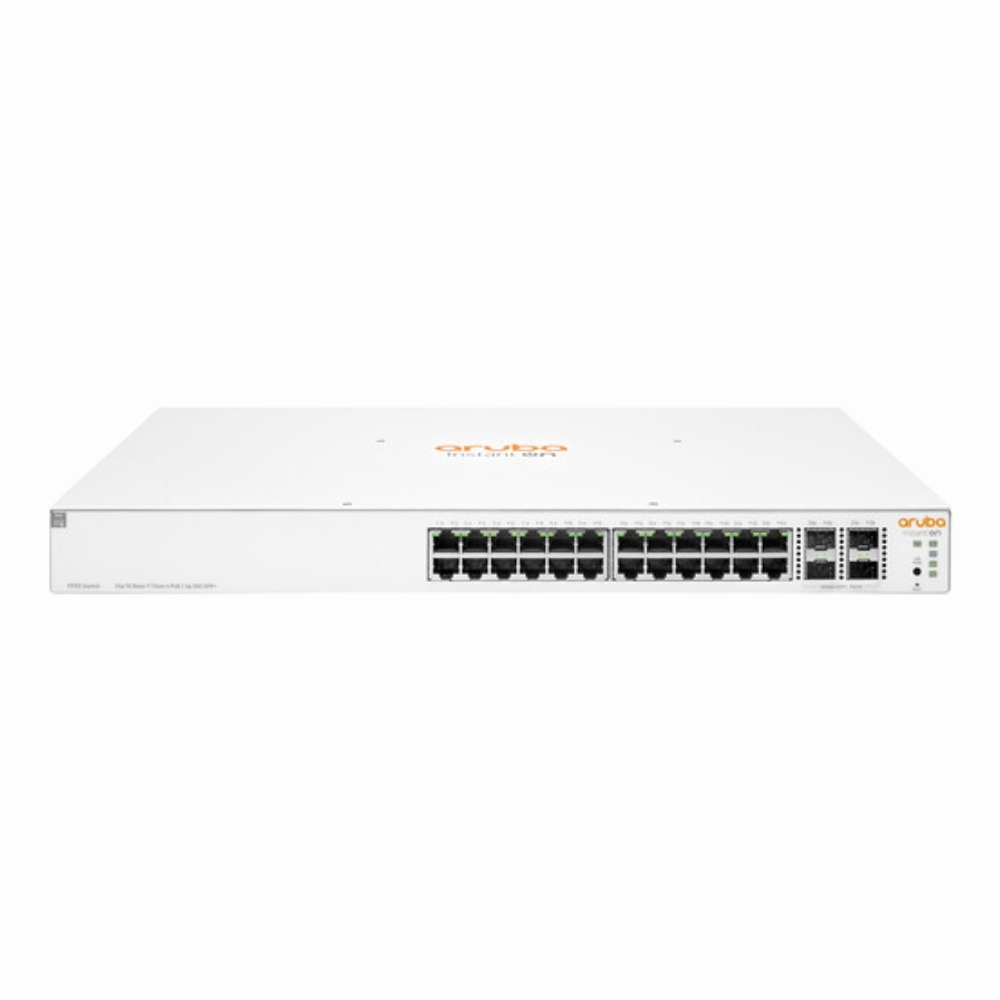

The HP Aruba Instant On 1930 24G switch is designed to offer dependable gigabit connectivity with PoE+ support and Layer 3 management. It fits well into business networks requiring robust power delivery to devices and flexible uplink options through its SFP+ ports, ensuring high-speed data transfer and efficient traffic routing. |
| General Information | |
|---|---|
| Brand | Aruba |
| Part Number | JL684B#ABA |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24 |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, SFP+ |
| Port Speed | 10/100/1000Base-T |
| UpLink Ports | 4 |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.24 Mpps |
| DRAM | 256 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 3 |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8000 |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI, Aruba Instant On cloud/mobile app, SNMP, SSH, CLI |
| Security Features | 802.1X authentication,RADIUS/TACACS+,Access Control Lists (ACLs),DHCP Snooping,IP Source Guard,ARP Inspection,Storm Control,MAC address filtering,DoS protection |
| Remote Management Protocol | HTTP,HTTPS,SSH,SNMPv1/v2c/v3,Syslog,TRAP,RMON |
| Routing Protocol | Static,RIP |
| Power & Cooling | |
|---|---|
| Power | Max PoE budget: 370 W; AC input 100-240 VAC, 50/60 Hz |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Compliance Standards | RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at |
| Product Description |
|---|
The HP Aruba Instant On 1930 24G switch provides reliable and fast network connectivity with 24 RJ-45 Gigabit ports equipped with Class 4 PoE+, enabling power delivery to devices like IP phones and wireless access points. It’s commonly found in small to medium-sized businesses where centralized network management and high-speed connections are needed. Built for IT professionals and network administrators, this switch offers Layer 3 routing features that help optimize traffic flow and improve network efficiency. Its 4 SFP+ ports allow for flexible uplink options with 10Gbps speeds, ideal for expanding network infrastructure or linking multiple switches. Key Features
Typically deployed in office networks and data centers, this switch helps maintain smooth communication between multiple devices and servers. Its managed features provide the control needed to adapt network settings as demands evolve, making it a practical choice for growing businesses. |
