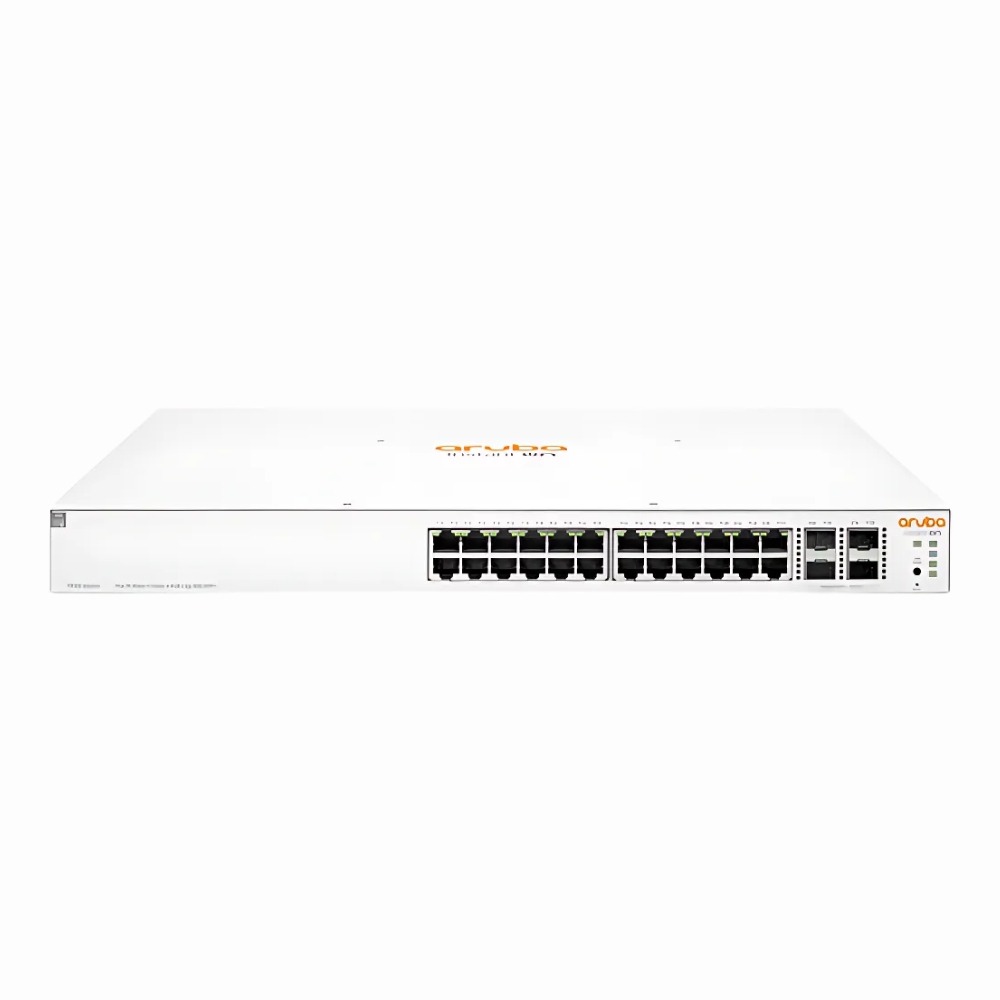

Name: JL684-61201 HP Aruba Instant On 1930 Series 24-Ports 10/100/1000Base-T RJ-45 PoE+ Class 4 4-Ports 10GBase-X SFP+ Gigabit Ethernet Switch
Brand: HPE
SKU: JL684-61201
Price: 520.00 USD
Availability: InStock
Rating: 4.8 (119 reviews)

Product Overview
The HP Aruba Instant On 1930 Series switch delivers a reliable, managed Gigabit Ethernet solution with Power over Ethernet capabilities for small business networks. It's commonly used to connect and power a variety of devices while providing fast uplinks through its 10G SFP+ ports, fitting well in offices or branch locations needing efficient and scalable networking.

General Information
Brand	HPE
Part Number	JL684-61201
Condition	Refurbished

Technical Information
Switch Ports	24 x 10/100/1000Base-T RJ-45
Number of Ports	24-Ports
Port Type	10/100/1000Base-T, 10G SFP+
Port Speed	10/100/1000Base-T,10GBase-X
UpLink Ports	4 x 10G SFP+
POE Support	PoE+
Switching Capacity	128 Gbps
Switch Forwarding Rate	250 Mpps
DRAM	256 MB
Flash Memory	128 MB
VLAN Support	Yes
Max VLANs Supported	1-4094
Layer Support	Layer 2, Layer 3 Lite
Connector Type	RJ-45,SFP+

Performance
Jumbo Frame Support	Up To 9216 Bytes
MAC Address Table Size	8K

Management and Configuration
Routing Protocols	Static
Remote Protocols	Yes
Management Interfaces	Web GUI, Aruba Instant On mobile app, SSH, SNMP
Security Features	802.1X, ACLs, MAC-based authentication, Port security, DoS protection, Storm control
Remote Management Protocol	HTTPS, SSH, SNMP
Routing Protocol	Static

Power & Cooling
Power	370W PoE budget, 100-240 VAC, 50/60 Hz

Physical Characteristics
Dimensions	44 x 440 x 220 mm (H x W x D) (1U)
Weight	5.00
Operating Temperature	0°C to 40°C

Miscellaneous
Eco Friendly	Yes
Compliance Standards	WEEE, RoHS, CE, FCC, UL, TUV, cULus
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Product Description
The HP Aruba Instant On 1930 Series switch is built for expanding wired network capabilities in business environments. It provides high-speed connectivity and efficient power delivery to devices like IP phones, cameras, and wireless access points. Often found in small to medium-sized offices, retail locations, and branch networks, this switch supports seamless integration with existing infrastructure while delivering reliable performance. Key Features Efficiently powers PoE-enabled devices with up to Class 4 PoE+ support on all RJ-45 ports Offers four 10G SFP+ ports for high-bandwidth uplinks and future-proofing network growth Includes Layer 2 switching capabilities with simple management options suited for IT staff or small business owners Supports VLANs and QoS settings to optimize network traffic and security Designed to reduce cable clutter by combining power and data over a single cable This switch is typically deployed in environments where reliable data and power delivery are crucial, like office floors, conference rooms, or retail floors. It helps simplify setups by cutting down on separate power sources and supports steady network operations.

Use Cases
The HP Aruba Instant On 1930 Series 24-Port managed switch is ideal for small to medium business networks that require reliable connectivity and Power over Ethernet capabilities. It serves environments where multiple devices such as IP phones, wireless access points, and security cameras need both power and data connectivity, particularly in office or branch settings demanding scalable, high-performance networking solutions. How It's Used: Connecting and powering VoIP phones and wireless access points in SMB office environments to reduce cabling complexity. Providing high-speed uplinks in branch office networks via 10G SFP+ ports to support data-intensive applications. Supporting edge computing deployments in remote sites where reliable PoE+ power delivery is essential. Integrating IP surveillance camera systems with centralized management in small to medium enterprise facilities. Implementing network segmentation and traffic management for multi-department setups within a campus office. This switch enhances operational efficiency by consolidating power and data delivery, while its managed features allow IT teams to scale network capacity and maintain performance as business needs evolve. Its flexible uplink options and PoE+ support enable streamlined deployments in dynamic and growing environments.
