| Product Overview |
|---|

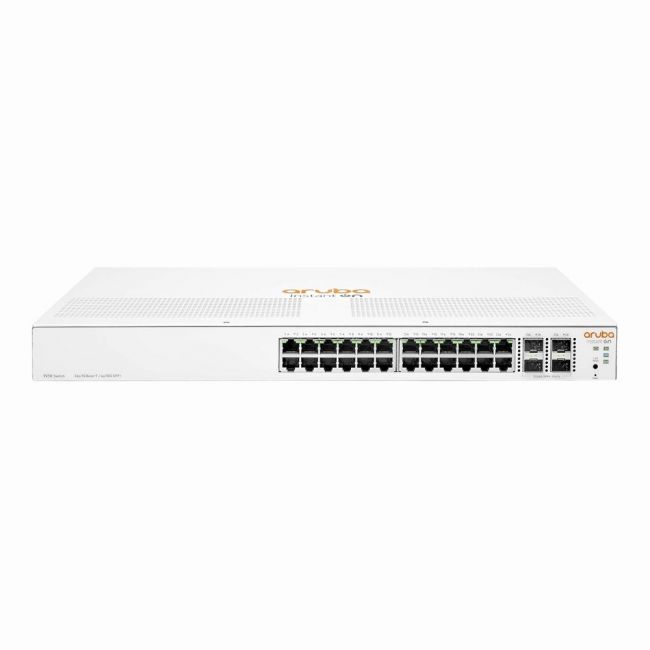

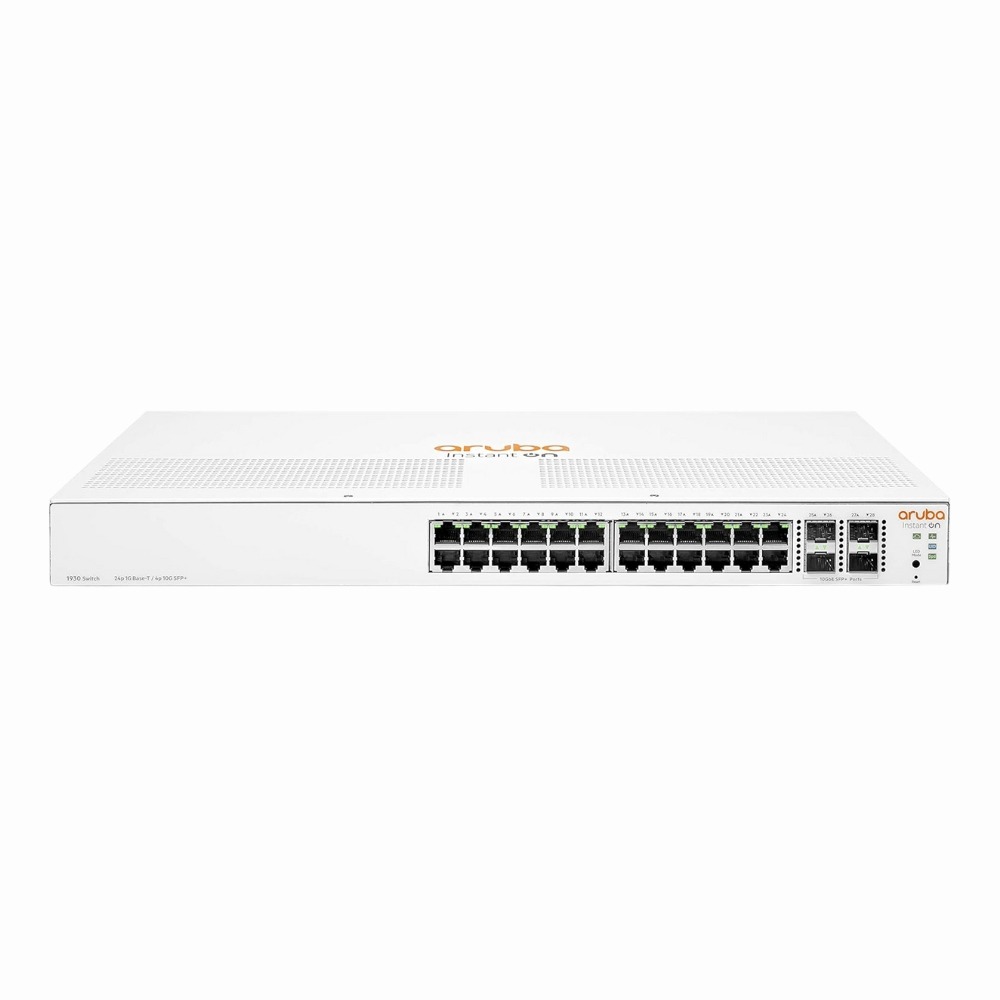

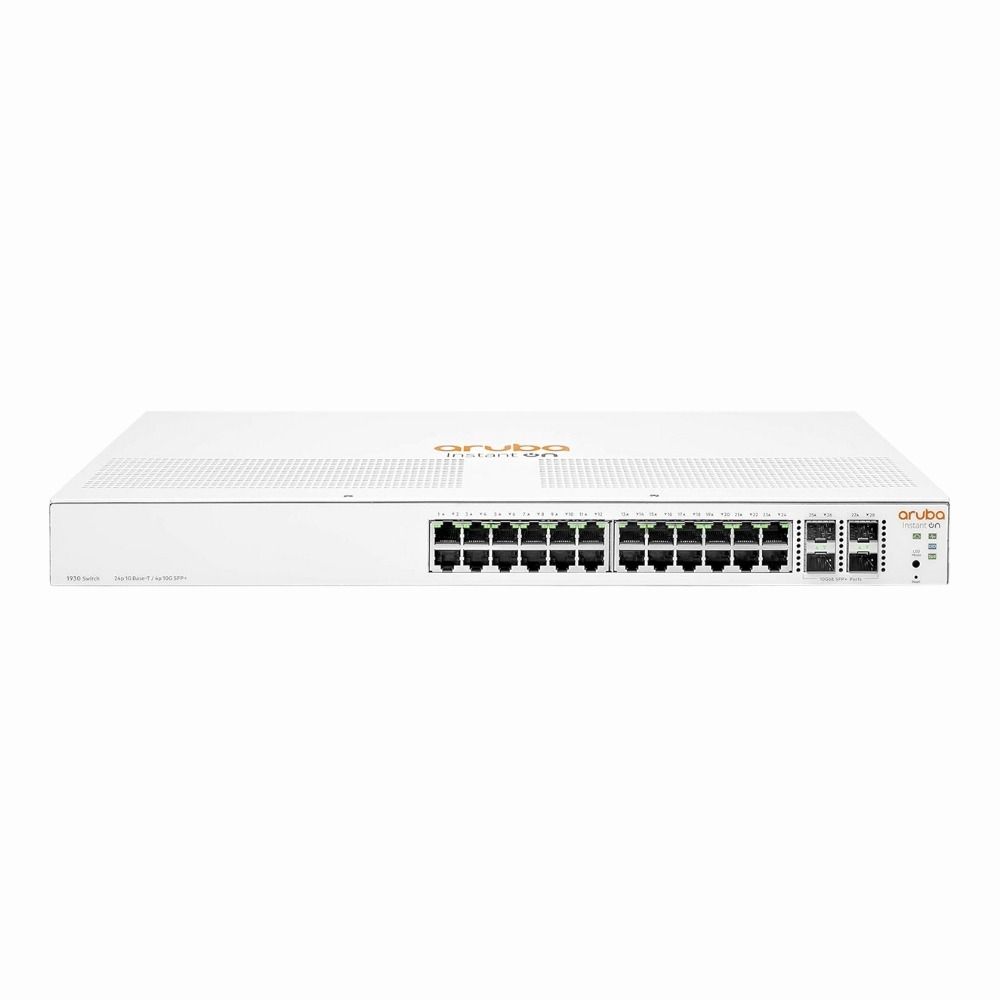

The HP Aruba Instant On 1930 Series 24-port switch combines gigabit Ethernet connectivity with PoE+ power delivery and 10G fiber uplinks to serve as a dependable network hub for small to medium businesses. It fits well in office setups where multiple networked devices need both data and power, offering straightforward management and solid performance without unnecessary complexity. |
| General Information | |
|---|---|
| Brand | HPE |
| Part Number | JL683-61201 |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 24-Ports |
| Number of Ports | 24-Ports |
| Port Type | 10/100/1000Base-T, 10G SFP+ |
| Port Speed | 10/100/1000Base-T,10GBase-X |
| UpLink Ports | 4 x 10G SFP+ |
| POE Support | PoE+ |
| Switching Capacity | 128 Gbps |
| Switch Forwarding Rate | 95.2 Mpps |
| DRAM | 512 MB |
| Flash Memory | 128 MB |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Layer Support | Layer 2, Layer 3 Lite |
| Connector Type | RJ-45,SFP+ |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8K (8192) entries |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, RIP |
| Management Interfaces | Web GUI,Mobile App (Aruba Instant On),SNMP,SSH,HTTPS |
| Security Features | 802.1X,RADIUS,ACLs,DHCP Snooping,MAC Filtering,Storm Control,BPDU Guard,DoS Protection |
| Remote Management Protocol | HTTPS,SSH,SNMP |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Power | 370 W (total PoE budget) |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3x,IEEE 802.1Q,IEEE 802.1p,IEEE 802.3af,IEEE 802.3at |
| Product Description |
|---|
The HP Aruba Instant On 1930 Series switch offers a versatile and powerful solution for managing network traffic in small to medium-sized businesses. Commonly found in office environments, it combines multiple gigabit Ethernet ports with fiber uplink capabilities to support a variety of devices and applications. Built for IT professionals and network administrators, this switch provides easy management alongside robust features, making it suitable for setups that require both wired connectivity and power delivery to devices like IP phones and wireless access points. Key Features
This switch is often deployed in office networks where multiple devices require fast and reliable connectivity along with power over Ethernet. It helps simplify infrastructure by reducing the need for extra power sources and allows network managers to handle traffic efficiently. By providing both high-speed data transfer and power delivery in a compact design, it supports the evolving needs of business networks without adding complexity. |
