| Product Overview |
|---|

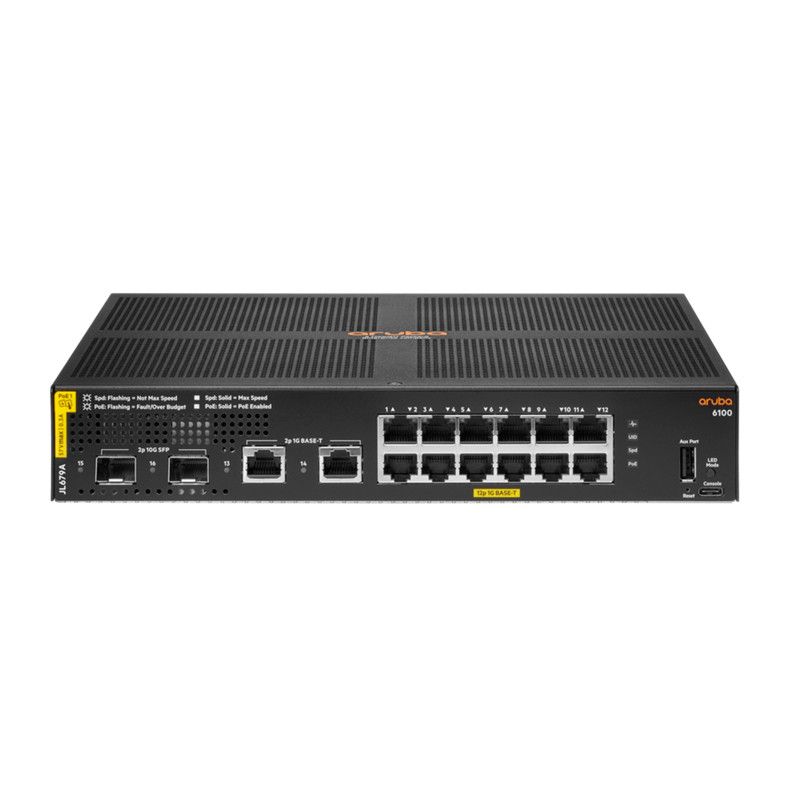

The HP Aruba CX 6100 12G PoE+ Gigabit Network Switch provides essential networking and power capabilities tailored for small office and branch network environments. It combines reliable Gigabit Ethernet connections with PoE+ power delivery to support various networked devices, making it a practical choice for setups that require both connectivity and device powering without added complexity. |
| General Information | |
|---|---|
| Brand | Aruba Networks |
| Part Number | JL679A |
| Condition | Refurbished |
| Technical Information | |
|---|---|
| Switch Ports | 12 |
| Number of Ports | 12-Ports |
| Port Type | 10/100/1000Base-T, SFP, USB Console, Serial Console (RJ-45) |
| Port Speed | 10/100/1000 Mbps |
| UpLink Ports | 2 SFP (1G) |
| POE Support | PoE+ |
| Switching Capacity | 24 Gbps (non‑blocking backplane, 12 x 1Gb ports full duplex) |
| Switch Forwarding Rate | 46.875 Mpps (64‑byte packets, theoretical at 24 Gbps) |
| VLAN Support | Yes |
| Max VLANs Supported | 1-4094 |
| Stackable | No |
| Layer Support | Layer 2 |
| Connector Type | RJ-45,SFP |
| Performance | |
|---|---|
| Jumbo Frame Support | Up To 9216 Bytes |
| MAC Address Table Size | 8192 (approx. 8K MAC address table) |
| Management and Configuration | |
|---|---|
| Routing Protocols | Static, VRRP, IGMP |
| Remote Protocols | Yes |
| Management Interfaces | Web GUI,CLI,SNMP,SSH,REST API,Aruba Central |
| Security | 802.1X / MAC authentication (RADIUS) |
| Remote Management Protocol | SNMP,SSH,HTTPS,REST API |
| Routing Protocol | Static |
| Power & Cooling | |
|---|---|
| Fans | Fanless |
| Physical Characteristics | |
|---|---|
| Weight | 5.00 |
| Operating Temperature | 0°C to 40°C |
| Miscellaneous | |
|---|---|
| Eco Friendly | Yes |
| Compliance Standards | WEEE, RoHS, CE, FCC, UL, TUV, cULus |
| Compliant Standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1X,IEEE 802.3ad |
| Product Description |
|---|
The HP Aruba CX 6100 12G PoE+ Gigabit Network Switch is built for small to medium-sized business environments that need reliable, efficient network connectivity. This switch is often found in office settings, retail outlets, and branch locations where powering devices like IP phones, cameras, and wireless access points directly from the switch simplifies deployment. Designed for IT teams that require straightforward management and dependable performance, it offers PoE+ capability to power a range of devices without extra cabling. Its compact size fits well in tight spaces, making it a practical choice for various networking setups. Key Features
This switch is typically deployed in business environments that handle moderate network traffic and require reliable power delivery to end devices. It plays a key role in simplifying network infrastructure by reducing the need for separate power supplies and limiting clutter. By integrating this switch into a network, organizations can expect straightforward connectivity with enough power and performance to support everyday communication and security devices seamlessly. |
